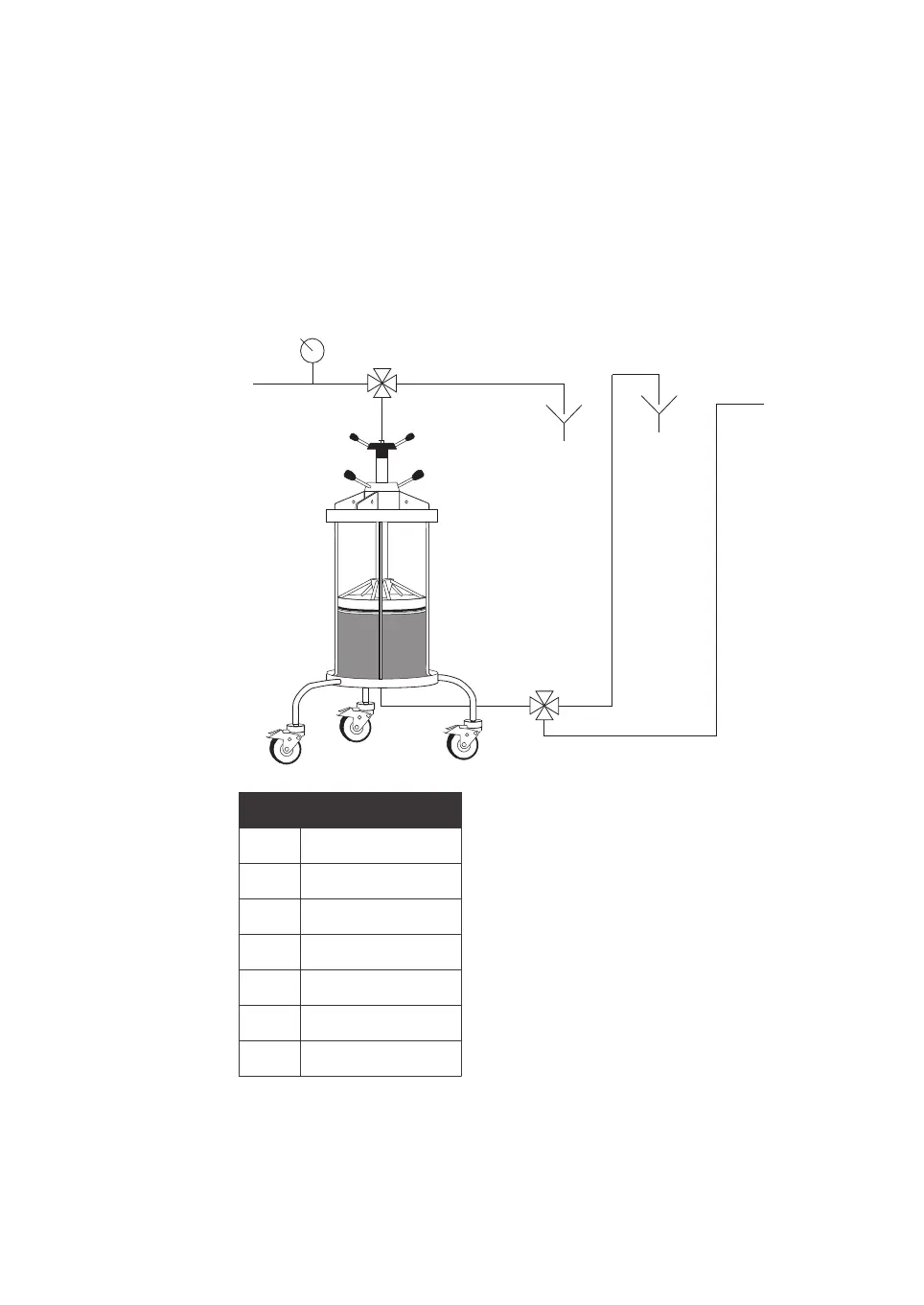

Column setup
T
he column is fitted with a 4-port 4-way valve on the adapter inlet (B), and a 4-port 2-
way valve on the bottom outlet.
• One port (A) on the top has a pressure gauge followed by tubing connected to a
pump. Another port (C) is directed to the waste for purging the pump and column.
• The bottom valve is equipped with tubing on a port perpendicular to the column
outlet that will be directing flow to waste, or recycling water back to the tank.
A
B
C
1
2
3
4
5
6
7
Flow Description
1 From pump
2 Pressure gauge
3 4-port, 4-way valve
4 Drain
5 4-port, 2-way valve
6 Drain
7 Return
