xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
86
802.1p Default Priority

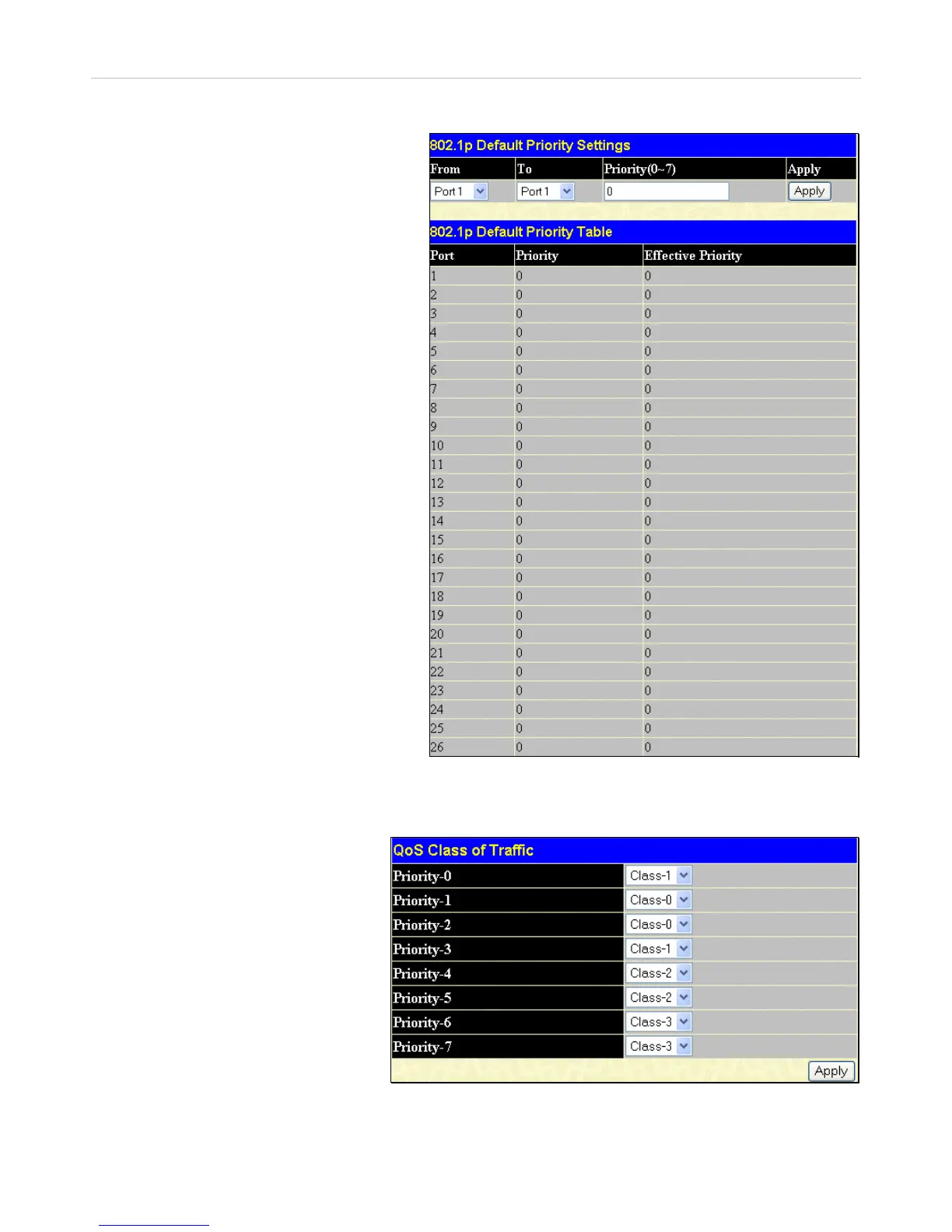

Figure 6- 54. 802.1p Default Priority Settings window
802.1p User Priority
Figure 6- 55. QoS Class of Traffic window
The Switch allows the assignment of a default 802.1p
priority to each port on the Switch. This window allows
you to assign a default 802.1p priority to any given port
on the Switch. The priority queues are numbered from
0, the lowest priority, to 7, the highest priority. Click
Apply to implement your settings. Click
Configuration > QoS > 802.1p Default Priority, to
view the window shown to the right.
The DES-3500 Series switches allows the
assignment of a user priority to each of the
802.1p priorities. Once you have assigned a
priority to the port groups on the Switch, you can
then assign this Class to each of the 4 levels of
802.1p priorities. Click Apply to set your
changes. To view this window click,
Configuration > QoS > 802.1p User Priority.
