xStack

DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

228

Cable Diagnostic

The following window displays parameters configured for and about the Cable Diagnostics currently set on the Switch. To view

this window click, Monitoring > Cable Diagnostic.

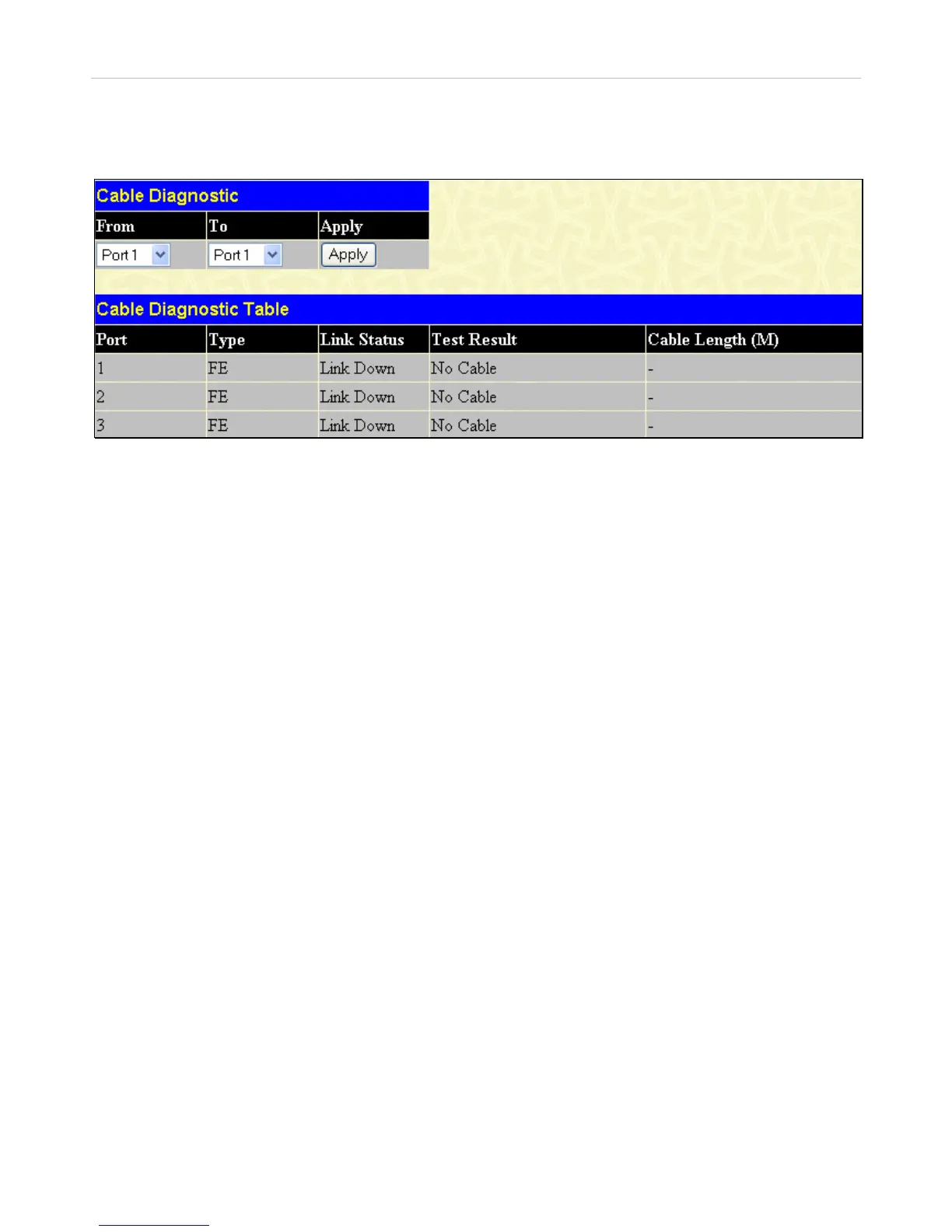

Figure 8- 26. Cable Diagnostic Table window

User Manual1
