xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
242

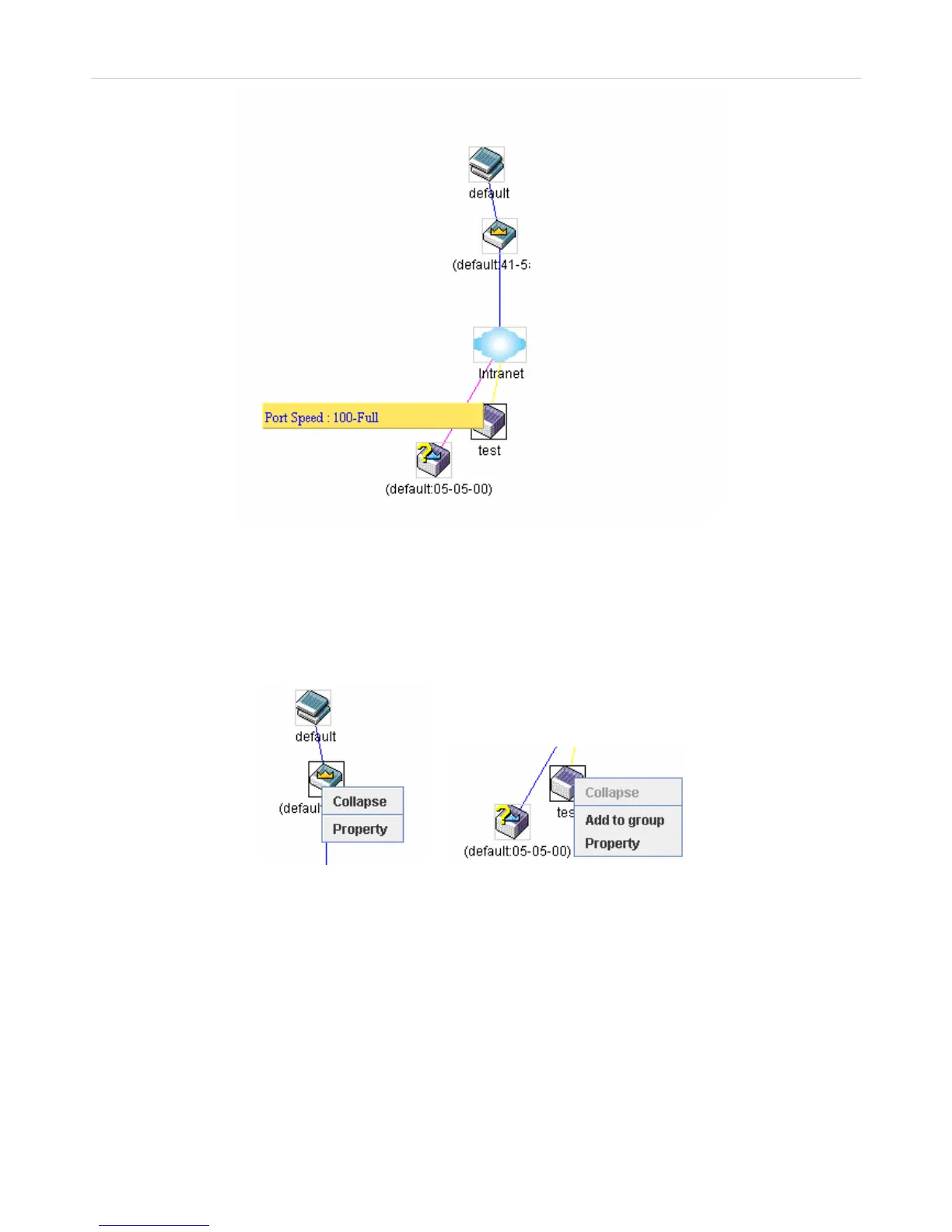

Figure 10- 7. Port Speed Utilizing the Tool Tip
Right-Click
Right clicking on a device will allow the user to perform various functions, depending on the role of the Switch in the SIM group
and the icon associated with it.
Group Icon
Figure 10- 8. Right-Clicking a Group Icon
The following options may appear for the user to configure:
• Collapse - to collapse the group that will be represented by a single icon.
• Expand - to expand the SIM group, in detail.
• Property - to pop up a window to display the group information.
