DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
223
VLAN Status
This allows the VLAN status for each of the Switch's ports to be viewed by VLAN. This window displays the ports on the Switch
that are currently Egress or Tag ports. To view the following table, click Monitoring > VLAN Status.

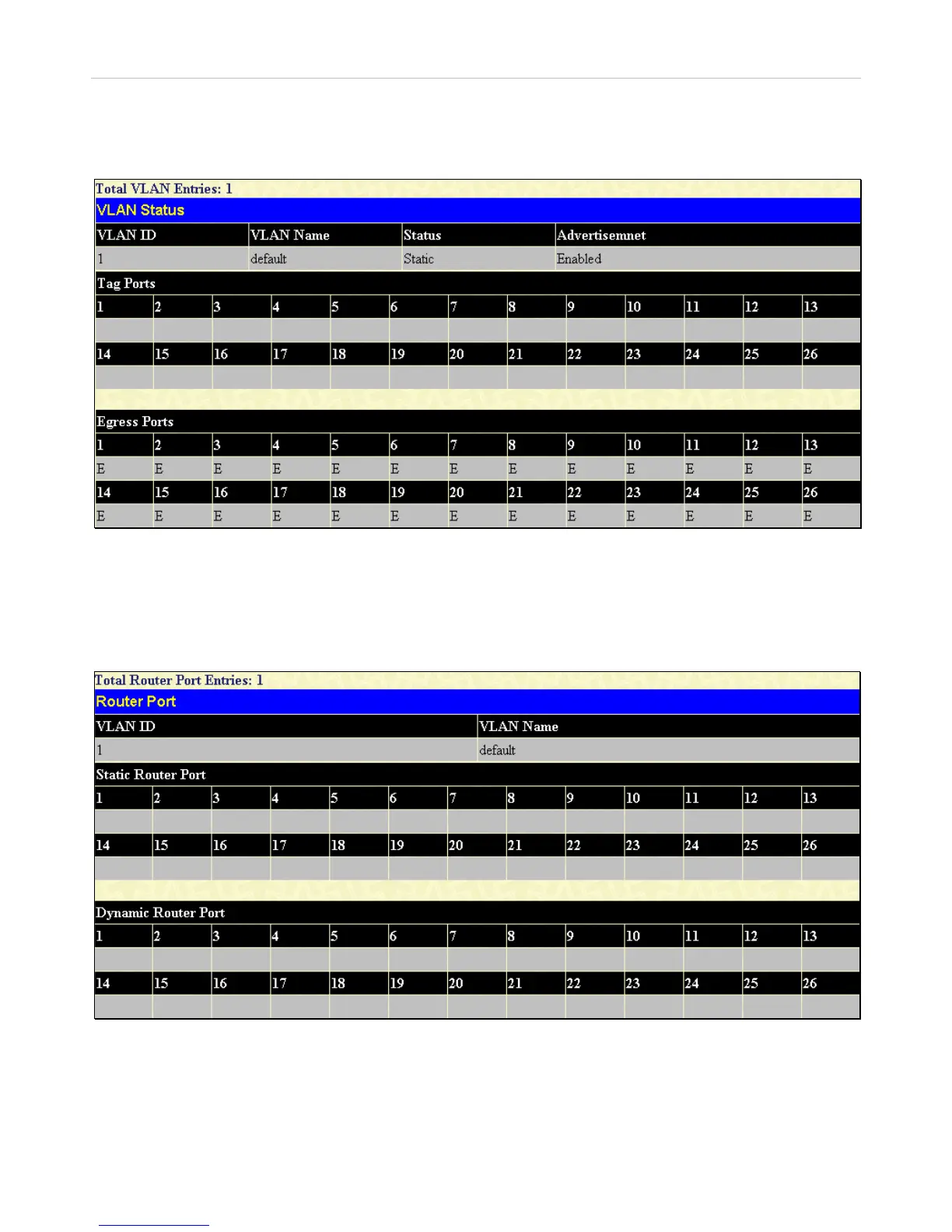

Figure 8- 20. VLAN Status window
Router Port
This displays which of the Switch's ports are currently configured as router ports. A router port configured by a user (using the
console or Web-based management interfaces) is displayed as a static router port, designated by S. D designates a router port that
is dynamically configured by the Switch. To view the following window, click Monitoring > Router Port.
Figure 8- 21. Router Port window
Port Access Control
The following windows are used to monitor 802.1x statistics of the Switch, on a per port basis.
