xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
26
Switch Information
The subsections below describe how to change some of the basic settings for the Switch such as changing IP settings and
assigning user names and passwords for management access privileges, as well as how to save the changes and restart the Switch.
Click, Configuration > Switch Information to view the following window.

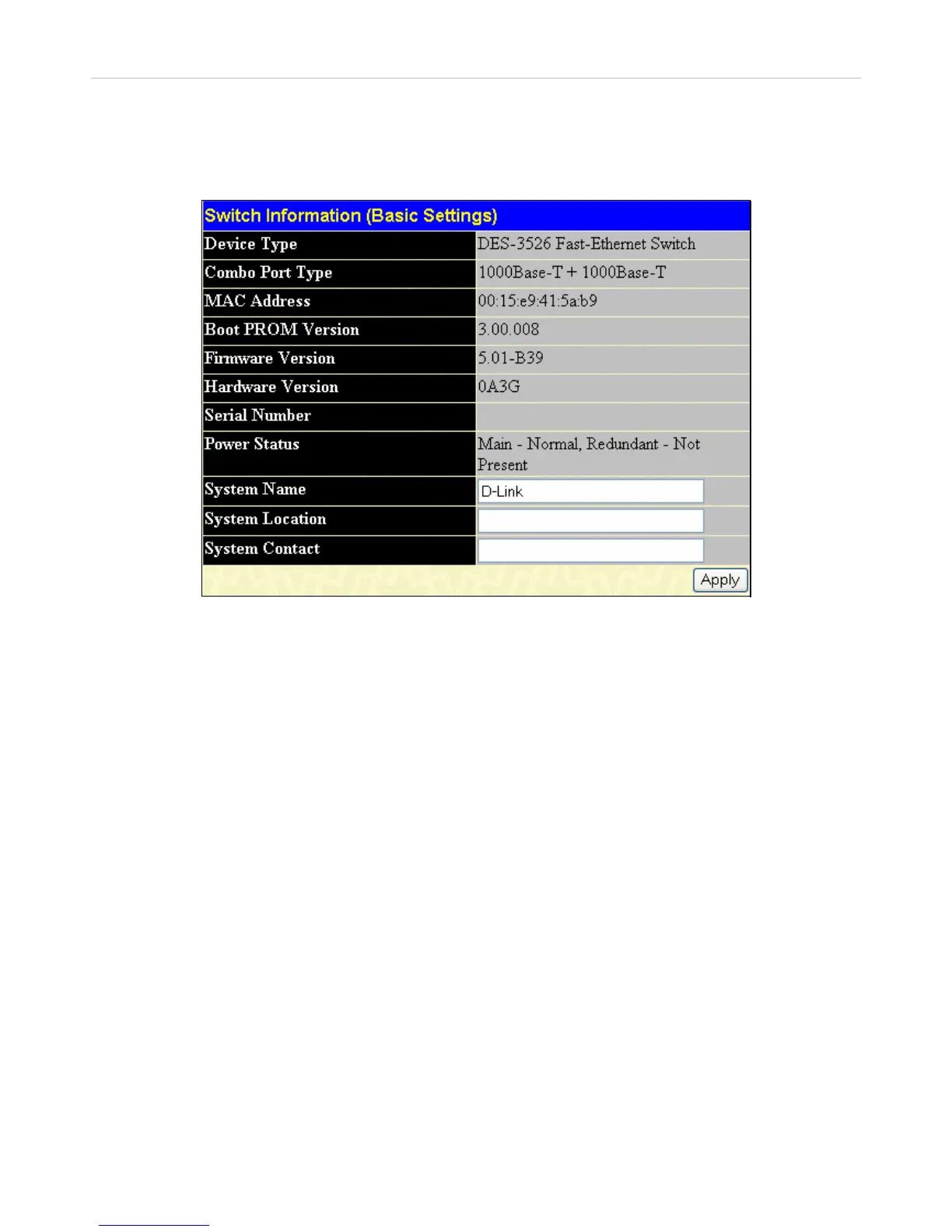

Figure 6- 1. Switch Information (Basic Settings) window
The Switch Information (Basic Settings) window shows the Switch's MAC Address (assigned by the factory and unchangeable),
the Boot PROM, Firmware Version, and Hardware Version. This information is helpful to keep track of PROM and firmware
updates and to obtain the Switch's MAC address for entry into another network device's address table, if necessary. The user may
also enter a System Name, System Location and System Contact to aid in defining the Switch, to the user's preference.
IP Address
The IP Address may initially be set using the console interface prior to connecting to it through the Ethernet. If the Switch IP
address has not yet been changed, read the introduction of the xStack
®
DES-3500 Series Command Line Interface Manual or
return to Section 4 of this manual for more information.
To change IP settings using the web manager you must access the IP Address menu located in the Configuration folder.
To configure the Switch's IP address:
Open the Configuration folder and click the IP Address menu link. The web manager will display the Switch's current IP
settings in the IP configuration menu, as seen below.
