DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
2
Front-Panel Components
The front panel of the Switch consists of LED indicators for power and for each 10/100 Mbps twisted-pair ports, and two
1000BASE-T Mini-GBIC ports.

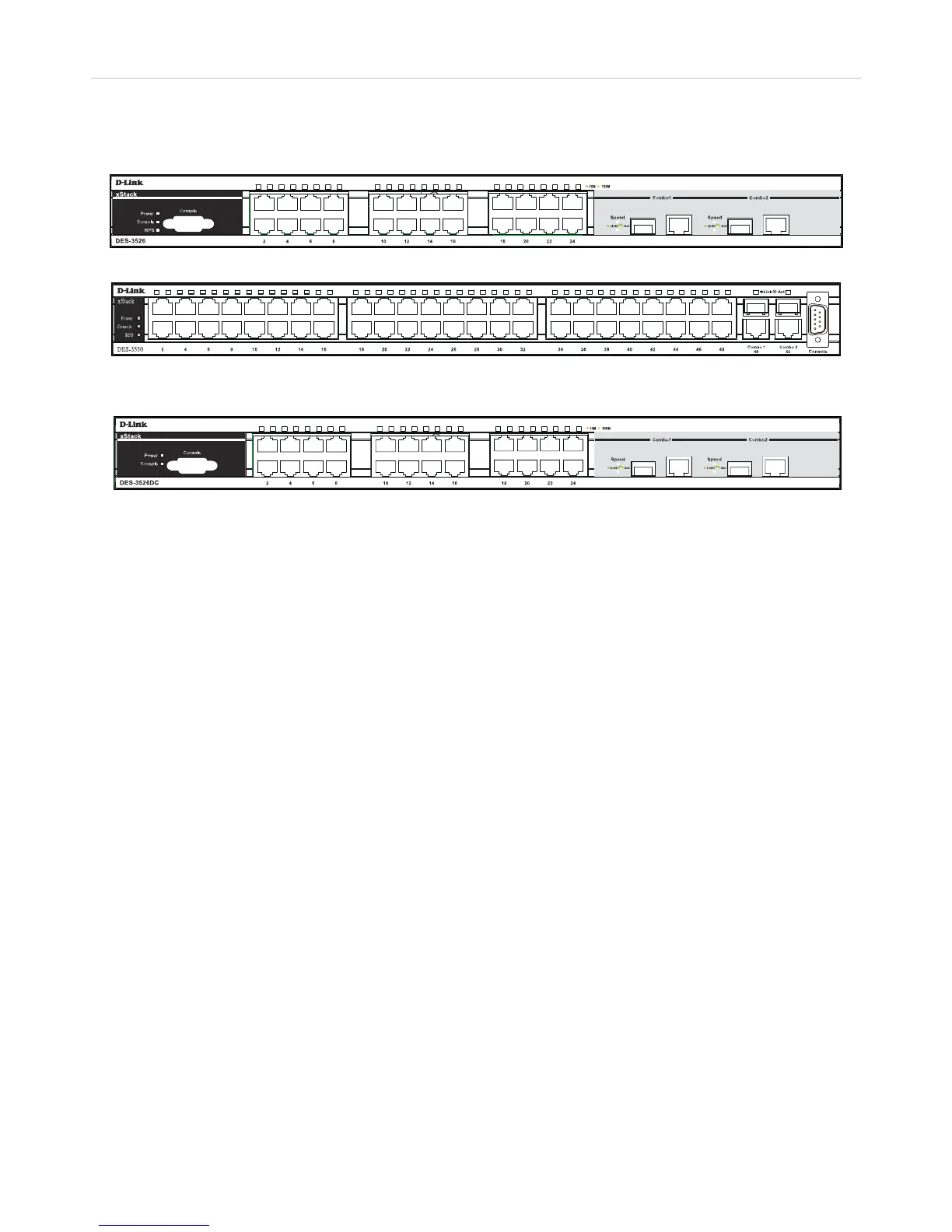

Figure 1- 1. Front Panel View of the DES-3526 switch
Figure 1- 2. Front Panel View of the DES-3550 switch
The DES-3526DC does not support a redundant power supply and therefore the RPS indicator does not appear on the front panel.
Figure 1- 3. Front Panel View of DES-3526DC
Comprehensive LED indicators display the status of the Switch and the network.
