xStack

DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

161

Configure Authenticator

To configure the 802.1X Authenticator Settings, click Security > Port Access Entity > Configure Authenticator:

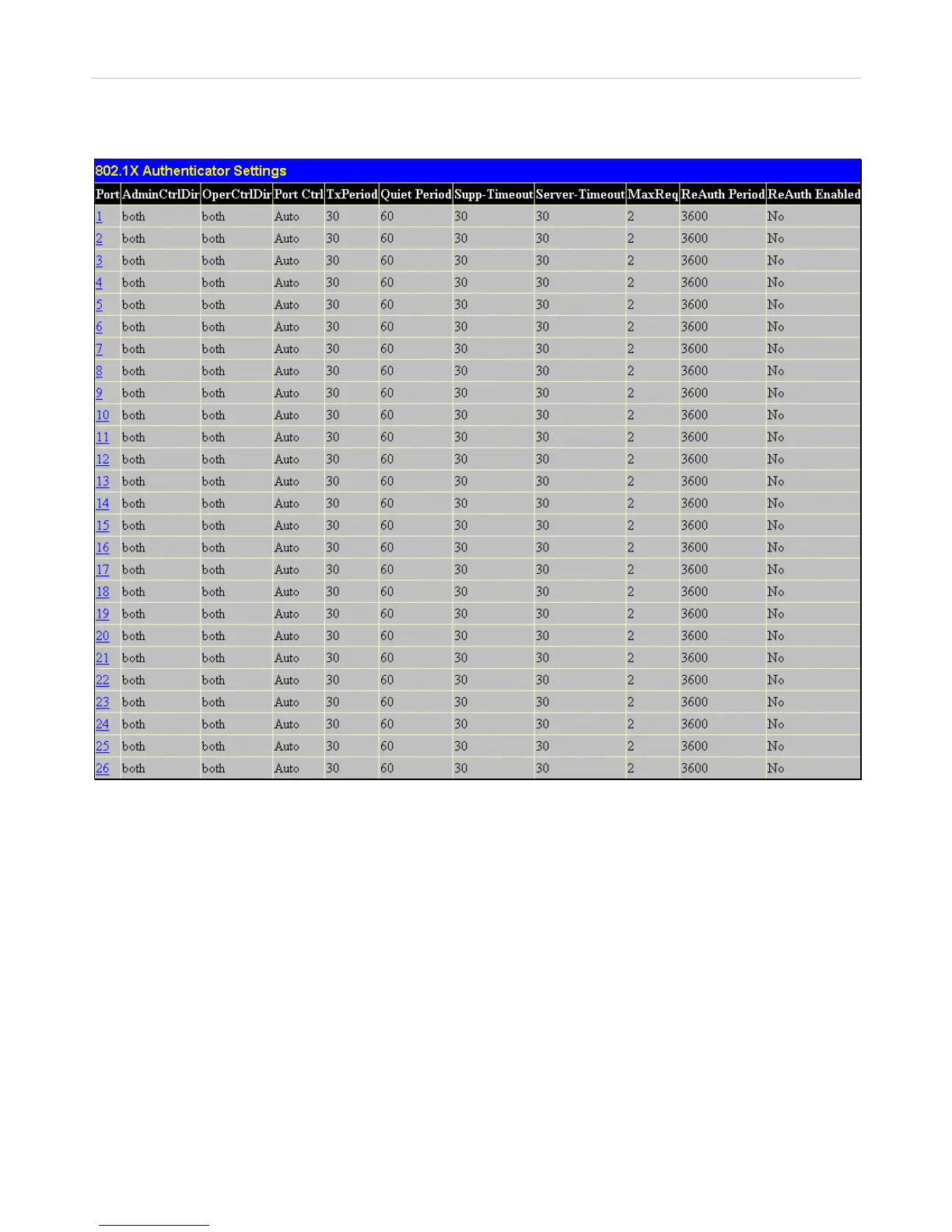

Figure 7- 12. 802.1X Authenticator Settings window

To configure the settings by port, click on the hyperlinked port number under the Port heading, which will display the following

table to configure:
