xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
191
SNMP Group Table
An SNMP Group created with this table maps SNMP users (identified in the SNMP User Table) to the views created in the
previous menu. To view this window click, Security Management > SNMP Manager > SNMP Group Table.

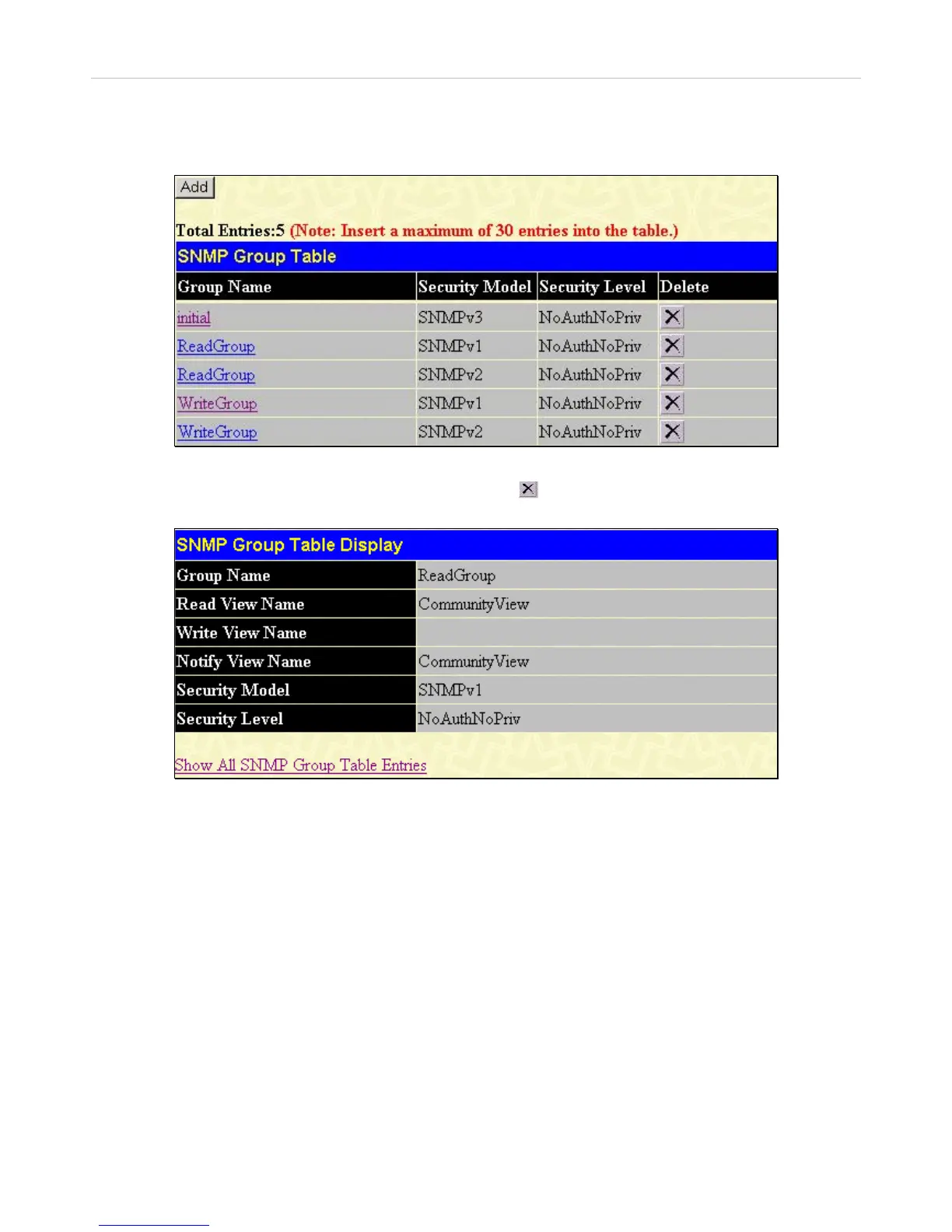

Figure 7- 49. SNMP Group Table window
To delete an existing SNMP Group Table entry, click the corresponding
button under the Delete heading.
To display the current settings for an existing SNMP Group Table entry, click the hyperlink for the entry under the Group Name.
Figure 7- 50. SNMP Group Table Display window
To add a new entry to the Switch's SNMP Group Table, click the Add button in the upper left-hand corner of the SNMP Group
Table window. This will open the SNMP Group Table Configuration window, as shown below.
