4. The user may zoom in and zoom out when utilizing the topology window to get a better, more defined view of the
configurations.
SIM Using the Web Interface
All DES-3500 Series switches are set as Candidate (CaS) switches, as their factory default configuration and Single IP
Management will be disabled. To enable SIM for the Switch using the Web interface, click Single IP Management > SIM
Settings.

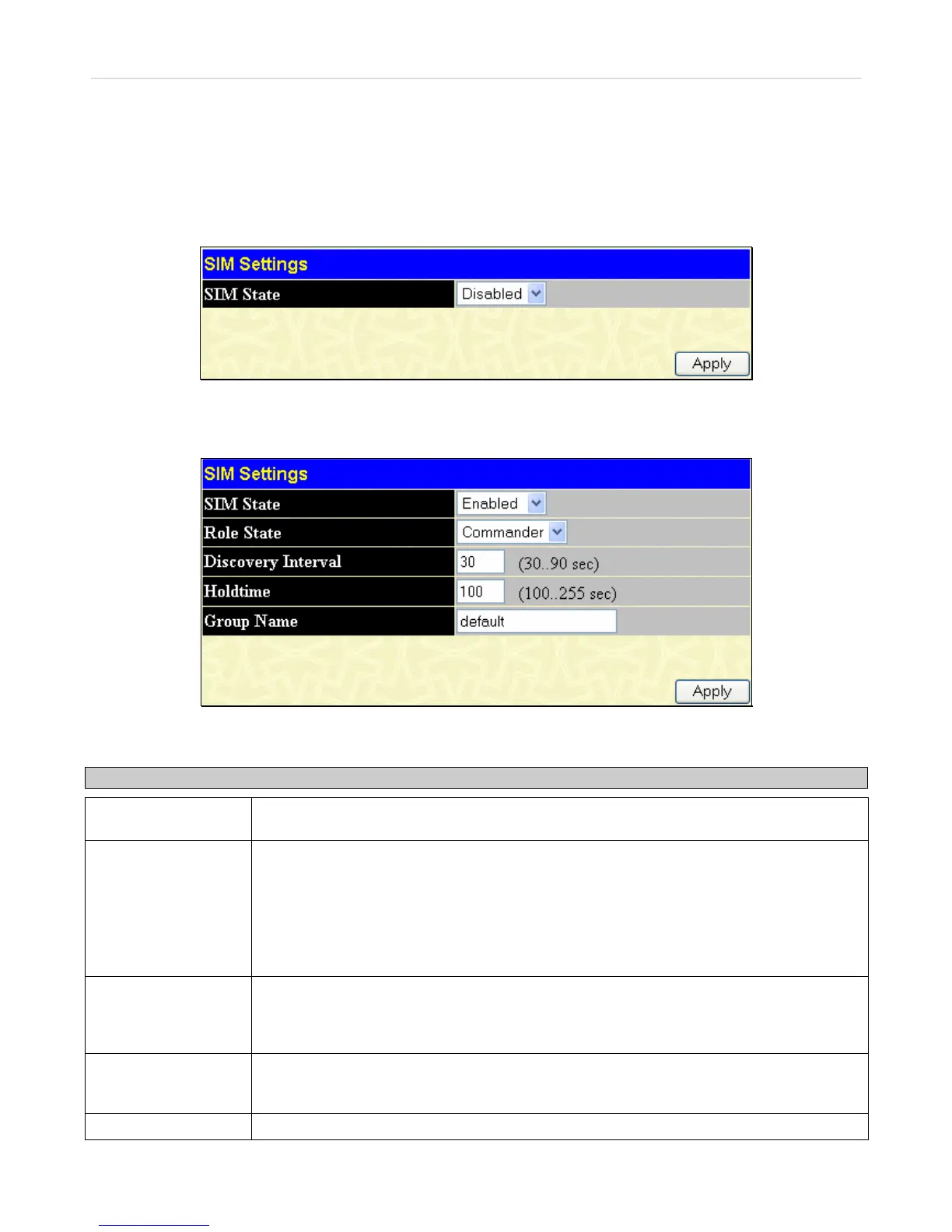

Figure 10- 1. SIM Settings window (disabled)
Change the SIM State to Enabled using the pull-down menu and click Apply. The window will then refresh and the SIM
Settings window will look like this:
Figure 10- 2. SIM Settings window (enabled)
The following parameters can be set:
Parameters Description
SIM State
Use the pull-down menu to either enable or disable the SIM state on the Switch. Disabled
will render all SIM functions on the Switch inoperable.
Role State
Use the pull-down menu to change the SIM role of the Switch. The two choices are:
Candidate - A Candidate Switch (CaS) is not the member of a SIM group but is connected to
a Commander Switch. This is the default setting for the SIM role of the DES-3500 Series
switches.
Commander - Choosing this parameter will make the Switch a Commander Switch (CS). The
user may join other switches to this Switch, over Ethernet, to be part of its SIM group.
Choosing this option will also enable the Switch to be configured for SIM.
Discovery Interval
The user may set the discovery protocol interval, in seconds that the Switch will send out
discovery packets. Returning information to a Commander Switch will include information
about other switches connected to it. (Ex. MS, CaS). The user may set the Discovery Interval
from 30 to 90 seconds.
Holdtime
This parameter may be set for the time, in seconds; the Switch will hold information sent to it
from other switches, utilizing the Discovery Interval. The user may set the hold time from 100
to 255 seconds.
Group Name
The user may enter a Group Name of up to 64 characters to define the SIM group created.
