xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
13
Switch to Hub or Switch
These connections can be accomplished in a number of ways using a normal cable.
• A 10BASE-T hub or switch can be connected to the Switch via a twisted-pair Category 3, 4 or 5 UTP/STP cable.
• A 100BASE-TX hub or switch can be connected to the Switch via a twisted -pair Category 5 UTP/STP cable.

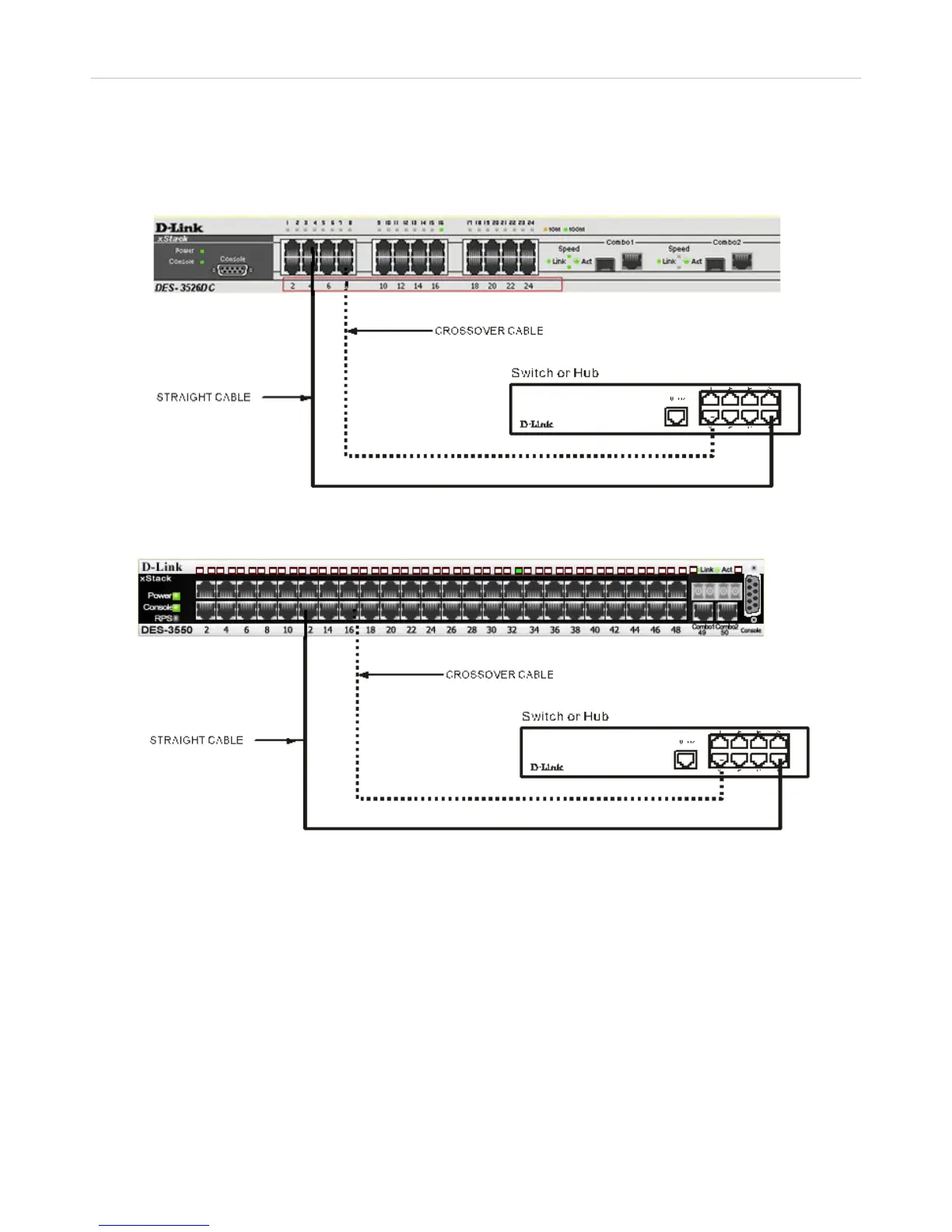

Figure 3- 3. DES-3526 connected to a normal (non-Uplink) port on a hub or switch using a straight or
crossover cable
Figure 3- 4 DES-3550 connected to a normal (non-Uplink) port on a hub or switch using a straight or
crossover cable
