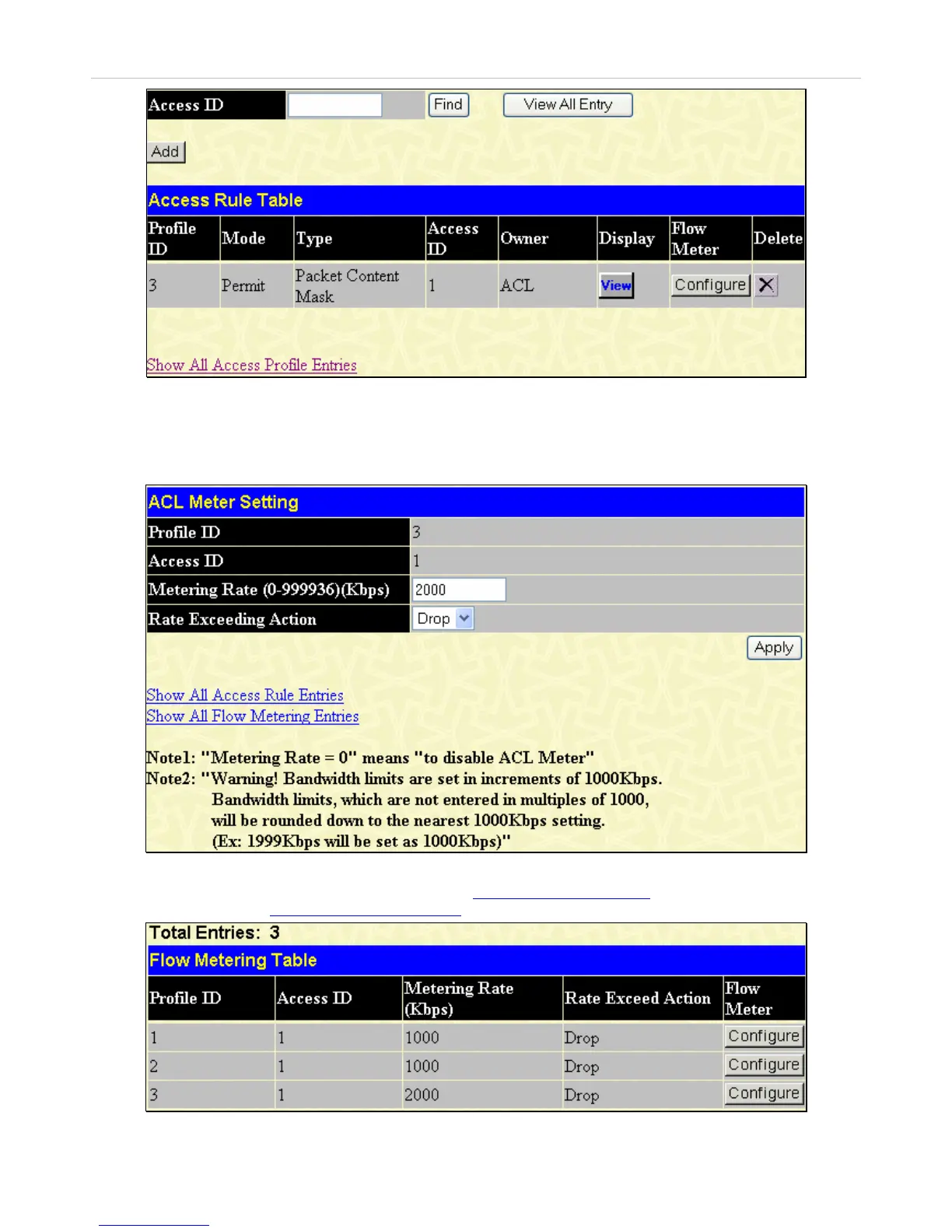

Figure 6- 82. Access Rule Table
To configure the ACL Flow Meter settings click the Configure button under the Flow Meter heading of the Access Rule Table.
These settings are used to limit the bandwidth of the ingress traffic on the Switch. When the users create an ACL rule to filter
packets, a metering rule can be created to associate with this ACL rule to limit traffic. The bandwidth is 1000Kbps on ether ports
and 8000Kbps on giga ports. Be aware that due to limited metering rules, not all ACL rules can associate with a metering rule.
Figure 6- 83 ACL Meter Setting window (Configuration)
To return to the Access Rule Entry Table click the hyperlinked Show All Access Rule Entries
. To view the Flow Metering
Entries click the hyperlinked Show All Flow Metering Entries
the following window will be displayed.
Figure 6- 84 Flow Meter Table window (Display)
