packet to the 15th byte.
• value (16-31) – Enter a value in hex form to mask the packet from byte 16 to byte 31.
• value (32-47) – Enter a value in hex form to mask the packet from byte 32 to byte 47.
• value (48-63) – Enter a value in hex form to mask the packet from byte 48 to byte 63.
• value (64-79) – Enter a value in hex form to mask the packet from byte 64 to byte 79.
Click Apply to implement changes made.
To establish the rule for a previously created CPU Access Profile:
Click Configuraion > ACL > CPU Interface Filtering to open the CPU Interface Filtering Profile Table. In this window, the
user may add a rule to a previously created CPU access profile by clicking the corresponding Add Rule button.

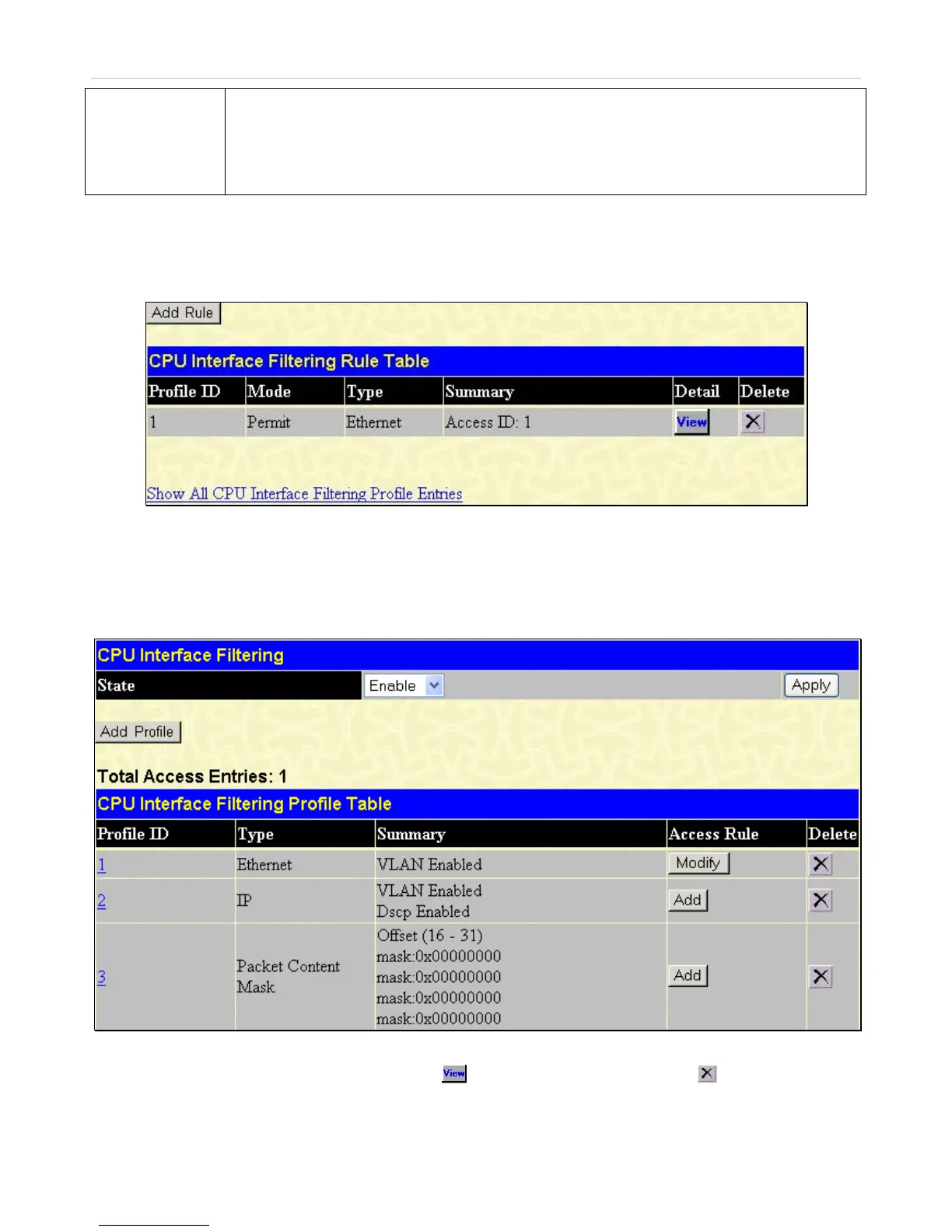

Figure 6- 91. CPU Interface Filtering Rule Table
Click the Add Rule button to continue on to the CPU Interface Filtering Rule Table window. A new window, for Ethernet, IP
and Packet Content will open as shown in the examples below.
To change a rule for a previously created CPU Access Profile Rule:
In this window, the user may change a rule that has been previously created by clicking the corresponding Modify button of the
entry.
Figure 6- 92. CPU Interface Filtering window
The CPU Interface Filtering Rule Table will open. Click
to observe a previously created rule or to delete.
The following window is the configuration page for the Ethernet Rule.
