xStack

DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

179

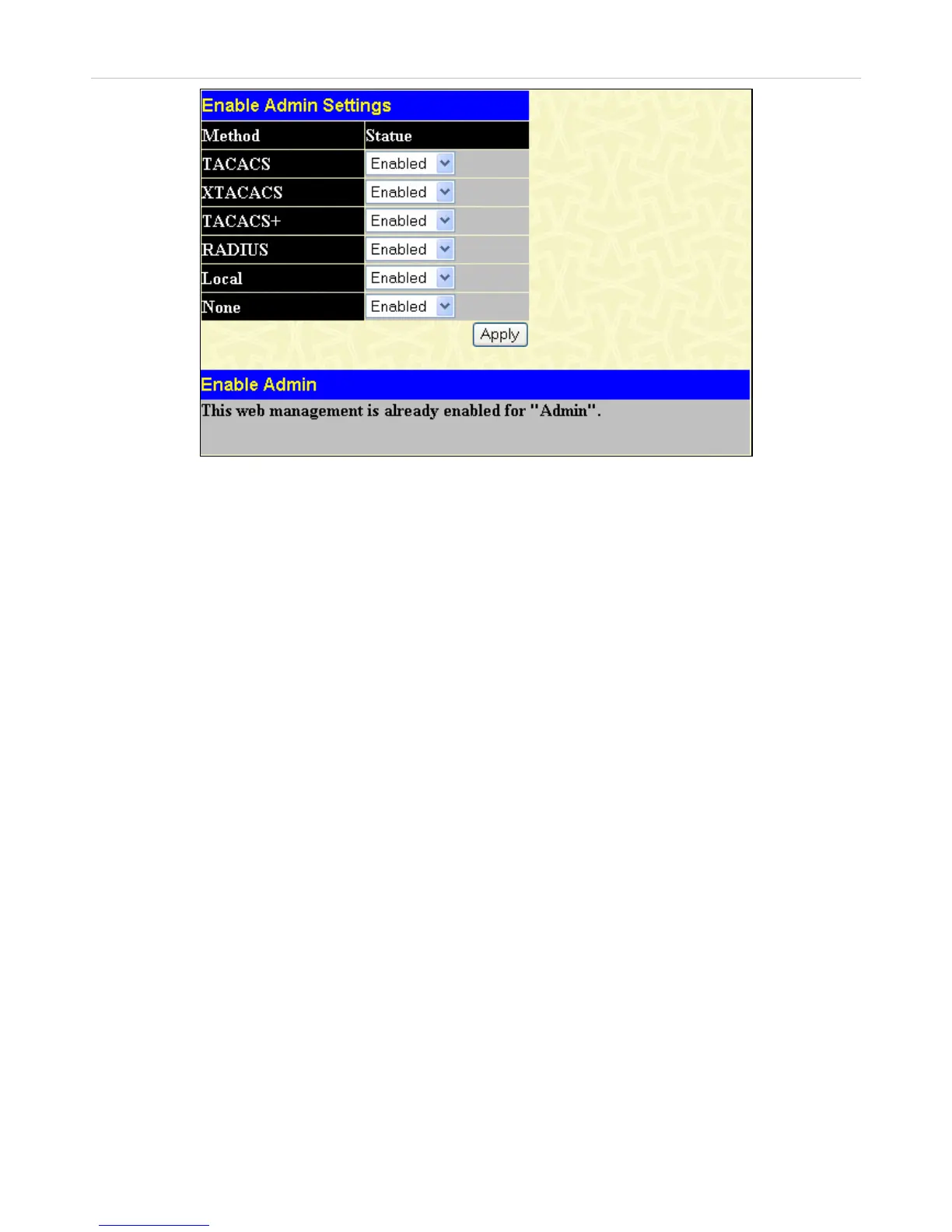

Figure 7- 37. Enable Admin Screen

If the Authentication Policy is disabled the message in the lower half of the screen will indicate Authentication Policy is

disabled!
