DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
212

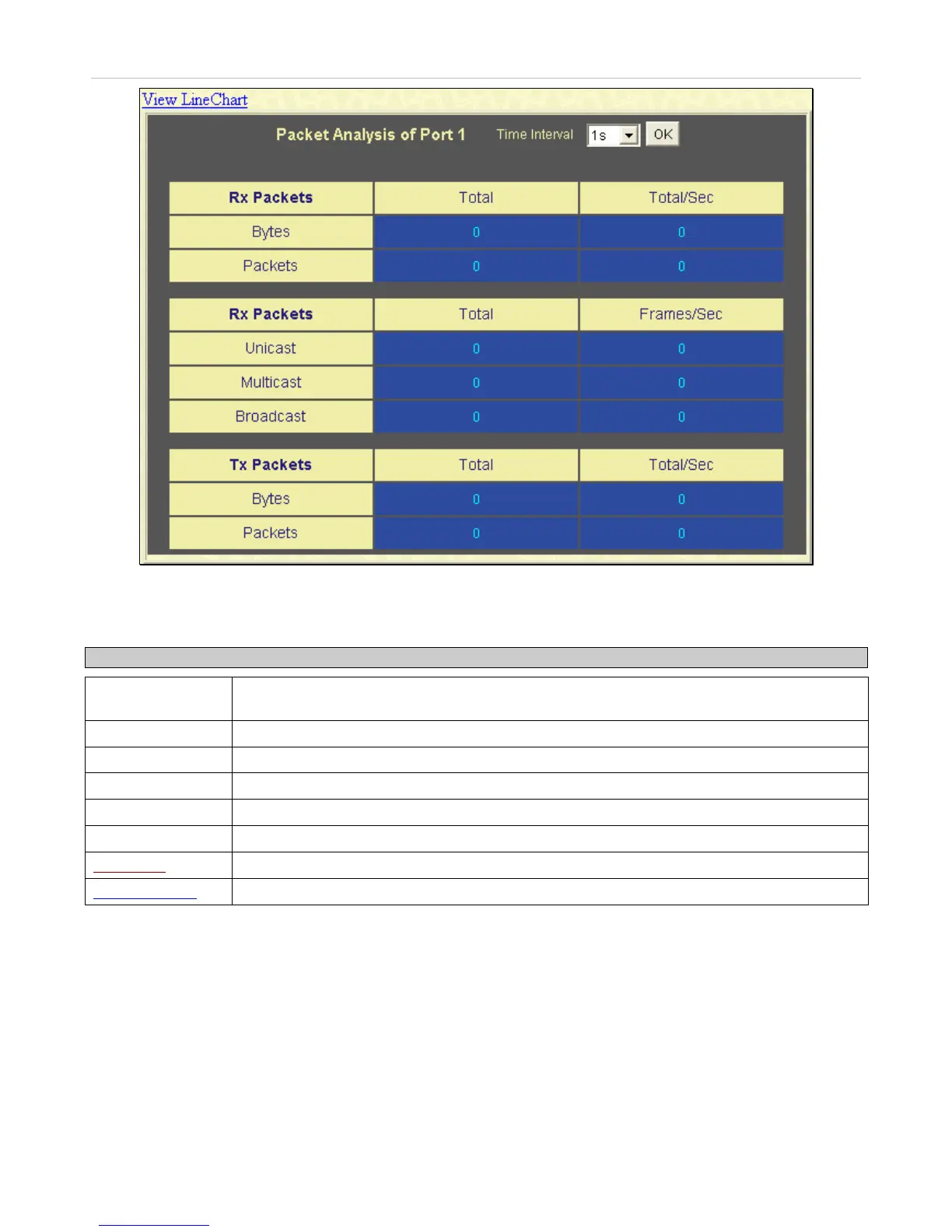

Figure 8- 9. Tx Packets Analysis window (table for Bytes and Packets)
The following fields may be set or viewed:
Parameter Description
Time Interval
Select the desired setting between 1s and 60s, where "s" stands for seconds. The default value
is one second.
Record Number
Select number of times the Switch will be polled between 20 and 200. The default value is 20.
Bytes
Counts the number of bytes successfully sent from the port.
Packets
Counts the number of packets successfully sent on the port.
Show/Hide
Check whether or not to display Bytes and Packets.
Clear
Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
