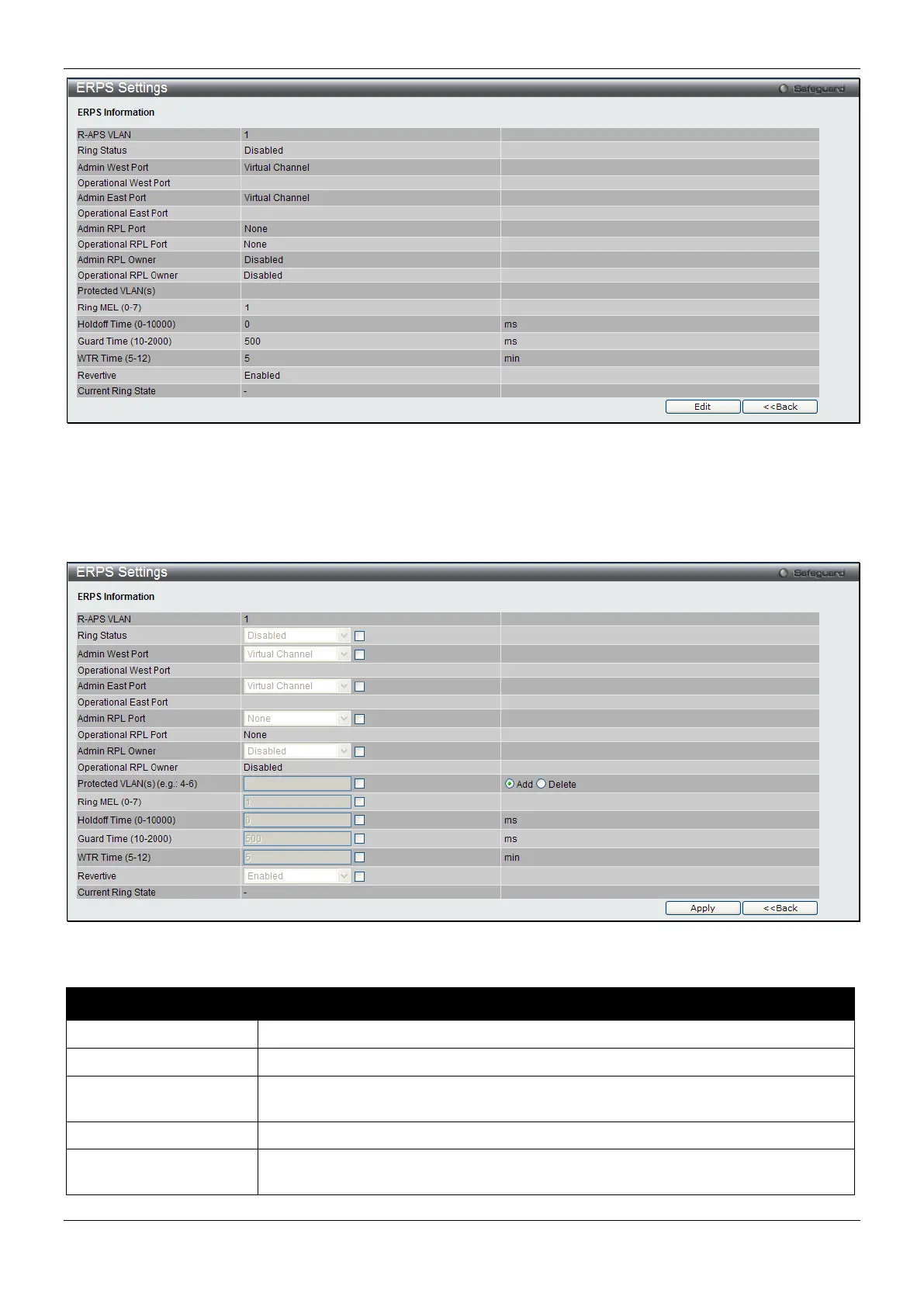

Figure 4-74 ERPS Settings - Detail Information window
Click on the Edit button to re-configure the specific entry.
Click on the <<Back button to return to the ERPS settings page.
After click the Edit button, the following window will appear:
Figure 4-75 ERPS Settings - Edit Detail Information window
The fields that can be configured or displayed are described below:
Parameter Description
R-APS VLAN
Display the R-APS VLAN ID.
Ring Status
Specify to enable or disable the specified ring.
Admin West Port
Specify the port as the west ring port and also specifies the virtual port channel
used.
Operational West Port
Display the operational west port.
Admin East Port
Specify the port as the east ring port and also specifies the virtual port channel
used.
