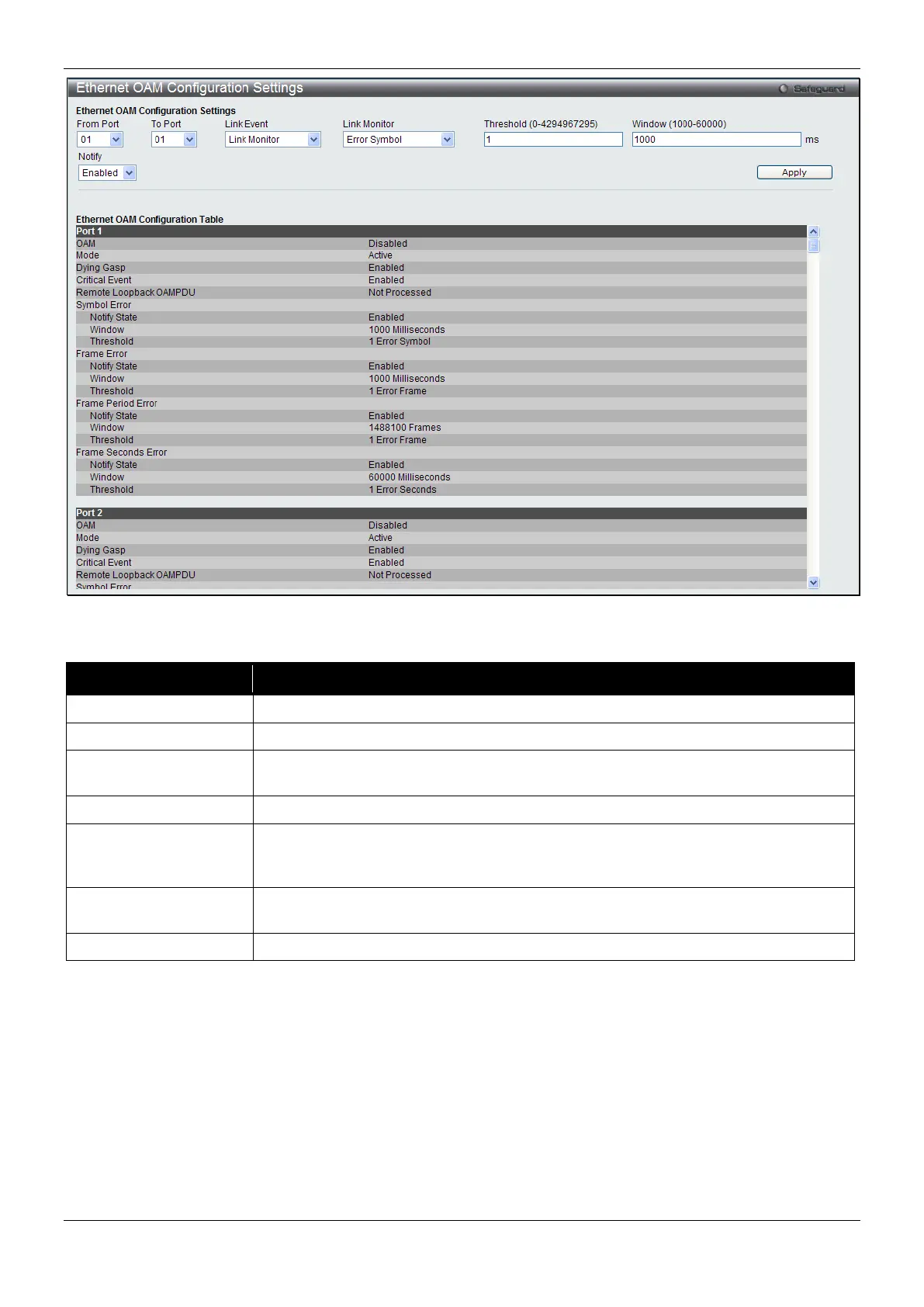

Figure 10-16 Ethernet OAM Configuration Settings window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Select a range of ports you wish to configure.
Link Event
Use the drop-down menu to select the link events, Link Monitor or Critical Link Event.
Link Monitor Use the drop-down menu to select link monitor. Available options are Error Symbol,
Error Frame, Error Frame Period, and Error Frame Seconds.
Critical Link Event
Use the drop-down menu to select between Dying Gasp and Critical Event.
Threshold
Enter the number of error frame or symbol in the period is required to be equal to or
greater than in order for the event to be generated. The available value changes
based on the selected Link Monitor.
Window
Enter the period of error frame or symbol in milliseconds summary event. The
available value changes based on the selected Link Monitor.
Notify
Specify to enable or disable the event notification. The default state is Enabled.
Click the Apply button to accept the changes made for each individual section.
Ethernet OAM Event Log
The window is used to show ports Ethernet OAM event log information.
To view this window, click OAM > Ethernet OAM > Ethernet OAM Event Log, as shown below:

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
