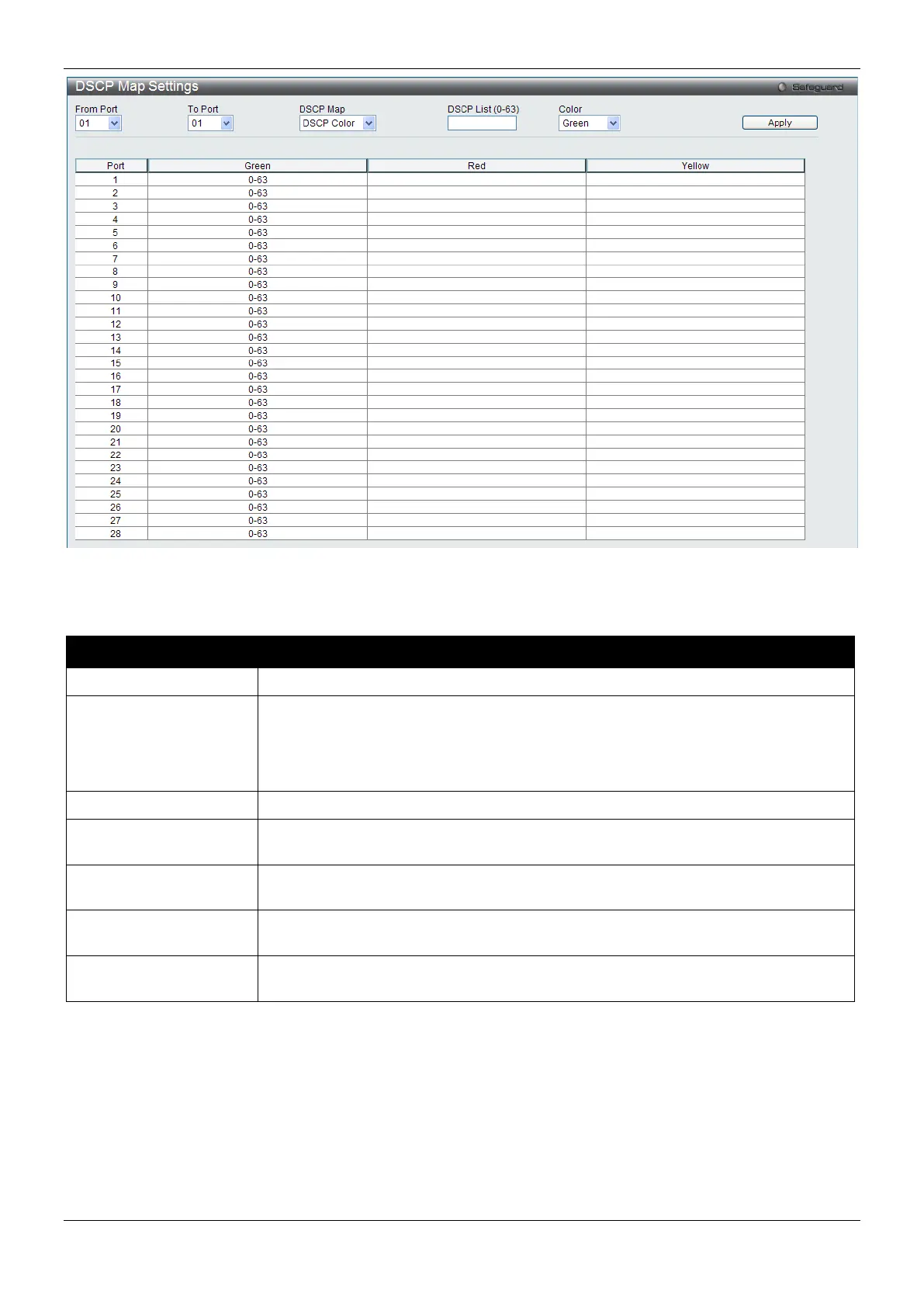

Figure 6-11 DSCP Map Settings - DSCP Color window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Use the drop-down menu to select a range of port to configure.
DSCP Map
Use the drop-down menu to select one of two options:
DSCP Priority – Specify a list of DSCP values to be mapped to a specific priority.
DSCP DSCP – Specify a list of DSCP value to be mapped to a specific DSCP.
DSCP Color - Specify a list of DSCP value to be mapped to a specific color.
DSCP List (0-63)
Enter a DSCP List value.
Priority
Use the drop-down menu to select a Priority value. This appears when selecting
DSCP Priority in the DSCP Map drop-down menu.
DSCP (0-63) Enter a DSCP value. This appears when selecting DSCP DSCP in the DSCP Map
drop-down menu.
Port Use the drop-down menu to select a port. This appears when selecting DSCP
DSCP in the DSCP Map drop-down menu.
Color
Use the drop-down menu to select the result color of the mapping. This appears
when selecting DSCP Color in the DSCP Map drop-down menu.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Scheduling Settings
