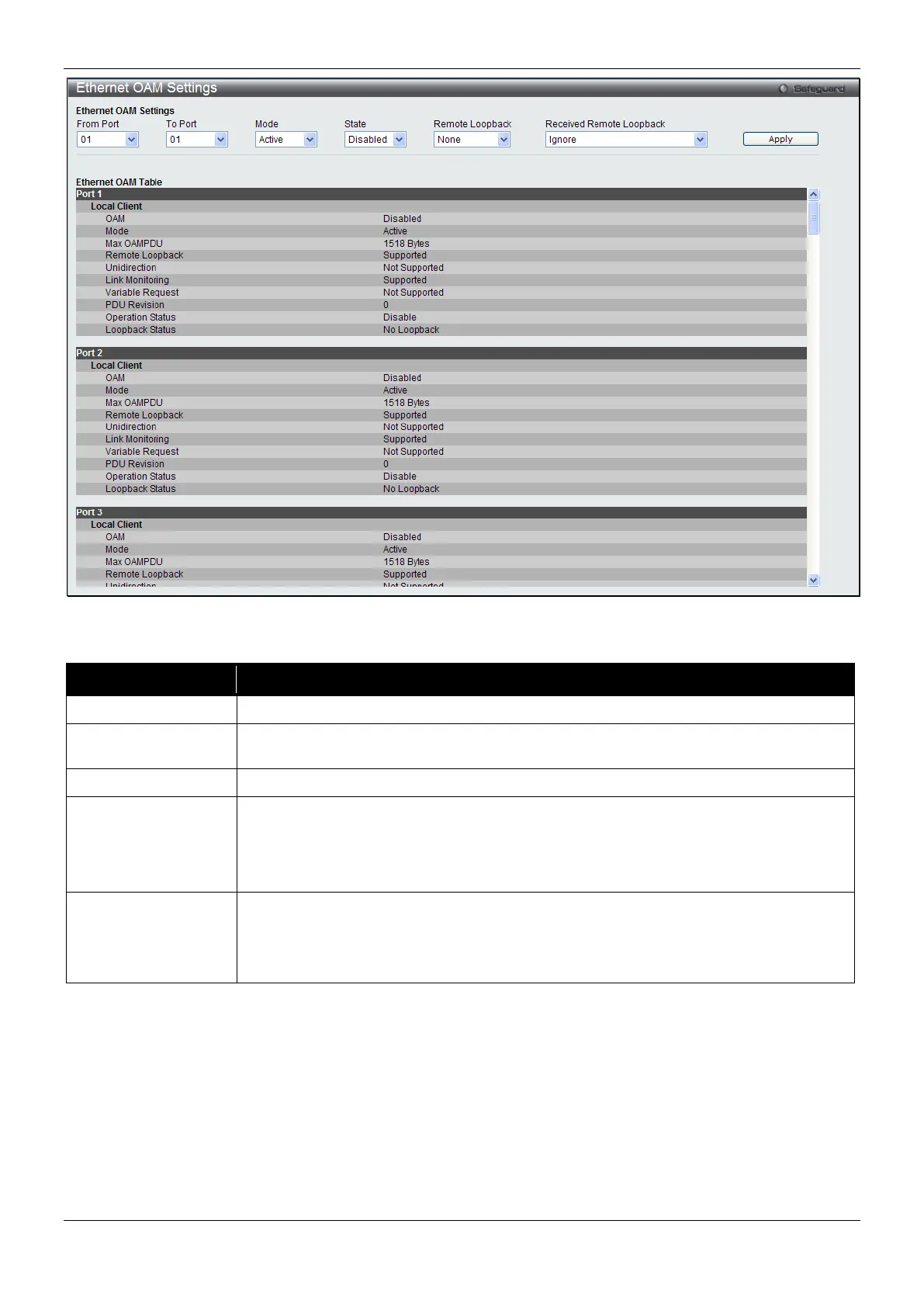

Figure 10-15 Ethernet OAM Settings window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Select a range of ports you wish to configure.
Mode Use the drop-down menu to select to operate in either Active or Passive. The default
mode is Active.
State
Use the drop-down menu to enable or disable the OAM function.
Remote Loopback
Use the drop-down menu to select Ethernet OAM remote loopback.
None – Select to disable the remote loopback.
Start – Select to request the peer to change to the remote loopback mode.
Stop - Select to request the peer to change to the normal operation mode.
Received Remote
Loopback
Use the drop-down menu to configure the client to process or to ignore the received
Ethernet OAM remote loopback command.
Process – Select to process the received Ethernet OAM remote loopback command.
Ignore - Select to ignore the received Ethernet OAM remote loopback command.
Click the Apply button to accept the changes made.
Ethernet OAM Configuration Settings
This window is used to configure Ethernet OAM configuration settings.
To view this window, click OAM > Ethernet OAM > Ethernet OAM Configuration Settings, as shown below:

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
