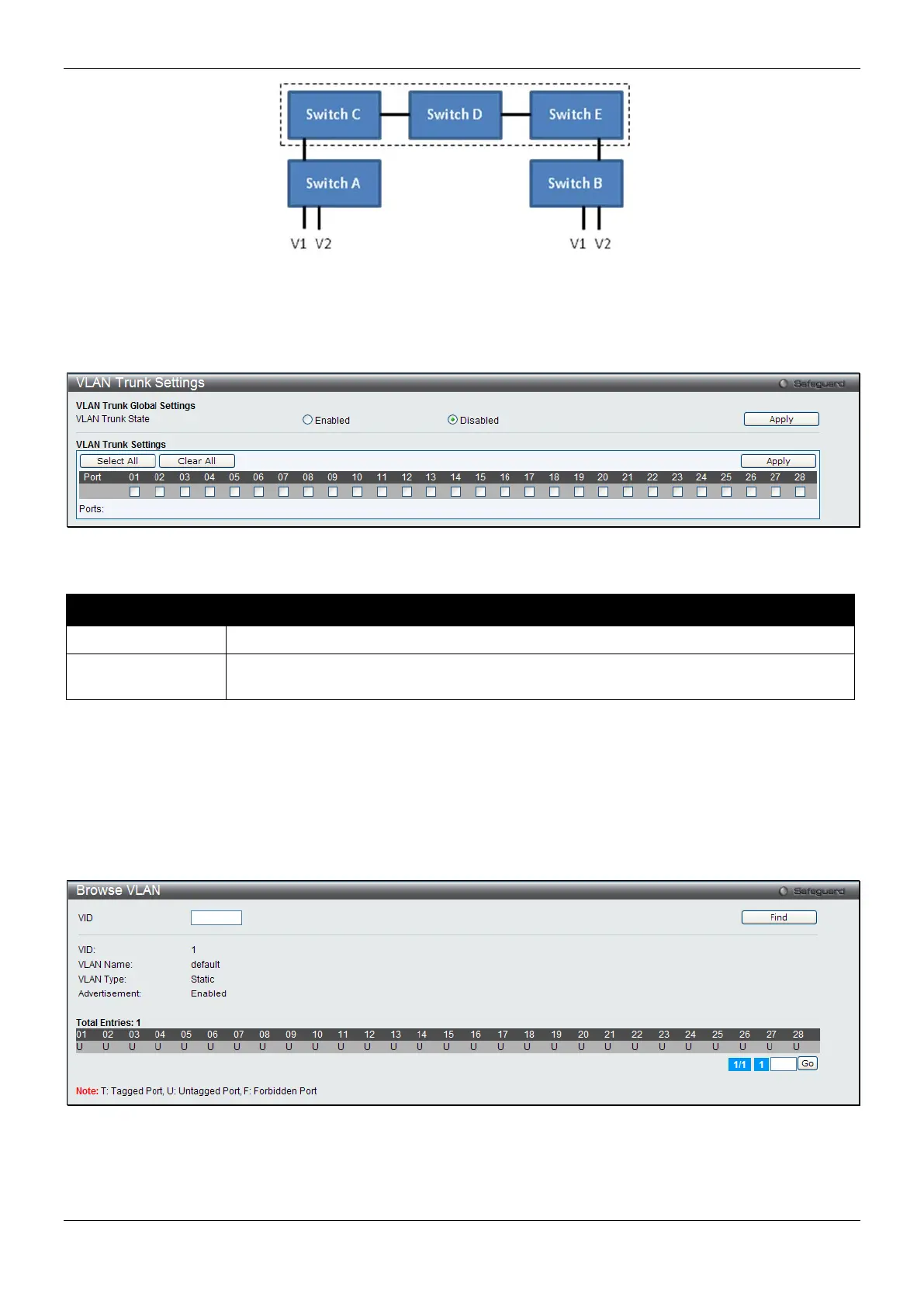

Figure 4-14 Example of VLAN Trunk
Users can combine a number of VLAN ports together to create VLAN trunks.
To view the following window, click L2 Features > VLAN > VLAN Trunk Settings, as show below:
Figure 4-15 VLAN Trunk Settings window
The fields that can be configured are described below:
Parameter Description
VLAN Trunk State
Enable or disable the VLAN trunking global state.
Ports The ports to be configured. By clicking the Select All button, all the ports will be
included. By clicking the Clear All button, all the ports will not be included.
Click the Apply button to accept the changes made for each individual section.
Browse VLAN
Users can display the VLAN status for each of the Switch's ports viewed by VLAN. Enter a VID (VLAN ID) in the
field at the top of the window and click the Find button.
To view the following window, click L2 Features > VLAN > Browse VLAN, as show below:
Figure 4-16 Browse VLAN window
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
