xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
103
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove the specific entry.
Click the Find button to locate a specific entry based on the information entered.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
IPv4 Max Multicast Group Settings
Users can configure the ports and VLANs on the switch that will be a part of the maximum filter group, up to a
maximum of 1024.
To view the following window, click L2 Features > Multicast Filtering > IPv4 Multicast Filtering > IPv4 Max
Multicast Group Settings, as show below:

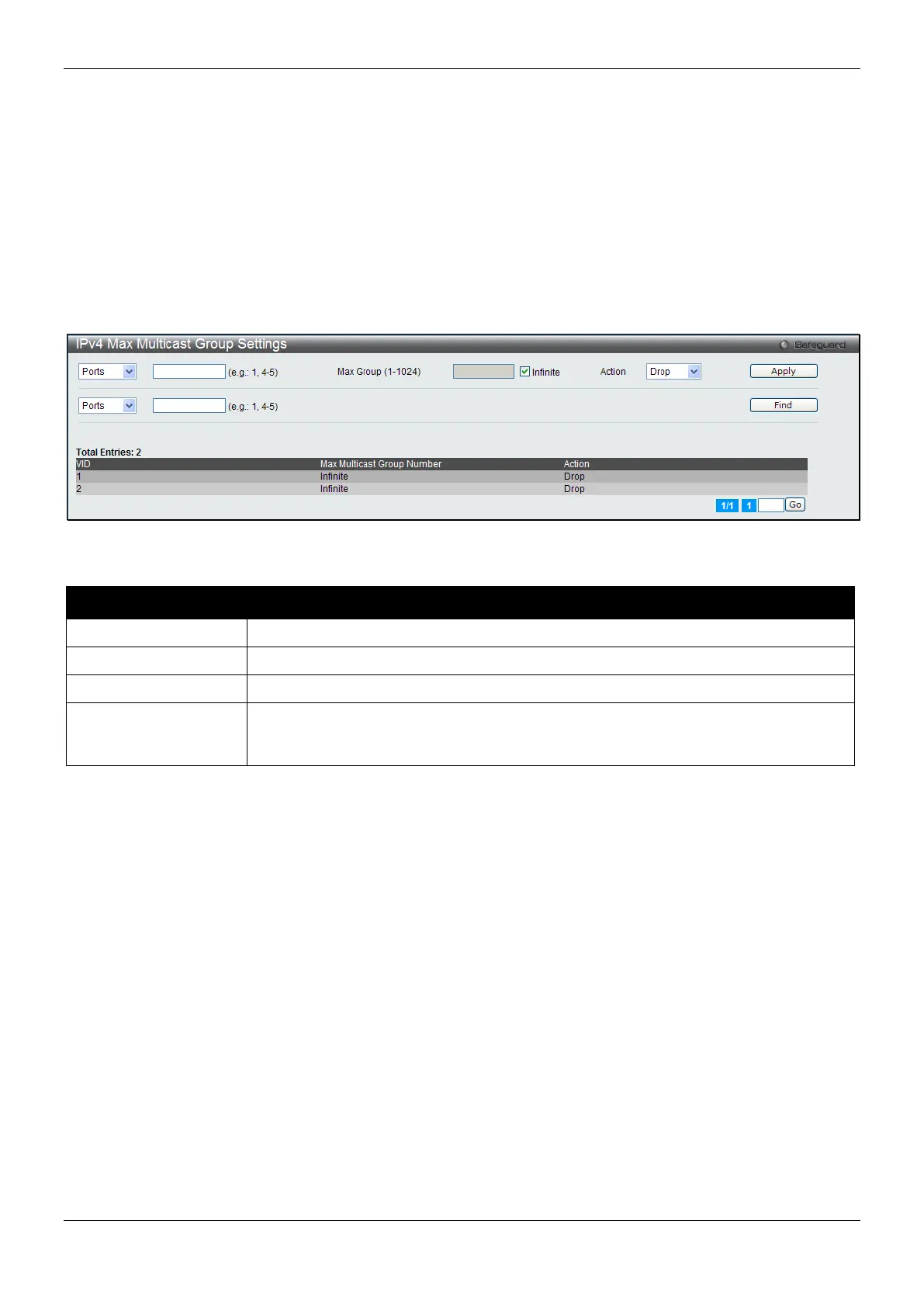

Figure 4-67 IPv4 Max Multicast Group Settings window
The fields that can be configured are described below:
Parameter Description
Select the appropriate port(s) or VLAN IDs used for the configuration here.
If the checkbox Infinite is not selected, the user can enter a Max Group value.
Tick the check box to enable or disable the use of the Infinite value.
Action
Use the drop-down menu to select the appropriate action for this rule. The user can
select Drop to initiate the drop action or the user can select Replace to initiate the
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
IPv6 Multicast Filtering
Users can add a profile to which multicast address(s) reports are to be received on specified ports on the Switch.
This function will therefore limit the number of reports received and the number of multicast groups configured on
the Switch. The user may set an IPv6 Multicast address or range of IPv6 Multicast addresses to accept reports
(Permit) or deny reports (Deny) coming into the specified switch ports.
IPv6 Multicast Profile Settings
Users can add, delete, and configure the IPv6 multicast profile on this page.
To view the following window, click L2 Features > Multicast Filtering > IPv6 Multicast Filtering > IPv6 Multicast
Profile Settings, as show below:
