D-Link xStack DES-3200 Series Reference Guide

xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
89

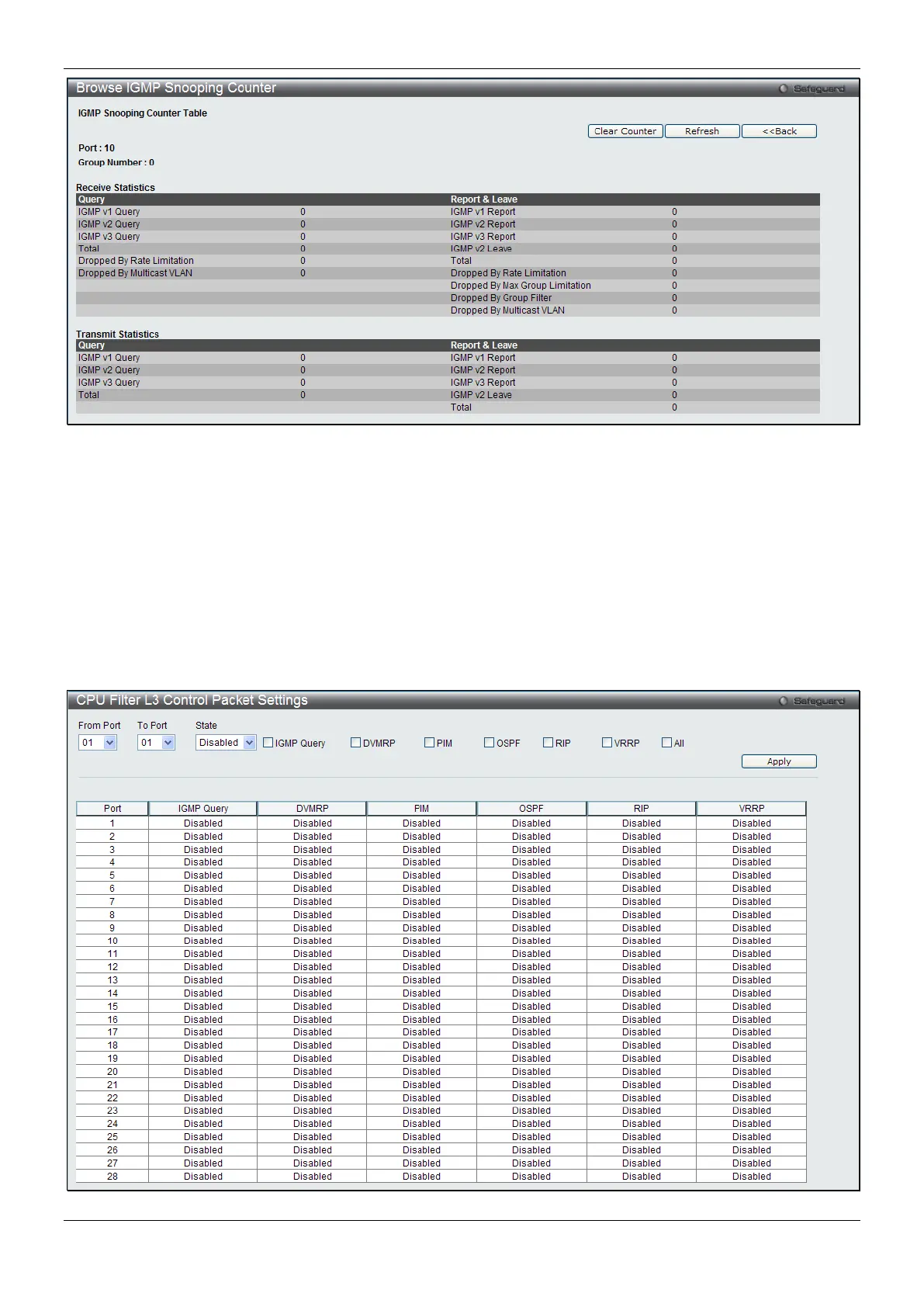

Figure 4-46 Browse IGMP Snooping Counter window
Click the Clear Counter button to clear all the information displayed in the fields.
Click the Refresh button to refresh the display table so that new information will appear.
Click the <<Back button to return to the previous page.
CPU Filter L3 Control Packet Settings
This window is used to discard and display Layer 3 control packets sent to the CPU from specific ports.
To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > CPU Filter L3
control Packet Settings, as show below:
Figure 4-47 CPU Filter L3 Control Packet Settings window

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
