xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
139

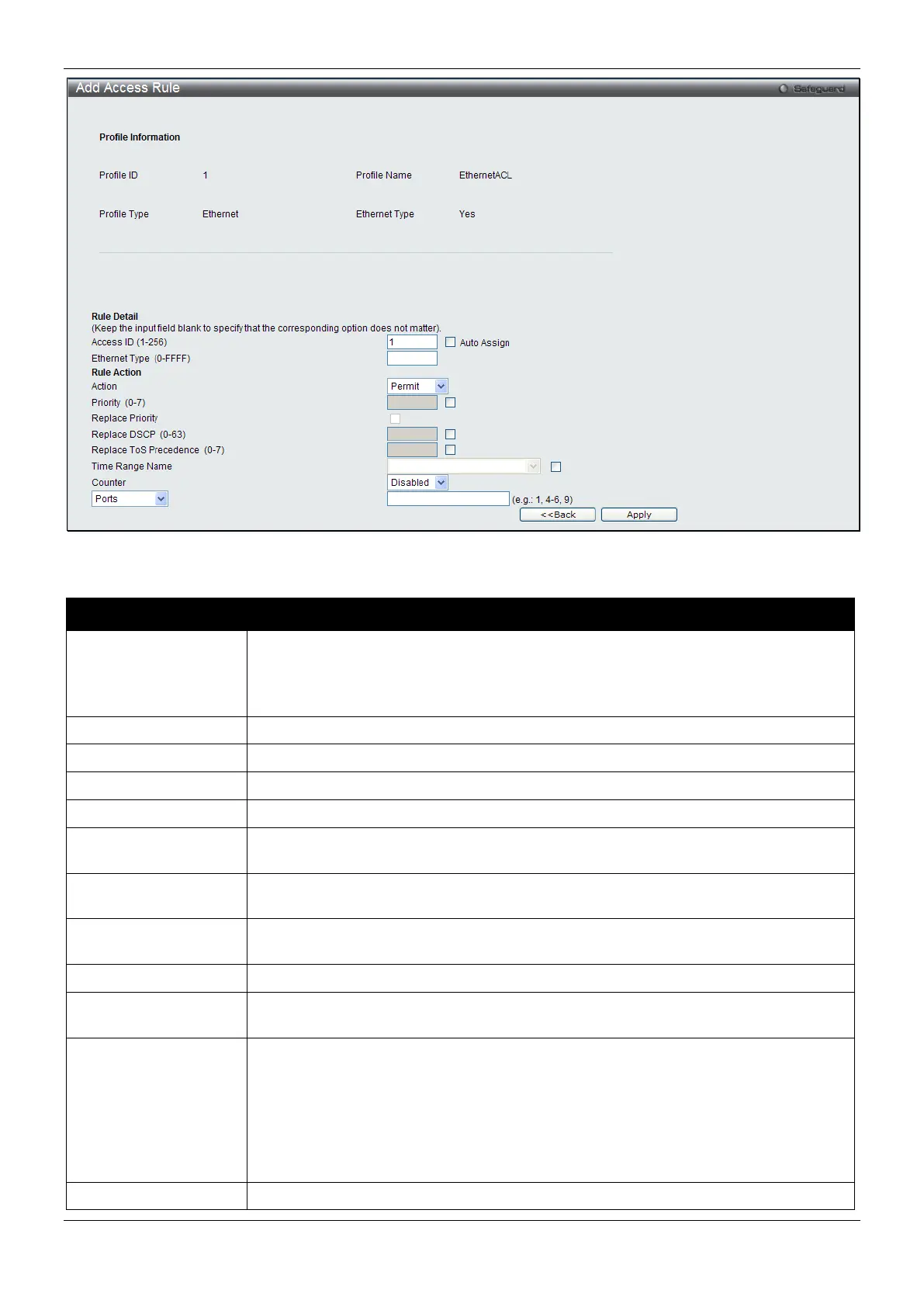

Figure 7-6 Add Access Rule window (Ethernet ACL)
The fields that can be configured are described below:
Parameter Description
Access ID (1-256) Type in a unique identifier number for this access. This value can be set from 1 to
256.
Auto Assign – Select this check box will instruct the Switch to automatically assign an
Access ID for the rule being created.
VLAN Name
Enter the VLAN name.
VLAN ID
Enter the VLAN ID.
VLAN Mask
Select and enter the VLAN mask value.
Source MAC Address
Enter the source MAC address.
Source MAC Address
Mask
Select and enter the source MAC address mask.
Destination MAC
Address
Enter the destination MAC address.
Destination MAC
Address Mask
Select and enter the destination MAC address mask.
802.1p
Enter the 802.1p priority tag value. This value must be between 0 and 7.
Ethernet Type (0-
FFFF)
Enter the Ethernet type value.
Action Select Permit to specify that the packets that match the access profile are forwarded
by the Switch, according to any additional rule added (see below).
Select Deny to specify that the packets that match the access profile are not
forwarded by the Switch and will be filtered.
Select Mirror to specify that packets that match the access profile are mirrored to a
port defined in the config mirror port command. Port Mirroring must be enabled and a
target port must be set.
Priority (0-7)
Tick the corresponding check box if you want to re-write the 802.1p default priority of
