xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
141

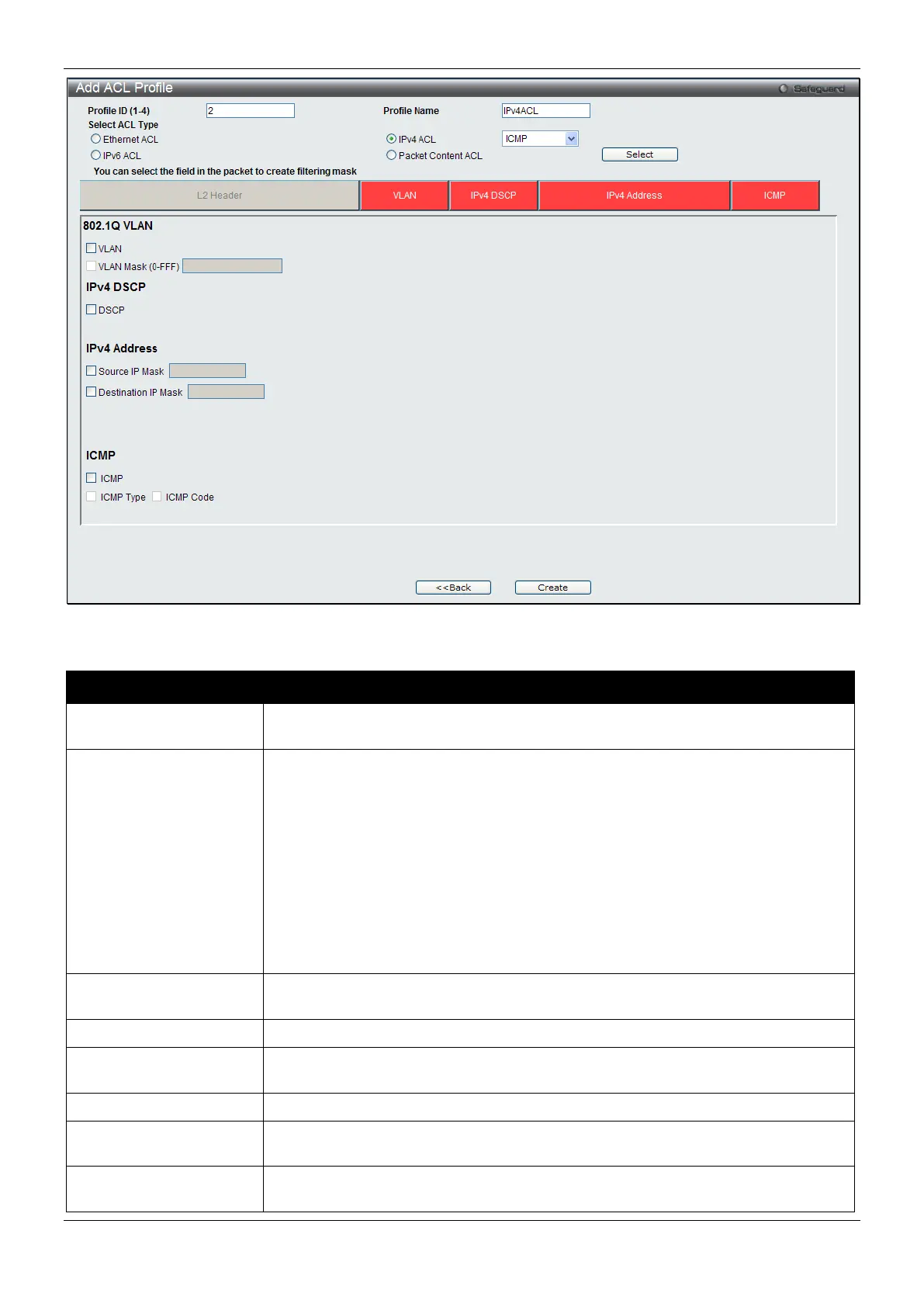

Figure 7-8 Add ACL Profile window (IPv4 ACL)
The fields that can be configured are described below:
Parameter Description
Profile ID (1-4) Enter a unique identifier number for this profile set. This value can be set from 1 to
4.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or
packet content. This will change the window according to the requirements for the
type of profile.
Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each
packet header.
Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each frame's
header.
Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each frame's
header.
Select Packet Content to instruct the Switch to examine the packet content in each
frame’s header.
802.1Q VLAN
Selecting this option instructs the Switch to examine the 802.1Q VLAN identifier of
each packet header and use this as the full or partial criterion for forwarding.
VLAN Mask
Select and enter the VLAN mask value.
IPv4 DSCP
Selecting this option instructs the Switch to examine the DiffServ Code part of each
packet header and use this as the, or part of the criterion for forwarding.
IPv4 Source IP Mask
Enter an IP address mask for the source IP address, e.g. 255.255.255.255.
IPv4 Destination IP
Mask
Enter an IP address mask for the destination IP address, e.g. 255.255.255.255.
Protocol
Selecting this option instructs the Switch to examine the protocol type value in each
frame's header. Then the user must specify what protocol(s) to include according to
