After clicking the Add/View Rules button, the following page will appear:

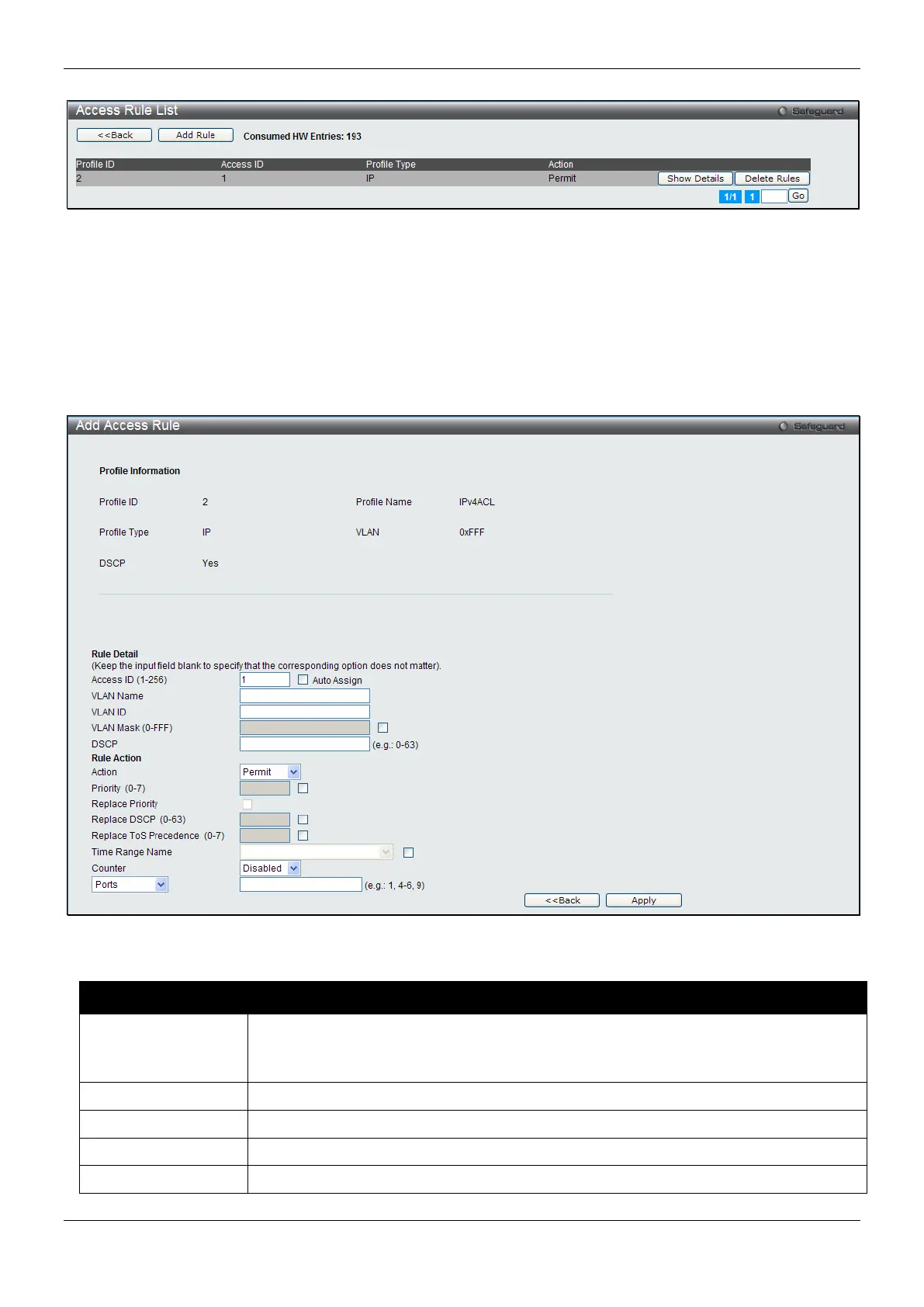

Figure 7-10 Access Rule List window (IPv4 ACL)
Click the Add Rule button to create a new ACL rule in this profile.
Click the <<Back button to return to the previous page.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following page will appear:
Figure 7-11 Add Access Rule (IPv4 ACL)
The fields that can be configured are described below:
Parameter Description
Access ID (1-256) Type in a unique identifier number for this access. This value can be set from 1 to 256.
Auto Assign – Select this check box will instruct the Switch to automatically assign an
Access ID for the rule being created.
VLAN Name
Enter the VLAN name.
VLAN ID
Enter the VLAN ID.
VLAN Mask
Select and enter the VLAN mask value.
Source IP Address
Enter the source IP address.
