xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
155
After clicking the Add CPU ACL Profile button, the following page will appear:

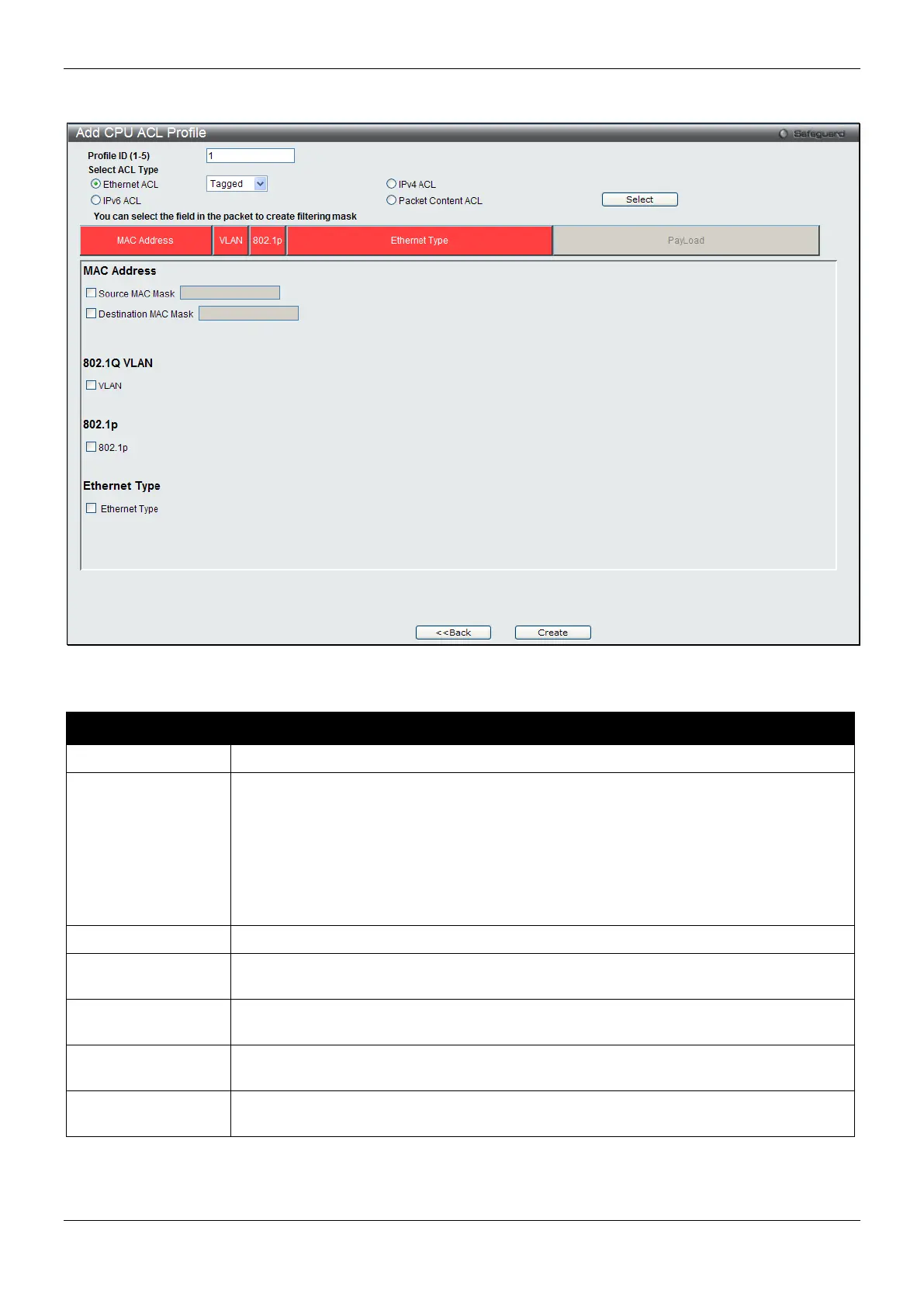

Figure 7-24 Add CPU ACL Profile (Ethernet ACL)
The fields that can be configured are described below:
Parameter Description
Enter a unique identifier number for this profile set. This value can be set from 1 to 5.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet
content mask. This will change the window according to the requirements for the type of
profile.
Select Ethernet to instruct the Switch to examine the layer 2 part of each packet header.
Select IPv4 to instruct the Switch to examine the IPv4 address in each frame's header.
Select IPv6 to instruct the Switch to examine the IPv6 address in each frame's header.
Select Packet Content Mask to specify a mask to hide the content of the packet header.
Enter a MAC address mask for the source MAC address.
Destination MAC
Enter a MAC address mask for the destination MAC address.
802.1Q VLAN
Selecting this option instructs the Switch to examine the VLAN identifier of each packet
header and use this as the full or partial criterion for forwarding.
802.1p
Selecting this option instructs the Switch to specify that the access profile will apply only
to packets with this 802.1p priority value.
Ethernet Type
Selecting this option instructs the Switch to examine the Ethernet type value in each
Click the Select button to select a CPU ACL type.
Click the Create button to create a profile.
Click the <<Back button to discard the changes made and return to the previous page.
