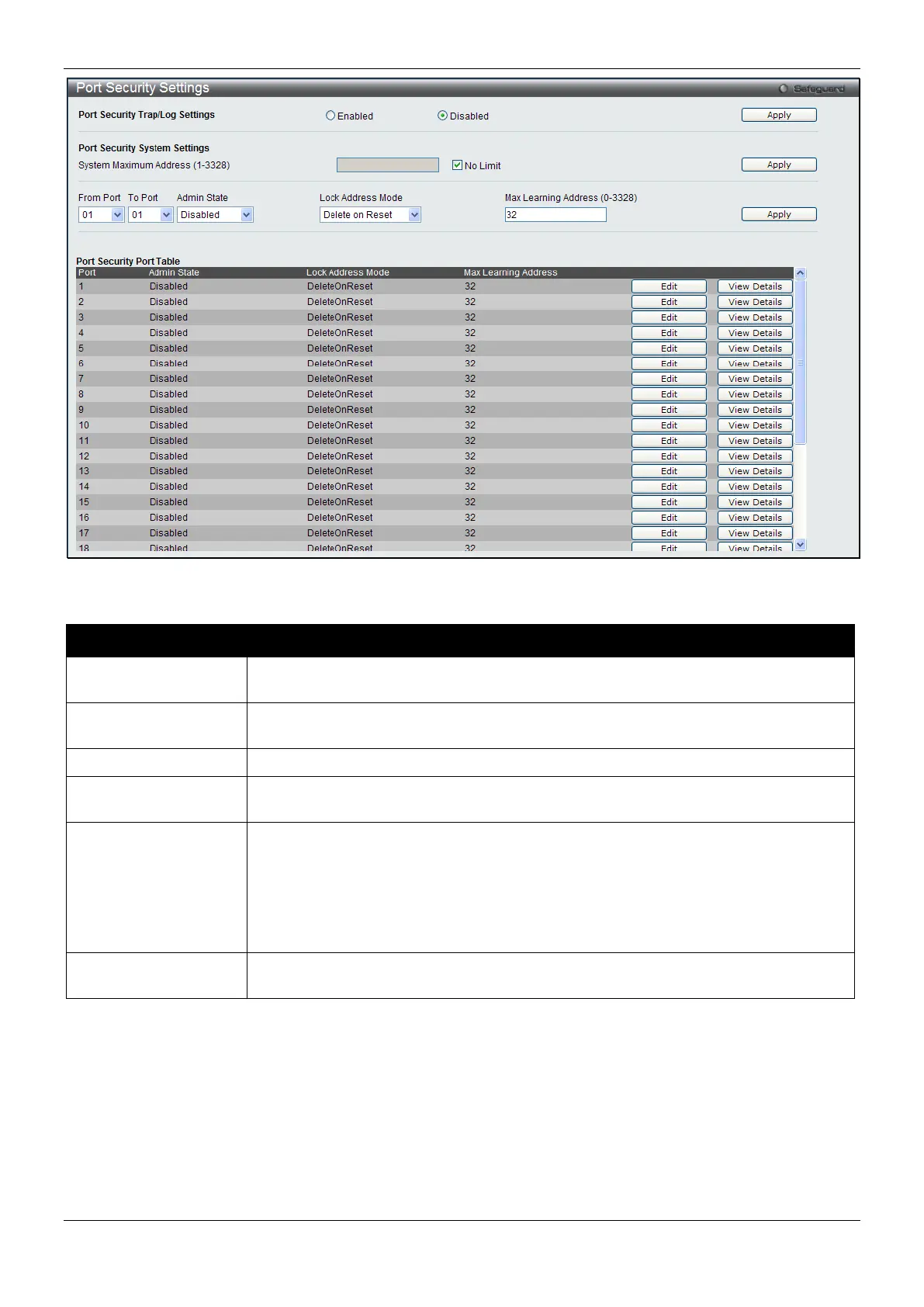

Figure 8-38 Port Security Settings window
The fields that can be configured are described below:
Parameter Description
Port Security
Trap/Log Settings
Click to enable or disable Port Security Traps and Logs on the Switch.
System Maximum
Address (1-3328)
Enter the system maximum address. Tick the No Limit check box to have unlimited
system addresses.
From Port / To Port
Use the drop-down menus to select a range of ports to be configured.
Admin State
Use the drop-down menu to enable or disable Port Security (locked MAC address
table for the selected ports).
Lock Address Mode
This drop-down menu allows the option of how the MAC address table locking will be
implemented on the Switch, for the selected group of ports. The options are:
Permanent – The locked addresses will only age out after the Switch has been reset.
DeleteOnTimeout – The locked addresses will age out after the aging timer expires.
DeleteOnReset – The locked addresses will not age out until the Switch has been
reset or rebooted.
Max Learning
Address (0-3328)
Specify the maximum value of port security entries that can be learned on this port.
Click the Apply button to accept the changes made for each individual section.
Click the Edit button to re-configure the specific entry.
Click the View Details button to display the information of the specific entry.
After clicking the View Details button, the following page will appear:
