xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
56

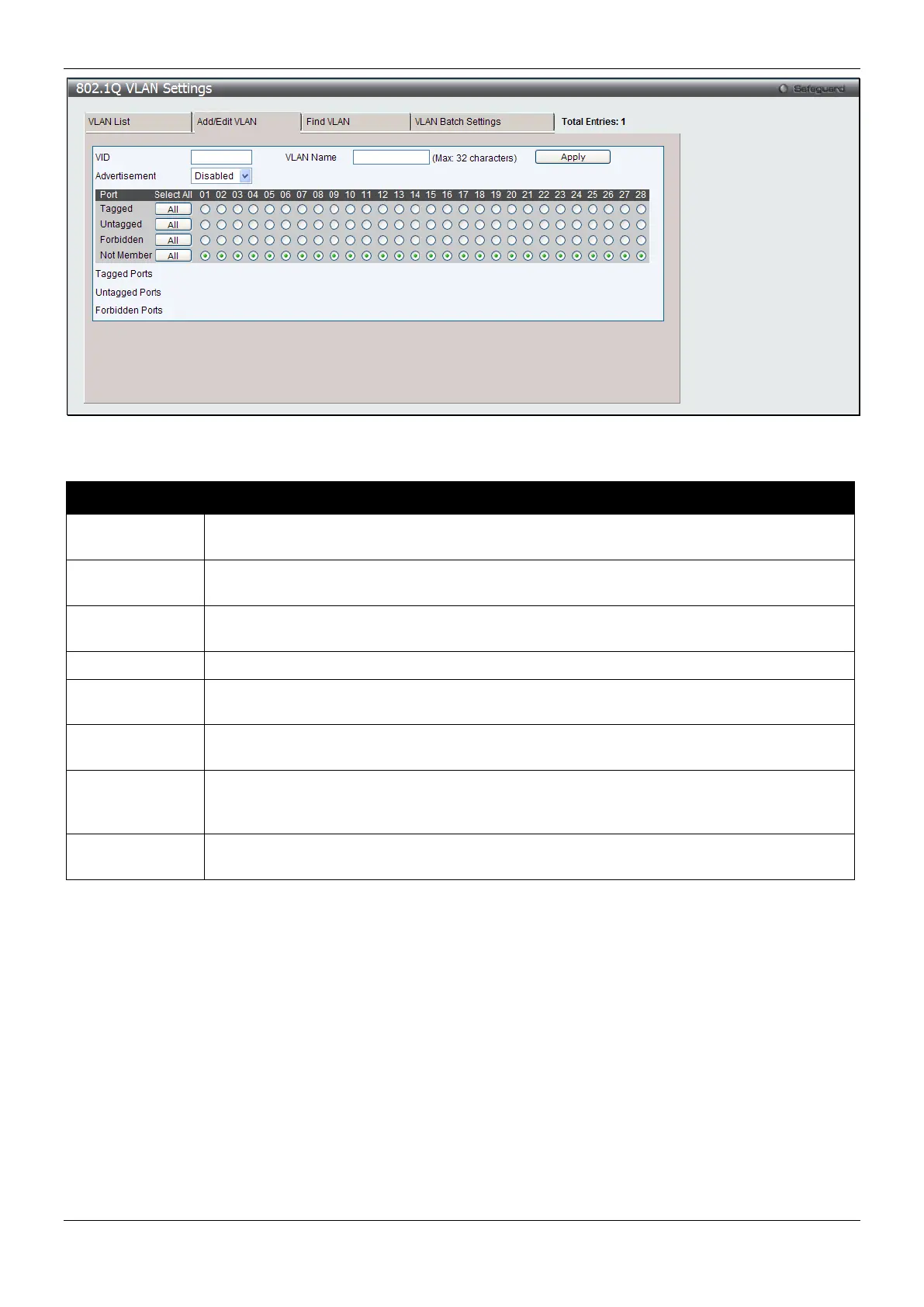

Figure 4-5 802.1Q VLAN Settings – Add/Edit VLAN Tab window
The fields that can be configured are described below:
Parameter Description
VID Allow the entry of a VLAN ID or displays the VLAN ID of an existing VLAN in the Add/Edit
VLAN tab. VLANs can be identified by either the VID or the VLAN name.
VLAN Name Allow the entry of a name for the new VLAN or for editing the VLAN name in the Add/Edit
Advertisement
Enable this function to allow the Switch sending out GVRP packets to outside sources,
notifying that they may join the existing VLAN.
Display all ports of the Switch for the configuration option.
Tagged
Specify the port as 802.1Q tagging. Clicking the radio button will designate the port as
tagged. Click the All button to select all ports.
Untagged
Specify the port as 802.1Q untagged. Clicking the radio button will designate the port as
untagged. Click the All button to select all ports.
Forbidden
Click the radio button to specify the port as not being a member of the VLAN and that the
port is forbidden from becoming a member of the VLAN dynamically. Click the All button to
Not Member
Click the radio button to allow an individual port to be specified as a non-VLAN member.
Click the All button to select all ports.
Click the Apply button to accept the changes made.
To search for a VLAN, click the Find VLAN tab. A new tab will appear, as shown below.
