Daher TBM 930 - Page 710

Pilot's Operating Handbook
Section 8
Handling, servicing and maintenance
Edition 1 - January 15, 2018
Rev. 4
Page 8.9.12

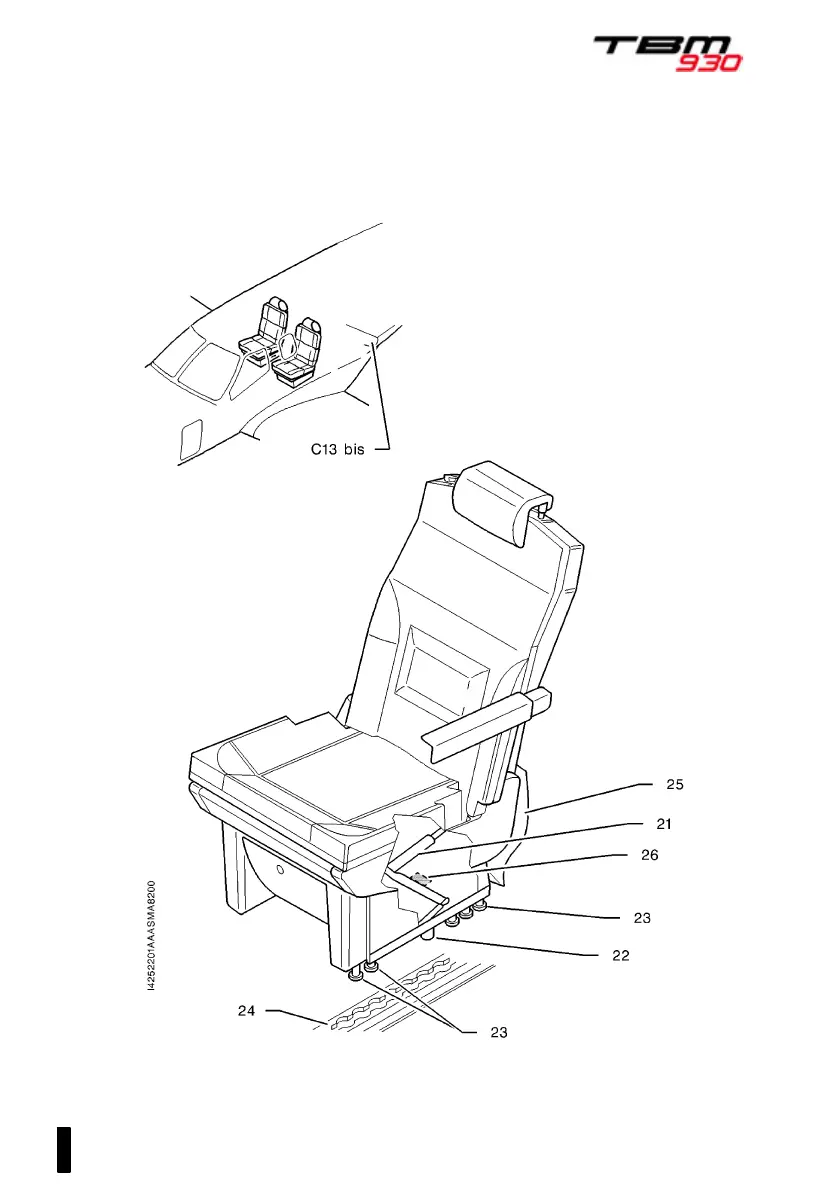

Figure 8.9.2 - Removal / installation of intermediate seat
21)
Locking
handle
22) Lock
23) Pad
24) Rail
25) Backrest bottom upholstery
26) Seats heaters connector
(if installed)
PIM - DO NOT USE FOR FLIGHT OPERATIONS
