Pilot's Operating Handbook

Section 8

Handling, servicing and maintenance

Edition 1 - January 15, 2018

Rev. 4

Page 8.9.13

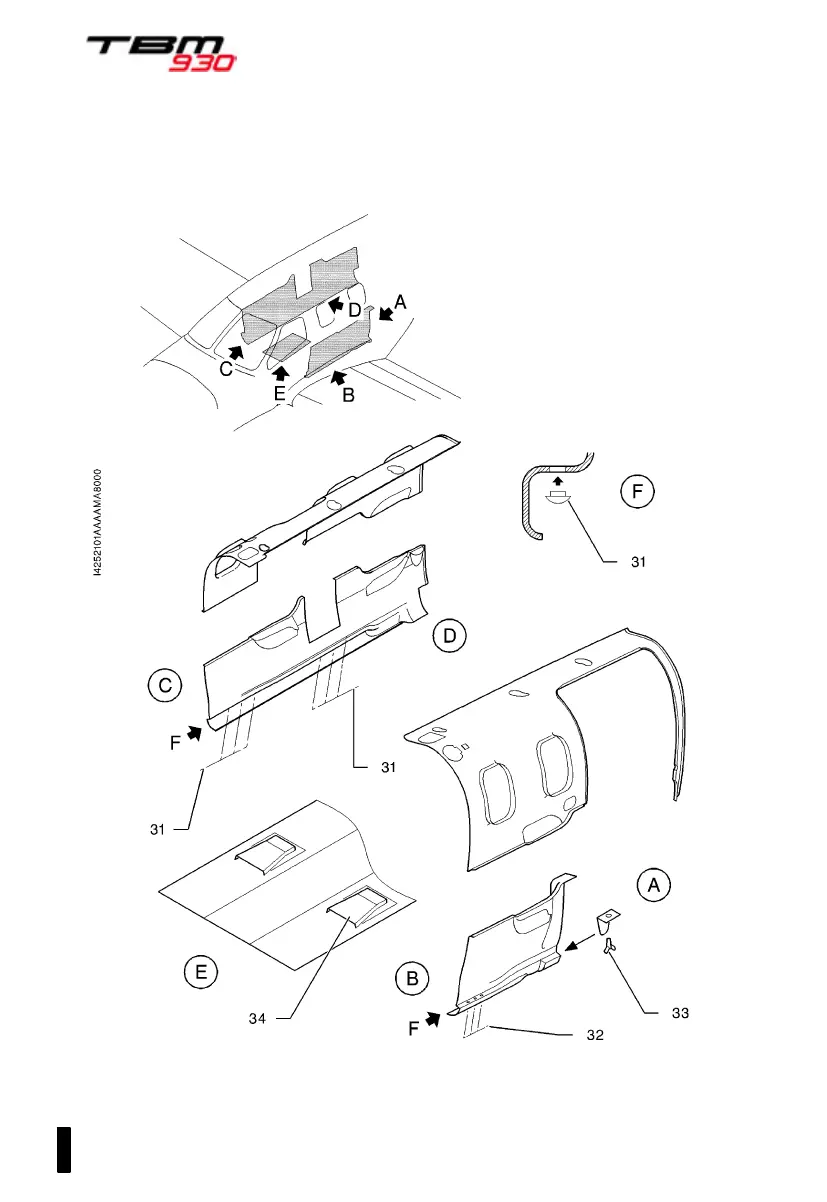

Figure 8.9.3 - Cabin comfort - Installation of blanking plugs and deflector

31)

Blanking

plug

32) Blanking plug

33) Blanking device assy

34) Deflector

PIM - DO NOT USE FOR FLIGHT OPERATIONS
