Daikin ACS320 - Parameters Mode

Parameters Mode

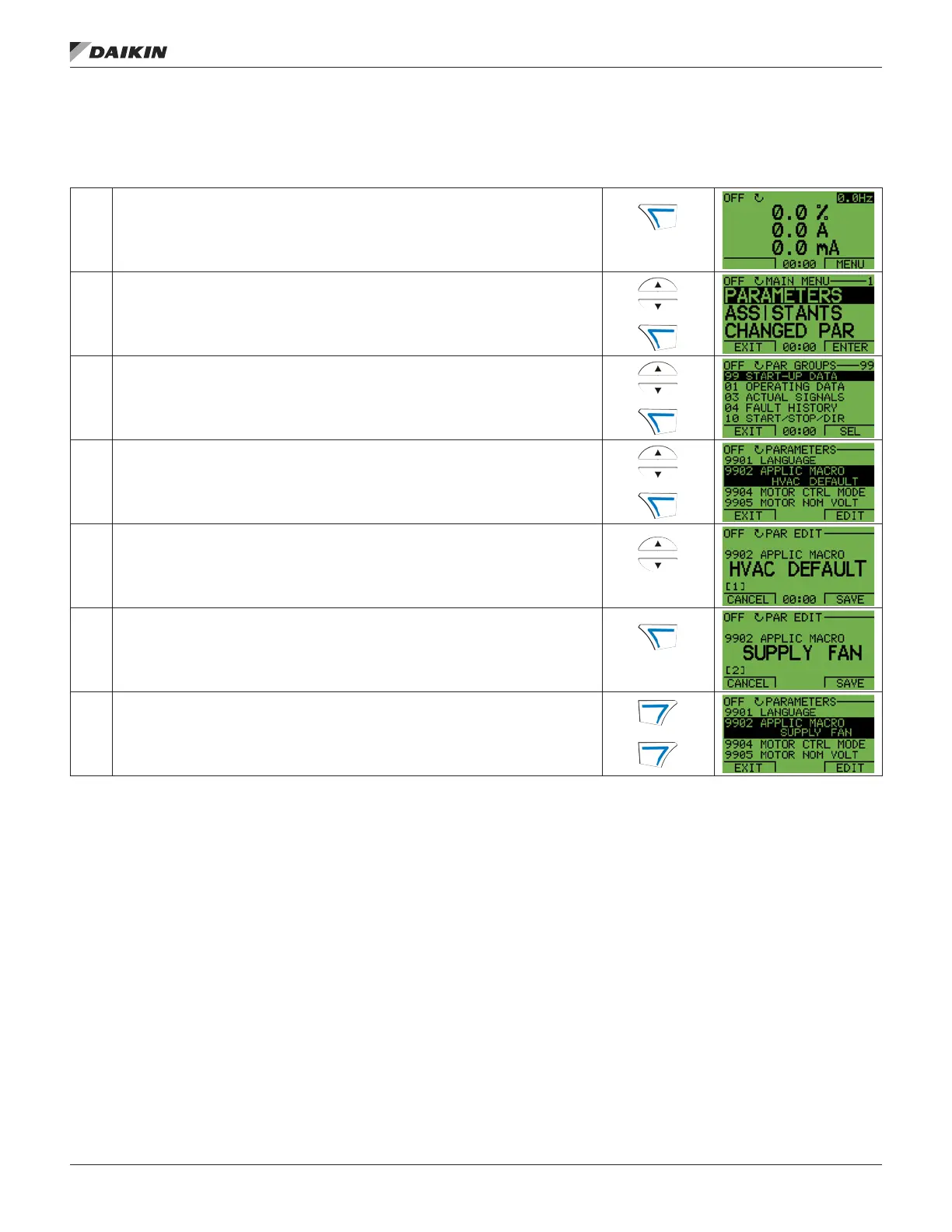

Figure 11: Changing in the Parameters
NOTE: The current parameter value appears below the
highlighted parameter.
To view the default parameter value, press the UP/
DOWN buttons simultaneously.
The most typical and necessary parameters to
change are parameter groups 99 Start-up data, 10
Start/Stop/Dir, 11 Reference Select, 20 Limits, 21
Start/Stop, 22 Accel/Decel, 30 Fault Functions and
98 & 53 Groups for Comms.
To restore the default factory settings, select the
application macro HVAC default.
To change the parameters, follow these steps:
1
Select MENU to enter the main menu.
2
Select the Parameters mode with the UP/DOWN buttons and
select ENTER to select the Parameters mode.
3
Select the appropriate parameter group with
the UP/DOWN buttons and select SEL
4
Select the appropriate parameter in a group
with the UP/DOWN buttons.
Select EDIT to change the parameter value.
5
Press the UP/DOWN buttons to change the parameter value.
6
Select SAVE to store the modied value or select CANCEL to leave the set
mode.
• Any modications not saved are cancelled.
• Each individual parameter setting is valid immediately after pressing SAVE.
7
Select EXIT to return to the listing of parameter groups,
and again to return to the main menu.
To complete the control connections by manually entering the parameters, see Parameters Mode above.
For detailed hardware description, see the “Technical Data” starting on page 102 .
