HVAC Default
This macro provides the factory default parameter settings
for the MD4. Factory defaults can be restored at any time by
setting parameter 9902 to 1. The diagram below shows typical
wiring using this macro. When using direct speed reference in
AUTO mode or process PID, see “General Considerations” on
page 73.

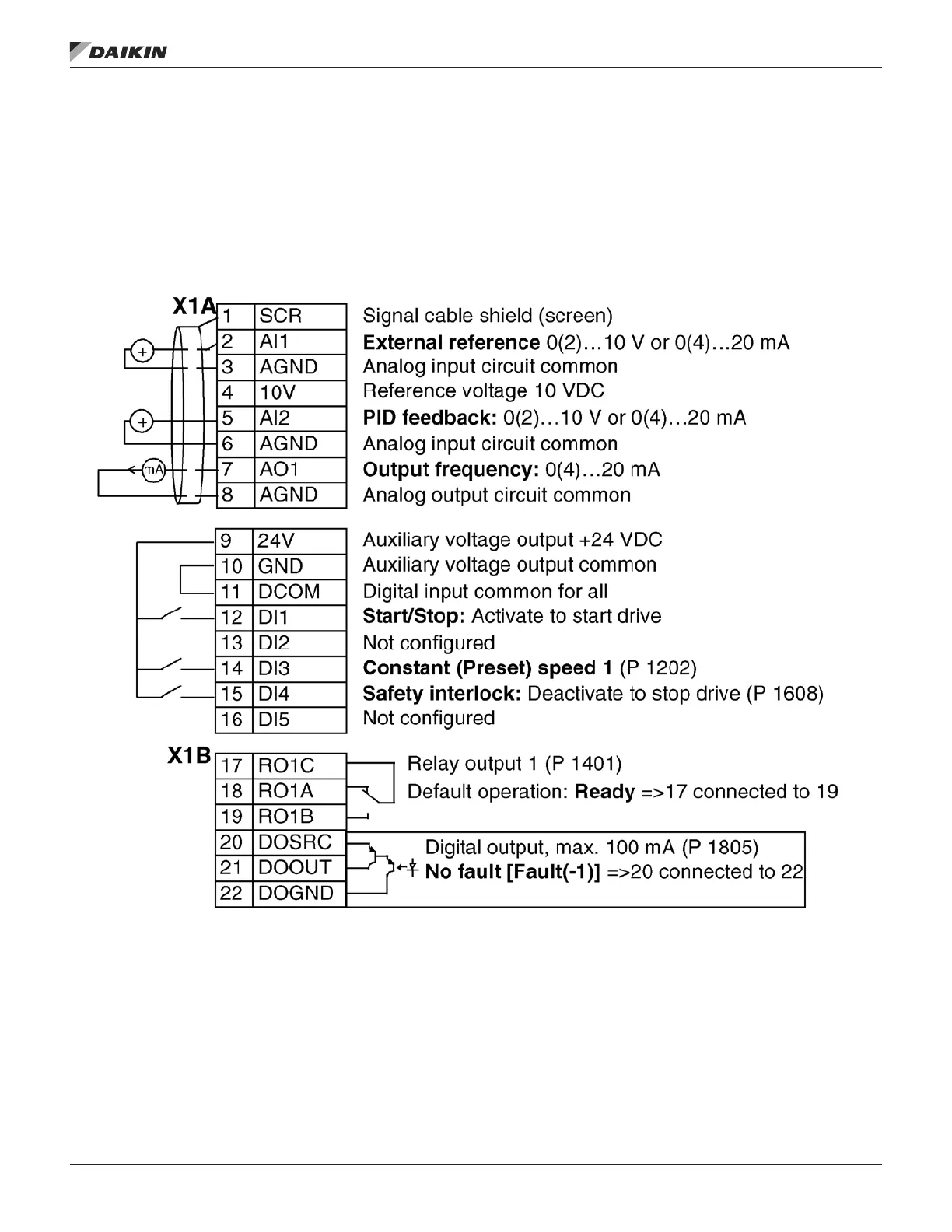

Figure 17: MD4 HVAC Defaults
Recommended Daikin adjustments to the “HVAC Default” are shown on page 108
sTarT up
www.DaikinApplied.com 23 OM 1190-1 • MD4 VFD
