D-EIMHP01702-23_00EN- 18/72
3 OPERATING LIMITS
Storage
The unit, in XS version, must be installed and stored indoor.
The unit, in XR version, must be protected from dust, rain, constant exposure to the sun and possible corrosive agent when being
stored outside before installation (both Indoor and Outdoor installation).
Even though it is covered by a heat-shrinking plastic sheet, it is not intended for long-term storage and must be removed as soon as
the unit is unloaded. It must in fact be protected by tarpaulins and the like which are more suitable for the long term.
Environmental conditions must be within the following limits:
Minimum ambient temperature: -20°C
Maximum ambient temperature: +45°C
Maximum relative humidity: 95% without condensation. If the unit is stored at a temperature under the minimum ambient temperature,
the components could be damaged, while at a temperature above the maximum ambient temperature, the safety valves could open
and discharge the refrigerant into the atmosphere.
Lastly, storage in places with condensation of humidity can damage the electric components.
Operating limits
Operation out of the mentioned limits may damage the unit.
In case of doubts contact manufacturer representative.

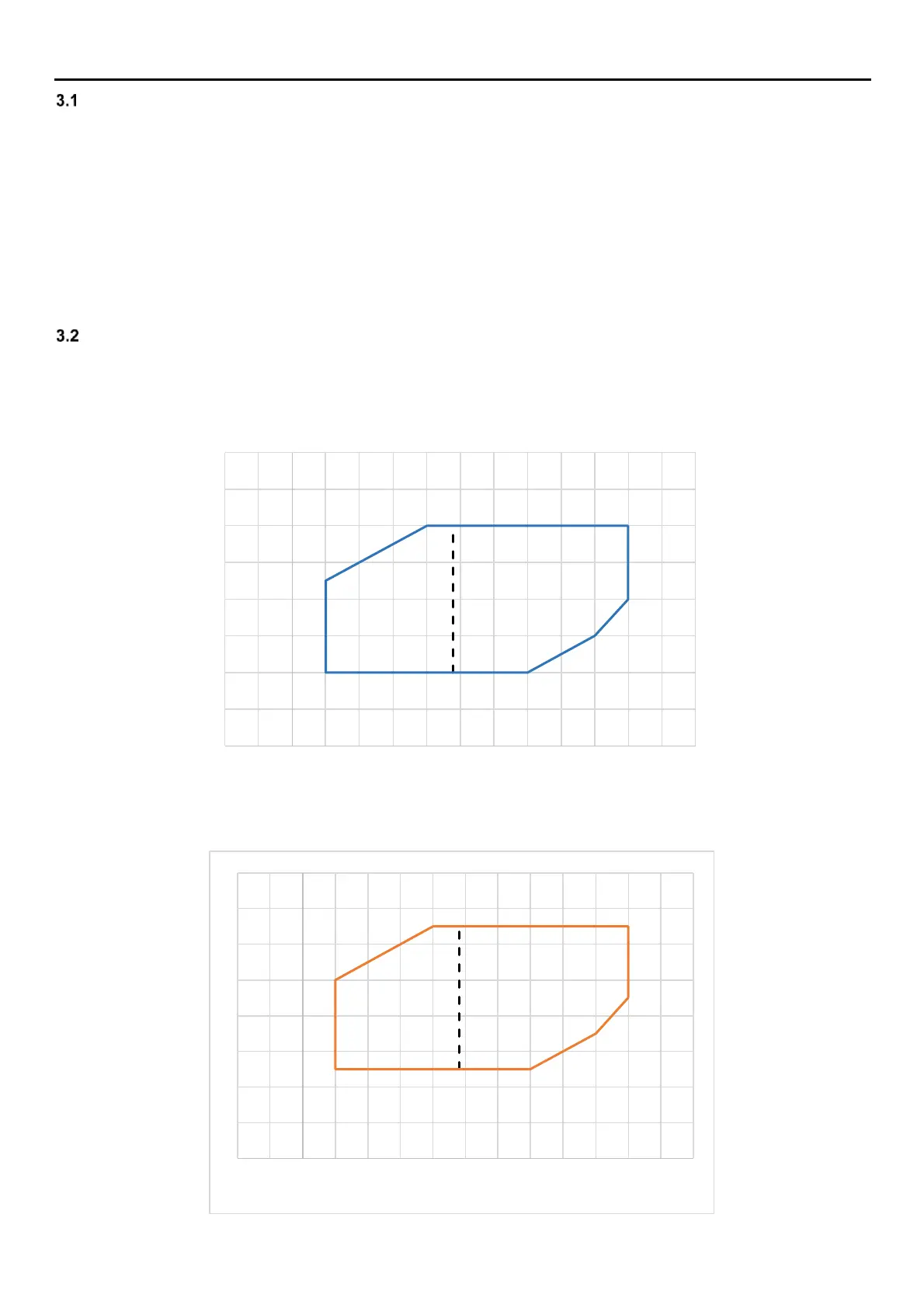

Fig. 6 – EW(W/H)T-Q Operating limits
Fig. 7 – EWLT-Q Operating limits
0
10
20
30
40
50
60
70
80
-30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40
A
B
0
10
20
30
40
50
60
70
80
-30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40
B
A
Water Temperature exiting the Evaporator
(°C)
Water temperature
exiting
the Condenser (°C)
Refrigerant
saturated condensing temperature [°C]
Water Temperature exiting the Evaporator (°C)
