Daikin EWWT100Q - Fig. 59 - Positions of the Temperature Probes for 3 and 5 Manifold

D-EIMHP01702-23_00EN- 59/72
• Evaporator inlet temperature probe (only when pump module is supplied)
• Evaporator outlet temperature probe (only when pump module is supplied)
• Condenser inlet temperature probe (only when pump module is supplied)
• Condenser outlet temperature probe (only when pump module is supplied)
In the following figure are shown the positions of the manifold probes.

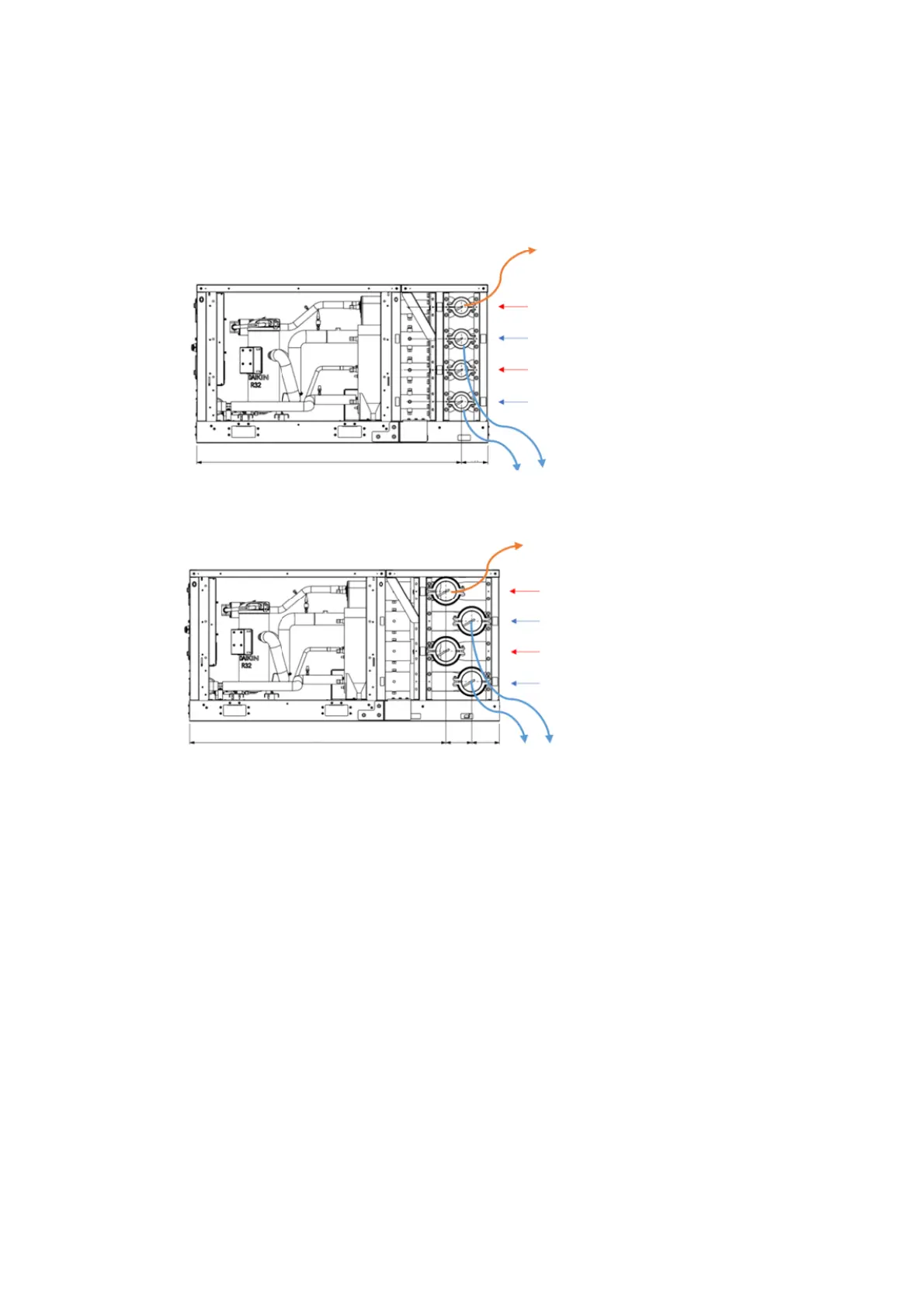

Fig. 59 – Positions of the temperature probes for 3” and 5” manifold
Common condenser leaving
temperature probe
CONDESNSER OUT
EVAPORATOR IN (FOR EWWT)
EVAPORATOR OUT (FOR EWHT)
CONDESNSER IN
EVAPORATOR OUT (FOR EWWT)
EVAPORATOR IN (FOR EWHT)
Common evaporator leaving
temperature probe (to put in the
evaporator outlet)
Common condenser leaving
temperature probe
CONDESNSER OUT
EVAPORATOR IN (FOR EWWT)
EVAPORATOR OUT (FOR EWHT)
CONDESNSER IN
EVAPORATOR OUT (FOR EWWT)
EVAPORATOR IN (FOR EWHT)
Common evaporator leaving
temperature probe (to put in the
evaporator outlet)
MANIFOLD 3”
MANIFOLD 5”
[66.2 inches]
1682 mm
[6.6 inches]
168 mm
[66.8 inches]
1697 mm
[7.2
inches]
183 mm
[6.7
inches]
170 mm
