D-EIMHP01702-23_00EN- 52/72

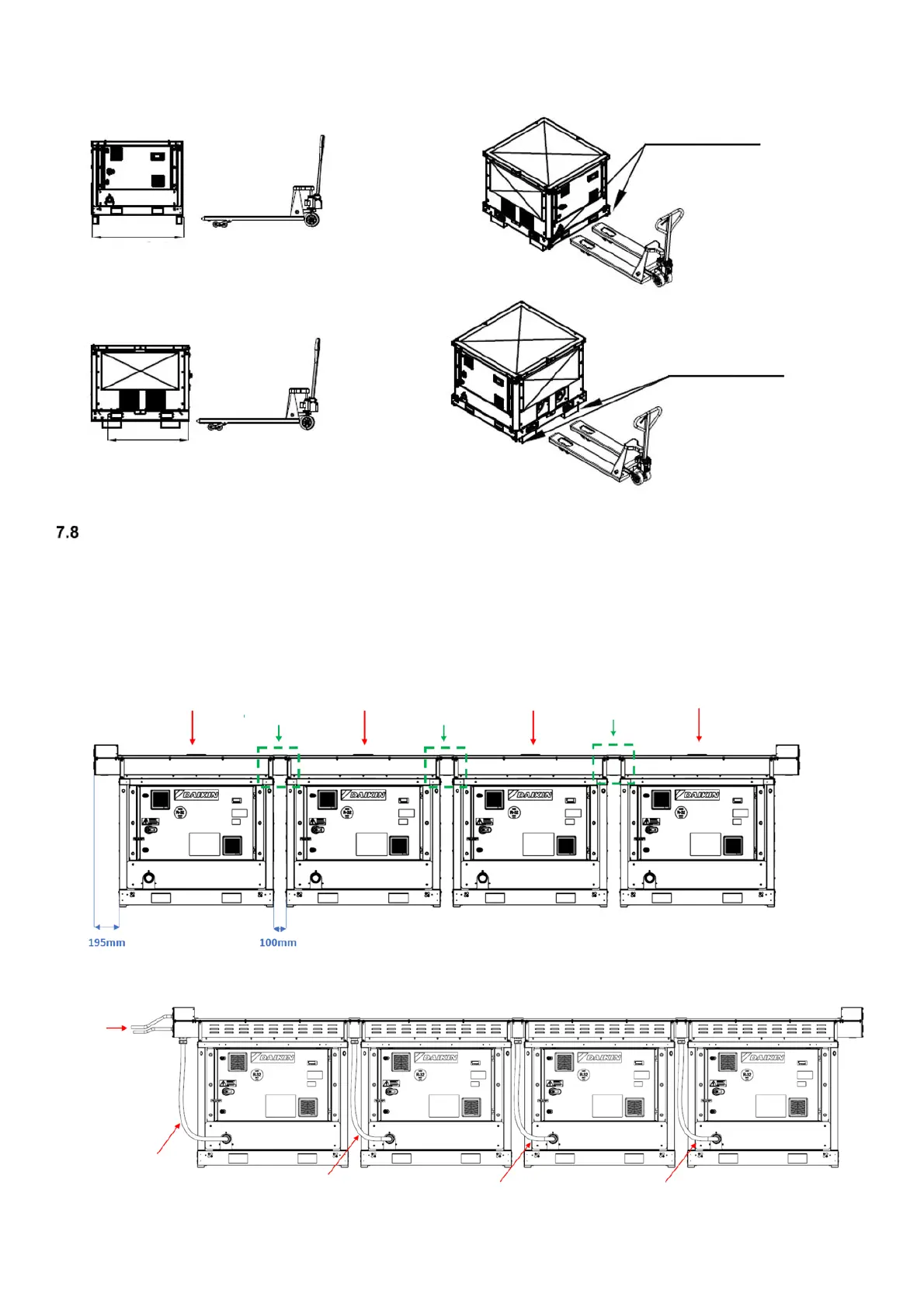

Fig. 48 – Handling of pump module using for pallet truck
Electrical installation of modules
Unit modules can be electrically connected together through a power bar system. Each unit module is equipped with a power bar
module with fuses inside and the power bar modules are connected together with connection modules.
A box is present on both sides of the power bar system in order to permit the cables routing.
Fig. 49 – Power bar system
Fig. 50 – Cables routing between bar system and unit
