D-EIMHP01702-23_00EN- 45/72

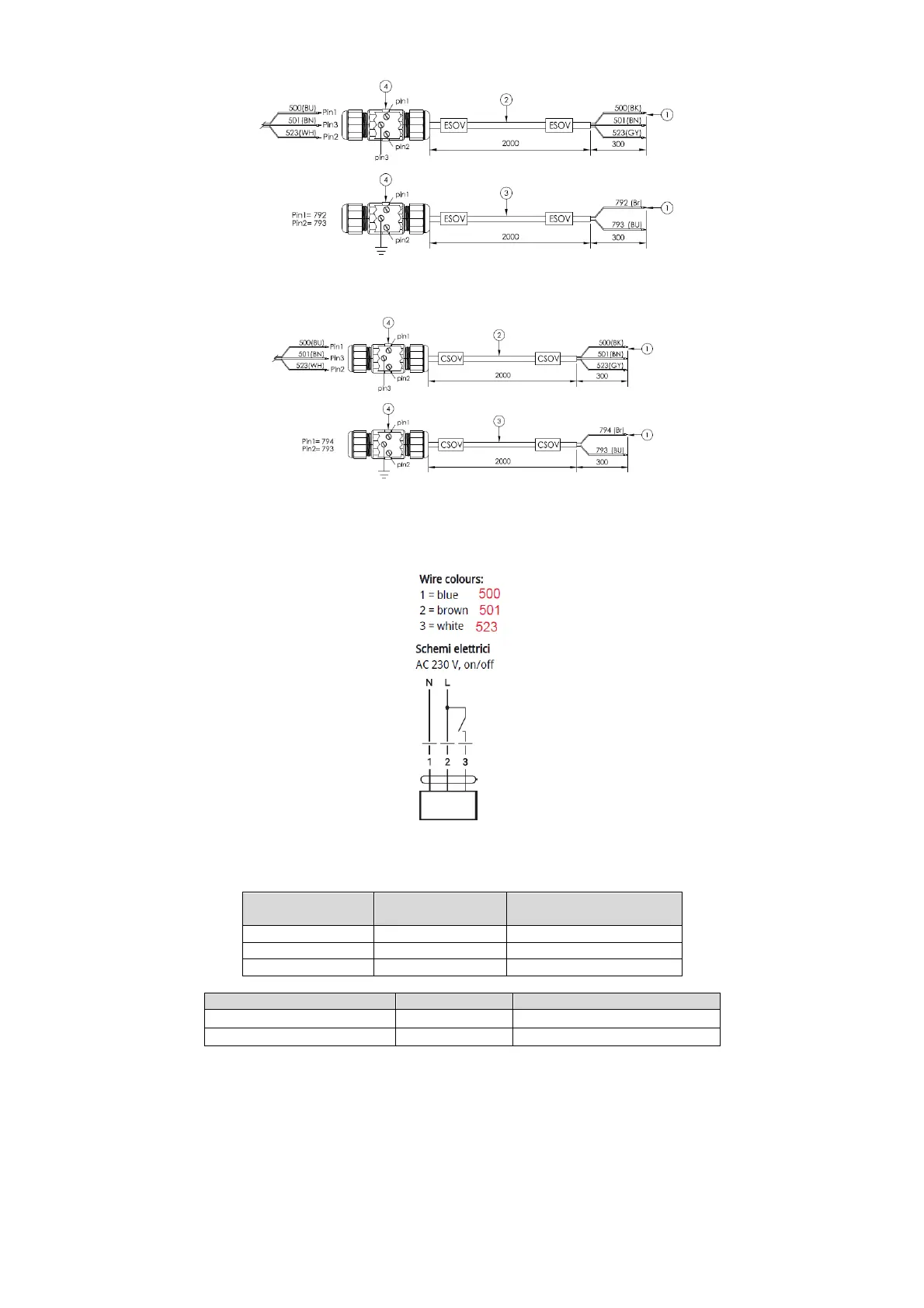

Fig. 33 – Cable adapters for evaporator shut off valve actuator and limit switches
Fig. 34 – Cable adapters for condenser shut off valve actuator and limit switches
Fig. 35 – Shut off valve actuator wiring diagram
The electrical connection between the shut-off valve components and the junction cables is set out in table below.
Cable from Motor
Junction Cable
Cable from electrical
cabinet
(Pin1) blue
500
(Pin1) black
(Pin2) brown
501
(Pin2) brown
(Pin3) white
523
(Pin3) grey
Cable from Limit Switches
Junction Cable
Cable from electrical cabinet
S1 (Violet)
(Pin1) 792
(Pin1) brown
S3 (White)
(Pin2) 793
(Pin2) blue
In figures below is shown the cables routing of valve actuator.
