Handling of the Modules
The packaging from the factory permits lifting with a suitable crane. Ensure straps are in good working condition and that they are
rated for the weight of the machines. Spreader bars may be required for effective rigging and to avoid damage to the chiller modules.
The system arrives fully charged with refrigerant.
The manifold can be handled by forklift using the holes in the base frame, or by pallet truck if wooden spacers are present.

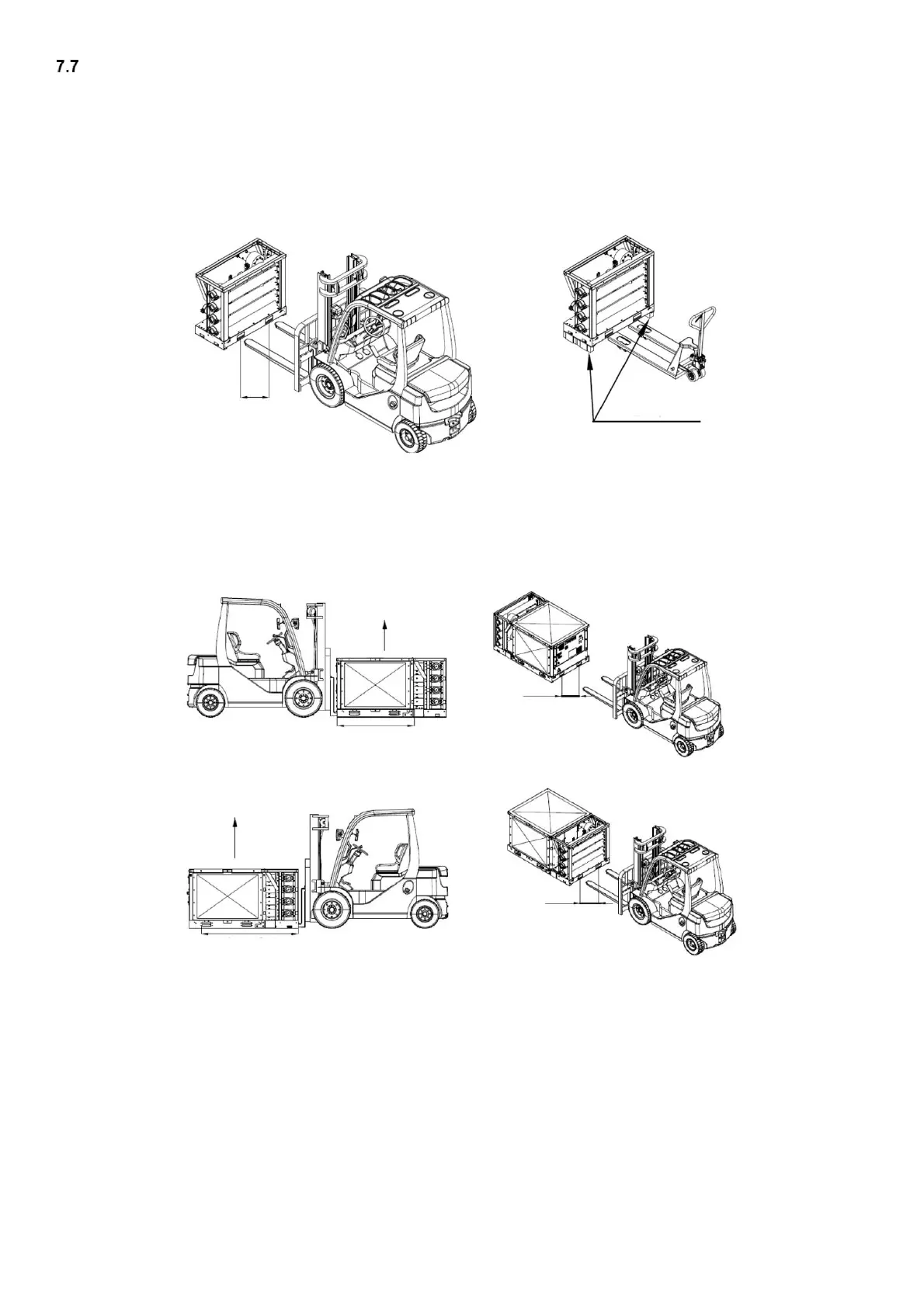

Fig. 44 – Handling of manifold module
The module consists of the unit and the manifold connected; it can be lifted by forklift. Only the base frame holes must be used to lift
the module.
Fig. 45 – Handling of unit and manifold modules
