D-EIMHP01702-23_00EN- 49/72

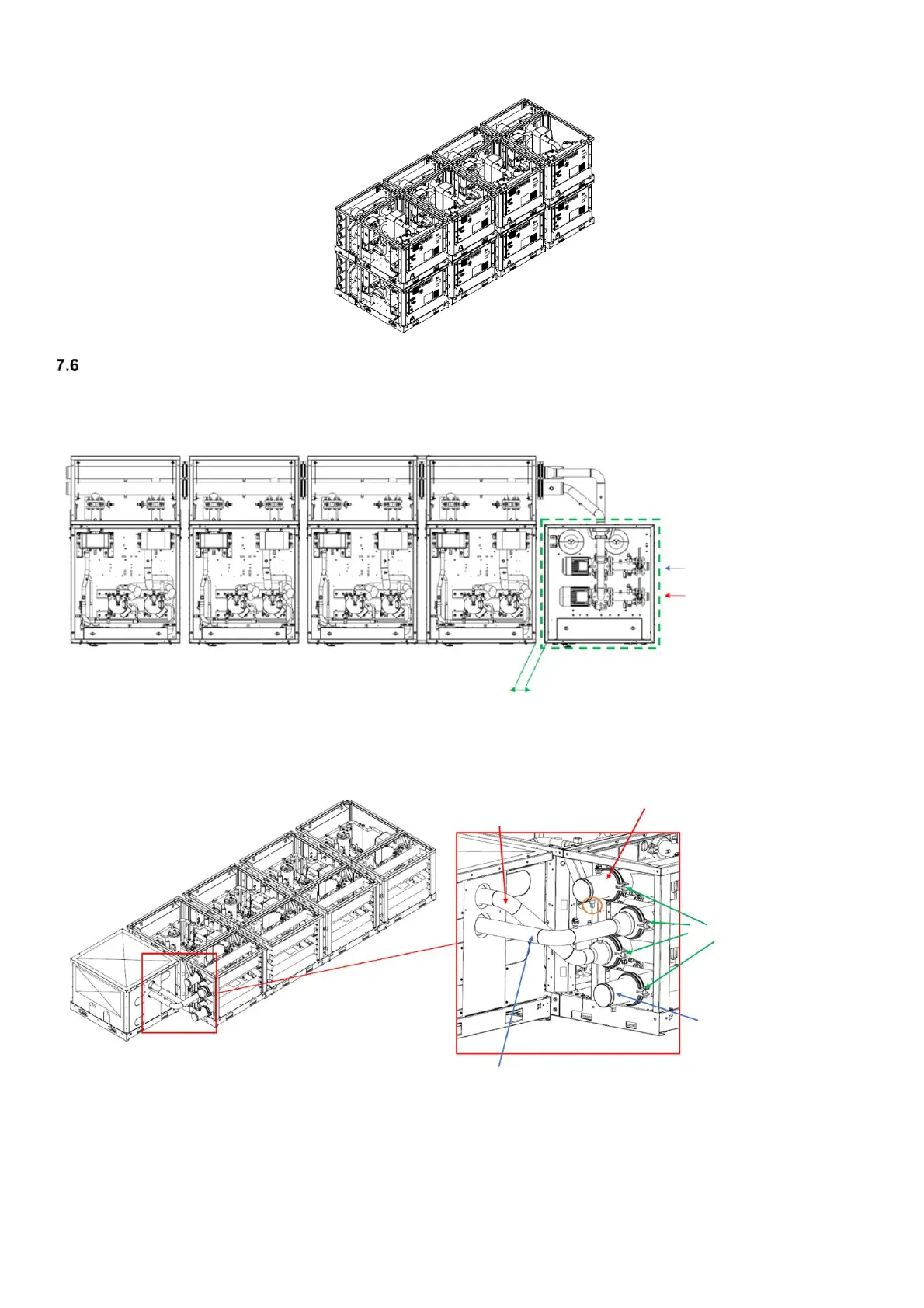

Fig. 41 – Mounting instructions for more unit-manifold systems together

Pump module installation

If pump module is installed, it is advisable to install the master module near to the pump module.

Fig. 42 – Pump module installation

Fig. 43 – Pump module installation – piping details

The pump module can be installed only on one side of the unit- manifold system.

The water inlet installation is constrained to the pump suction.

EVAPORATOR IN

CONDENSER IN

PUMP MODULE

100 mm

[3.94 inches]

VICTAULIC

CONNECTION

CONDENSER LINE OUT

CONDENSER

CONNECTION PIPE

EVAPORATOR

CONNECTION PIPE

EVAPORATOR OUT
