Daikin EWWT100Q - Fig. 64 - Wiring for Connecting the Unit at the Place of Installation

72 pages

Save Page as PDF

To Next Page

To Previous Page

D-EIMHP01702-23_00EN- 67/72

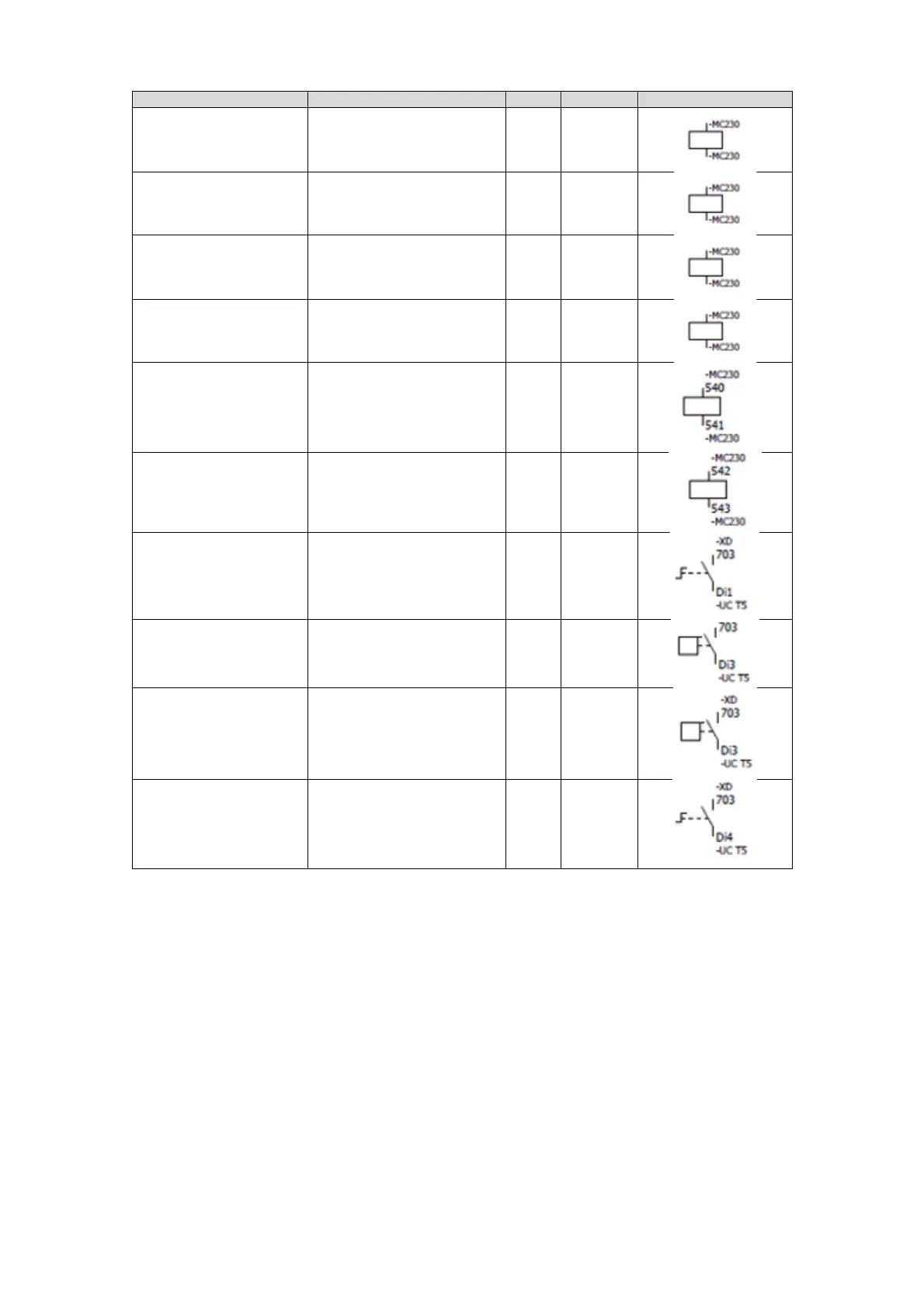

Fig. 64 – Wiring for connecting the unit at the place of installation.

Type signal description

Function

Page

Column

Symbol

Digital Output

EVAP. WATER PUMP 1

Max load 2A-230Vac

External power supply

Digital Output

EVAP. WATER PUMP 1

Max load 2A-230Vac

External power supply

Digital Output

COND. WATER PUMP 1

Max load 2A-230Vac

External power supply

Digital Output

UNIT ALARM

Max load 2A-230Vac

External power supply

Digital Output

COND. WATER PUMP 2

Digital Output

EVAP. WATER PUMP 2

Digital Output

UNIT ON/OFF SWITCH

Digital Output

EVAPORATOR FLOW

SWITCH

Obligatory

Digital Output

EVAPORATOR FLOW

SWITCH

Obligatory

Digital Output

COOL/HEAT SWITCH
