4.5.2.2 Connecting the water inlet pipe containing the flow switch.

The water inlet pipe containing the flow switch is mounted on the side of the water inlet of the evaporator (condenser in case of

EWHT-Q series) and is pre-insulated. Cut the tie wraps and fix the pipe with the supplied Victaulic

couplings to the

evaporator/condenser inlet.

4.5.2.3 Electrical connection of flow switch

The cables routing of evaporator and condenser flow switch is showed in the figures below.

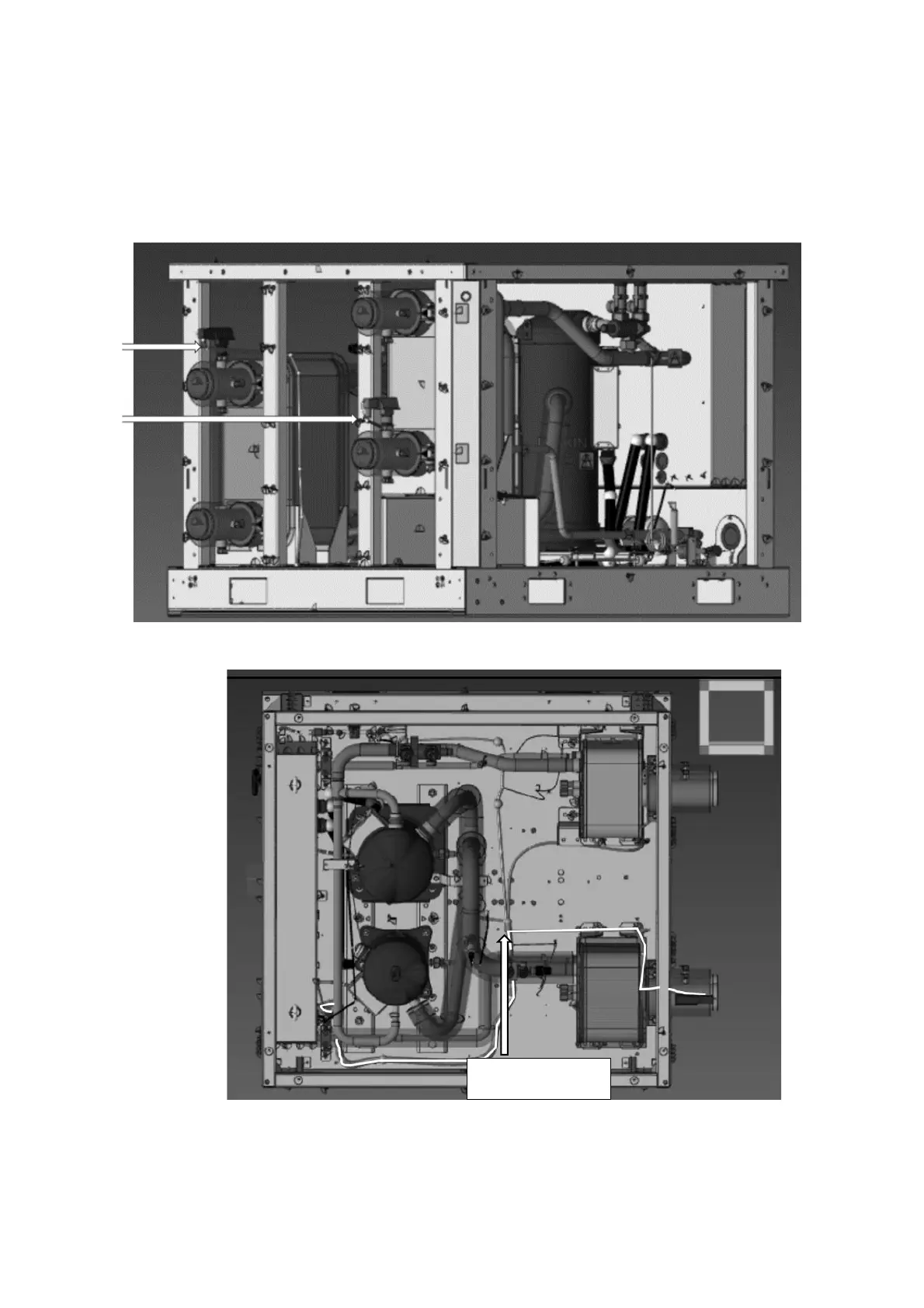

Fig. 12 – Evaporator and condenser flow switch positions

Fig. 13 – Cables routing of evaporator flow switch

•

Evaporator

flow switch

Condenser

flow switch

Evaporator flow

switch cable
