4.5.2.1 Preparing the unit for connection to the water circuit.

A box containing Victaulic

couplings is delivered with the unit.

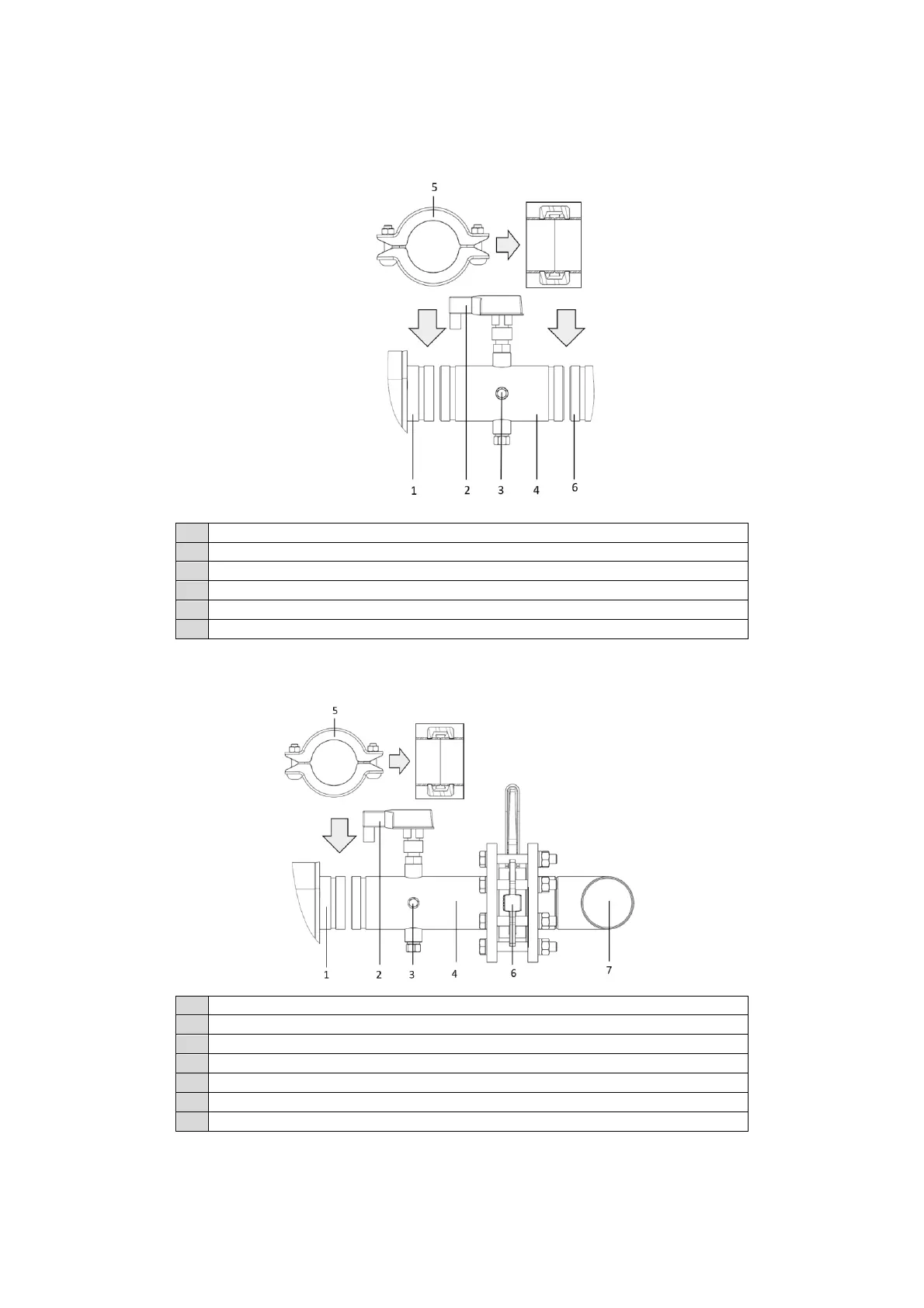

Water IN/OUT accessory kit for standalone units

Evaporator water entry

Flow Switch

Water entry sensor

Water entry pipe with flow switch and temperature sensor of the incoming water

Joint

In situ water pipe circuit

Manifold accessory for modular installation

Evaporator water entry

Flow Switch

Water entry sensor

Water entry pipe with flow switch and temperature sensor of the incoming water

Joint

Butterfly valve

Manifold pipe

As not to damage the parts of the units during transport, the water inlet pipe with the flow switch and the water inlet temperature

sensor and the water outlet pipe with the outlet water temperature sensor, are not factory mounted.
