D-EIMHP01702-23_00EN- 58/72

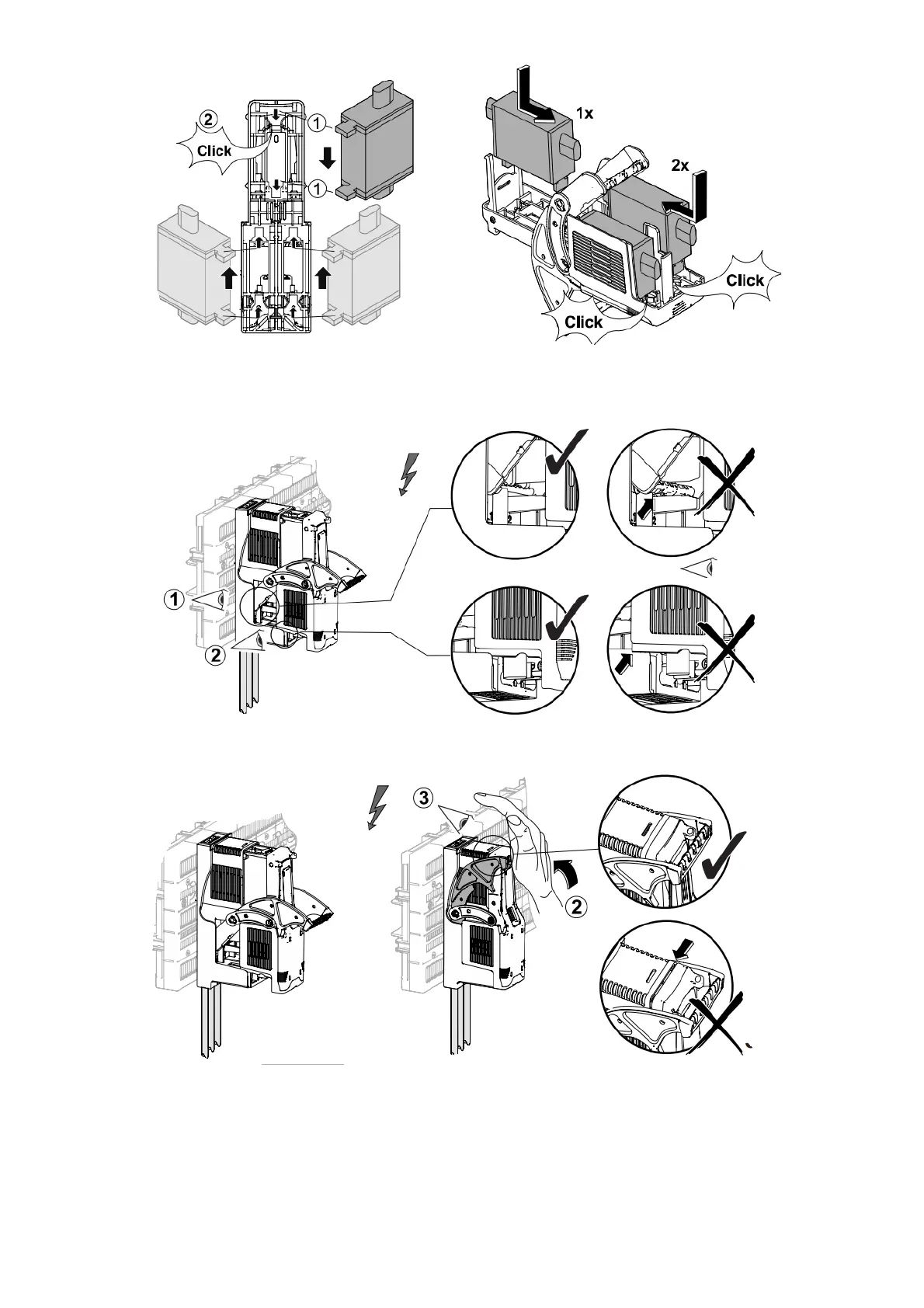

3)Insert the fuses into the body exerting a slight pressure downwards for the single fuse, and a slight pressure upwards for the pair
of fuses: in this way the fuses are hooked.
To extract the fuses: press the single fuse slightly upwards and the pair of fuses slightly downwards.
4)Insert the mobile part of the fuse holder in to the fixed one, being careful not to damage the part.
5)Push the lever of the fuse holder upwards; the mobile part is hooked and slides inwards.
6)Apply power supply to the duct
7.9.1 M/S (MUSE) probes installation
In case of modular application with manifold modules, the system is managed by standard Daikin master/slave (M/S) serial connection
called MUSE.
The MUSE can control the units’ operation thanks to two temperature probes (included in manifold module):
• Common evaporator leaving temperature probe
• Common condenser leaving temperature probe
