Daikin EWWT100Q - Fig. 62 - Evaporator Pressure Drops; Fig. 63 -Condenser Pressure Drops

D-EIMHP01702-23_00EN- 61/72

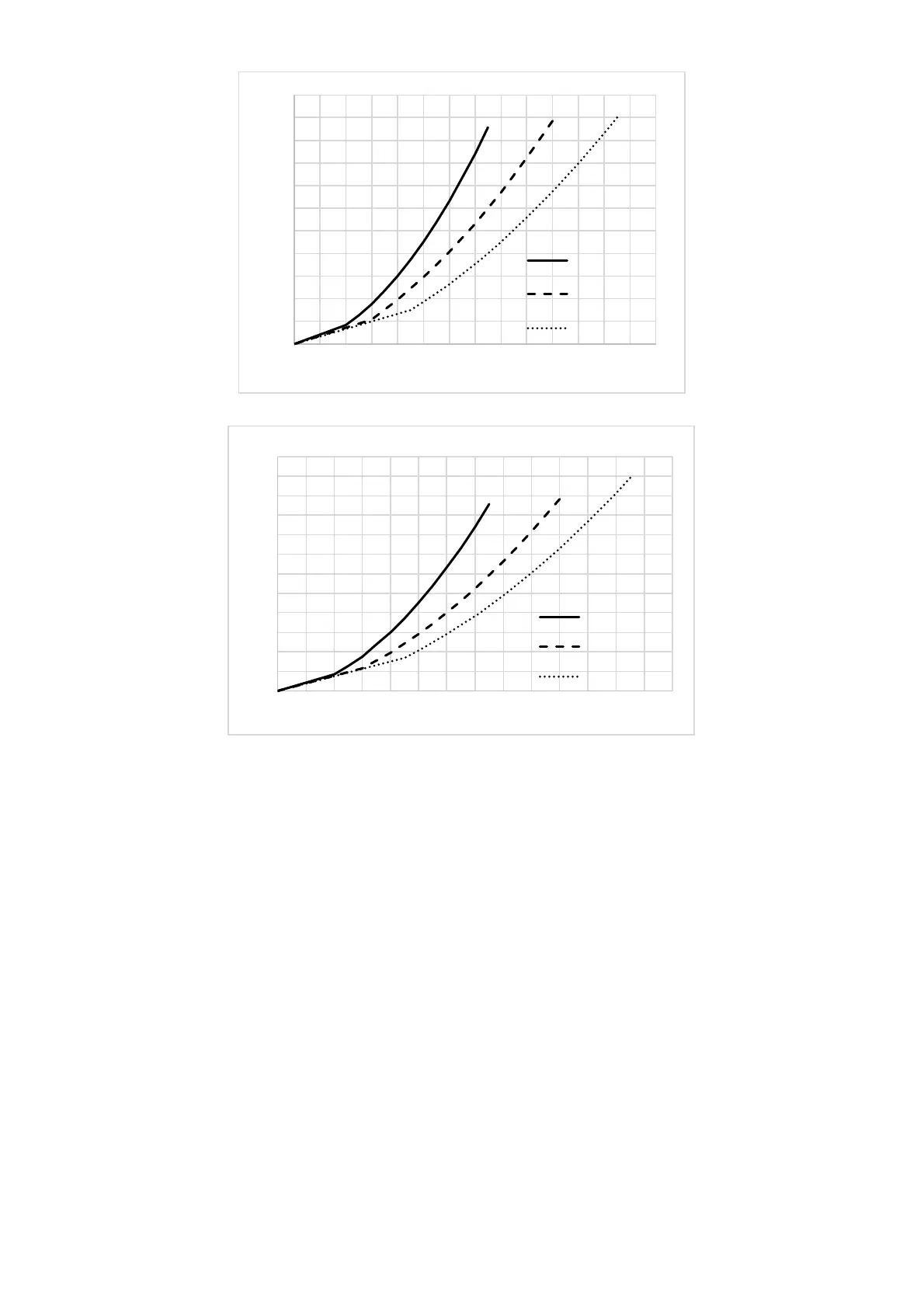

Fig. 62 – Evaporator pressure drops
Fig. 63 –Condenser pressure drops
0,0
5,0
10,0
15,0
20,0
25,0
30,0
35,0
40,0
45,0
50,0
55,0
0,0 1,0 2,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,011,012,013,014,0
Pressure drops [kPa]
Flowrate [l/s]
DP evap - flowrate
EWWT100Q
EWWT125Q
EWWT160Q
0,0
5,0
10,0
15,0
20,0
25,0
30,0
35,0
40,0
45,0
50,0
55,0
60,0
0,0 1,0 2,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0
Pressure drops [kPa]
Flowrate [l/s]
DP cond - flowrate
EWWT100Q
EWWT125Q
EWWT160Q
