Daikin EWWT100Q - Fig. 14 - Cables Routing of Evaporator Flow Switch; Fig. 15 - Electrical Panel Entry Point for Evaporator and Condenser Flow Switch Cables; Fig. 16 - Water Temperature Probe

D-EIMHP01702-23_00EN- 27/72

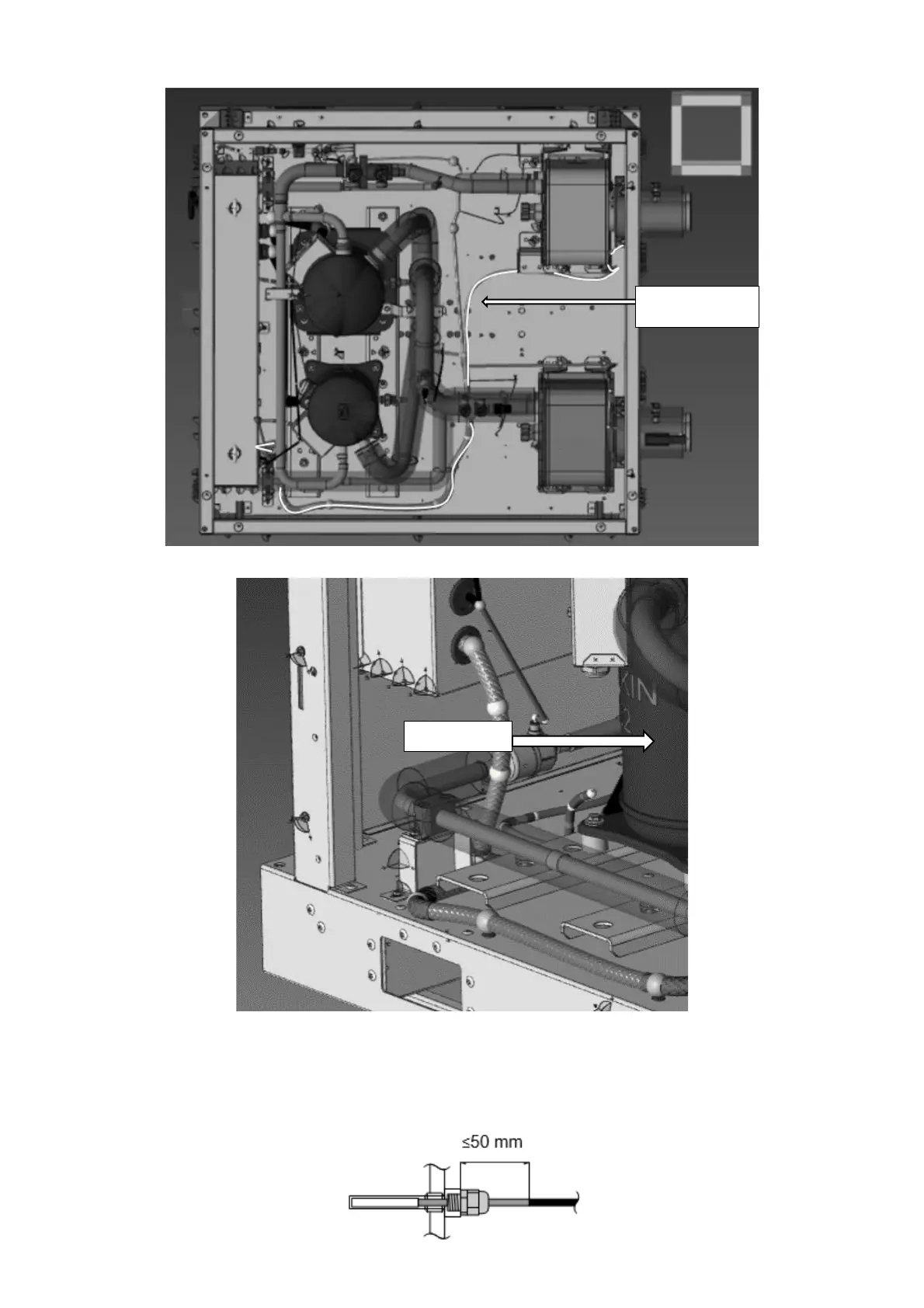

Fig. 14 – Cables routing of evaporator flow switch
Fig. 15 – Electrical panel entry point for evaporator and condenser flow switch cables
4.5.2.4 Connecting the water outlet pipe.
The water outlet pipe is mounted on the side of the water outlet of the evaporator/condenser and is pre-insulated. Cut the tie wraps
and fix the pipe(s) with the supplied Victaulic
®
couplings to the evaporator/condenser outlet(s).
In case of modular application with manifold modules, after installation of the water inlet and outlet pipes, it is recommended to check
the insertion depth of the water temperature sensors into the connection pipes prior the operation (see figure).
Fig. 16 – Water temperature probe
Condenser flow
switch cable
Entry cable
