D-EIMHP01702-23_00EN- 48/72

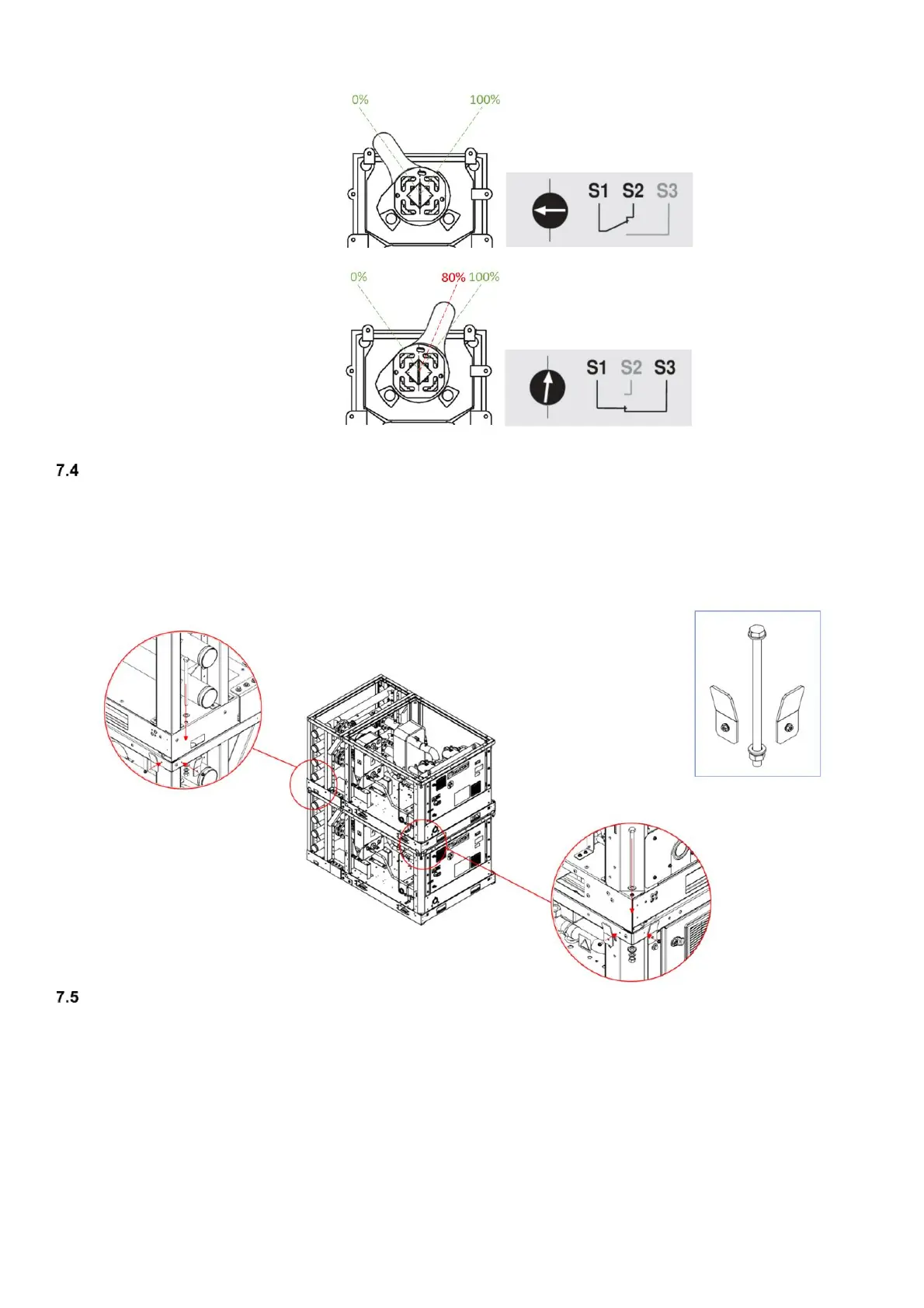

Fig. 39 – Setting of limit switches trigger
Connection of stacked units
The connection of stacked units is possible thanks to “Stacked unit kit” accessory (see figure below). This accessory is mandatory
for this modules configuration.
Fig. 40 – Mounting instructions for stacked units
Connection of more unit-manifold systems together
For the installation of more unit-manifold systems together, are possible two configurations:
• From two to four unit-manifold systems in line
• Installation of two stacked unit-manifold systems
For the second type of installation, the control manages the units of the same level. Thus, there is a control system for each level.
No hydraulic piping is present to connect the two levels.
Stacked units kit
