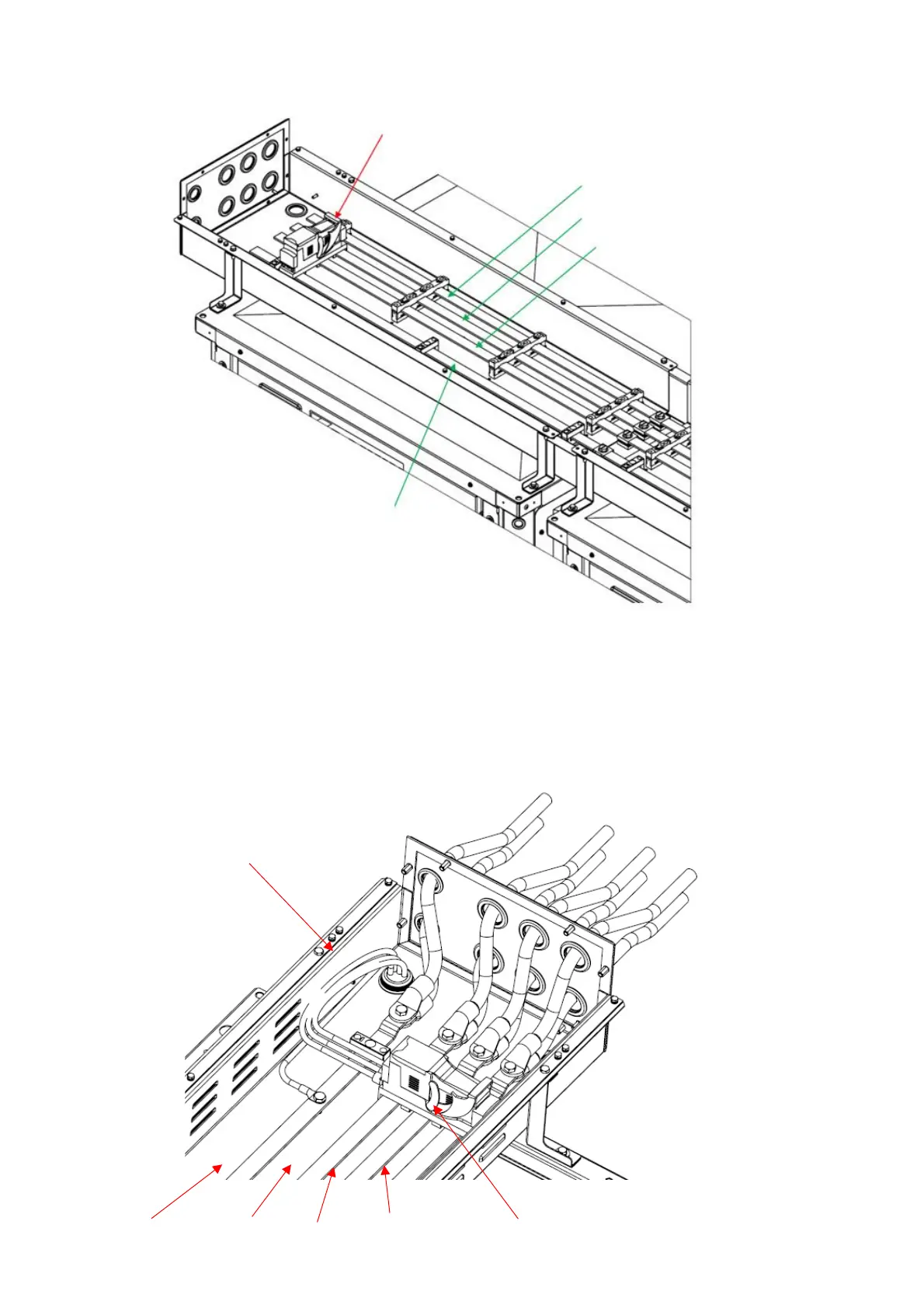

Fig. 55 – Detail of the fuses and of the box for cables routing of the power bar module

The electrical connection of the units to the power bar system is done through a multipolar cable, 3 phases with ground. The three

phases shall be connected to the fuse holder, equipped with each module, and the ground (PE) shall be connected to the ground bar

(Busbar PE).

Fig. 56 – Detail of electrical connection for the initial unit module

NH FUSE SWITCH-DISCONNECTOR

BUSBAR L1

BUSBAR L2

BUSBAR L3

BUSBAR PE

POWER BAR SYSTEM

ELECTRICITY SUPPLY

UNIT MODULE

ELECTRICITY SUPPLY

NH FUSE SWITCH DISCONNECTOR

BUSBAR PE

BUSBAR L3

BUSBAR L2

BUSBAR L1
