6 ELECTRICAL INSTALLATION
To install the main switch handle and shaft
The main switch is provided shipped loose with the unit, it must be installed before any electrical operation.
Open the door of the electrical panel and mount the main switch handle and shaft parts. The handle of the main switch is mounted
on the electrical panel door.

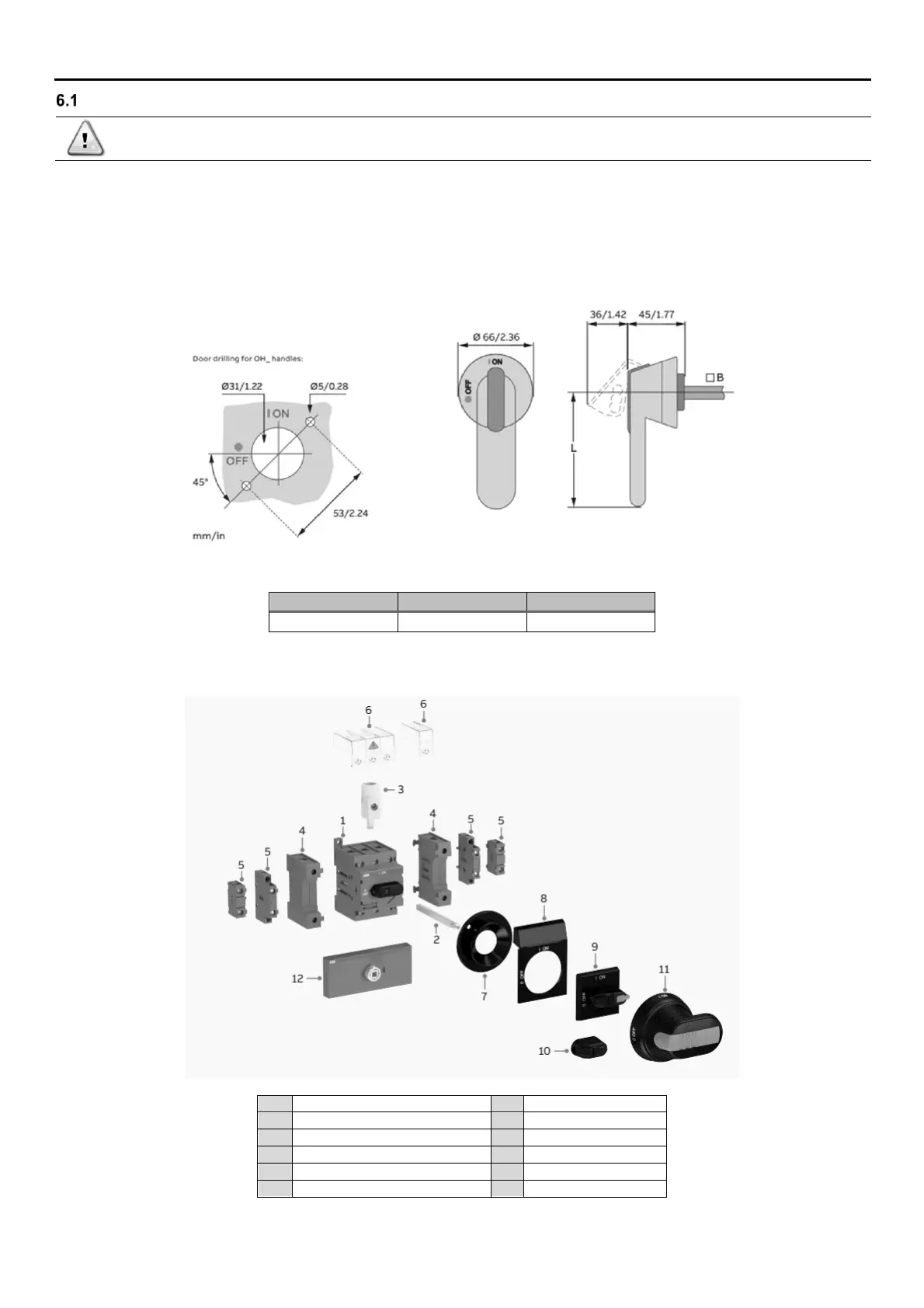

In Fig. 20 – Handle assembly instructions are shown the handle assembly instructions and in are shown the geometric details of the
pistol handle.
Fig. 21 – Details of the pistol handle
Handle type
Shaft diameter B
Length L
OH_45J6
6/0.24
45/1.77
Fig. 20 – Handle assembly instructions
1
Switch disconnector
7
Shaft alignment
2
Extended shaft
8
Legend plate
3
Terminal clamp
9
Selector handle
4
Fourth pole, N, PE-terminals
10
Handle knob
5
Auxiliary contact
11
Pistol handle
6
Terminal shroud
12
Conversion kit
