SiE33-102 Appendix
General Information 113

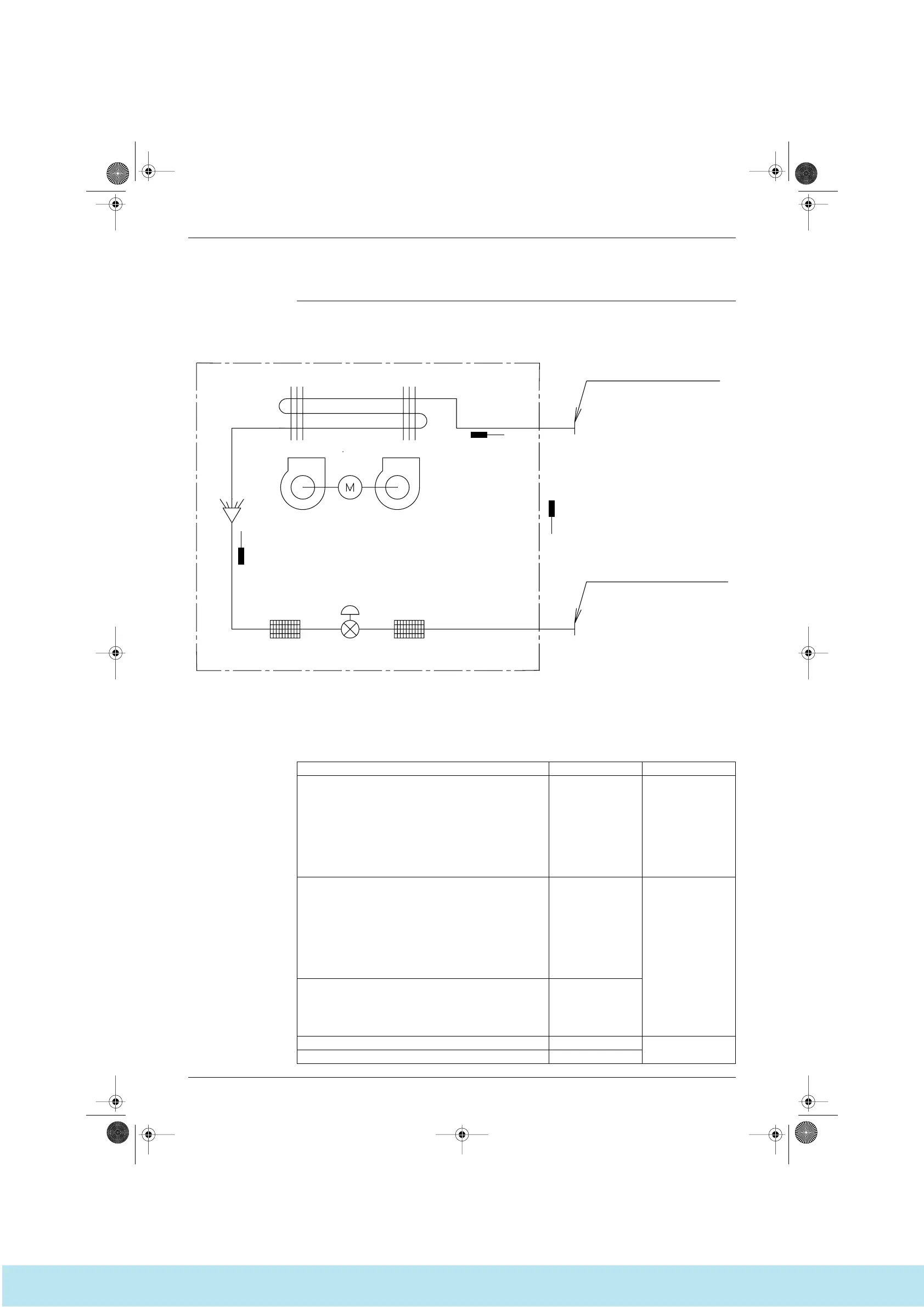

7.6 Piping System Diagrams
7.6.1 Indoor Unit
FXYC, FXYF, FXYK, FXYD, FXYS, FXYB, FXYM, FXYH, FXYA, FXYL, FXYLM
 Refrigerant pipe connection port diameters
(V1655)
Heat exchanger
Gas piping connection port
Liquid piping connection port
Fan
Electronic
expansion valve
Filter Filter
R2T
R3T
R1T
R1T : Thermister for suction air temp.
R2T : Thermister for liquid line temp.
R3T : Thermister for gas line temp.
(mm)
Model Gas Liquid
FXYC20K / 25K / 32K / 40K
FXYF25KB / 32KB / 40KB
FXYK25K / 32K / 40K
FXYD20KAVE / 25KAVE / 32KAVE / 40KAVE
FXYS20K / 25K / 32K / 40K
FXYB20K / 25K / 32K / 40K
FXYM40K / 50K
FXYH32K
FXYA25K / 32K / 40K
FXYL20KJ / 25KJ / 32KJ / 40KJ
FXYLM20KJ / 25KJ / 32KJ / 40KJ
φ12.7 φ6.4
FXYC50K / 63K / 80K
FXYF50KB / 63KB / 80KB
FXYK63K
FXYD50KAVE / 63KAVE
FXYS50K / 63K / 80K
FXYB50K / 63K / 80K
FXYM63K / 80K / 100K
FXYH63K
FXYA50K / 63K
FXYL50KJ / 63KJ
FXYLM50KJ / 63KJ
φ15.9
φ9.5
FXYC125K
FXYF100KB / 125KB
FXYS100 K / 125K
FXYB100K / 125K
FXYM125K
FXYH100K
φ19.1
FXYM200KJ φ25.4
φ12.7
FXYM250KJ φ28.6
Si33-102.book Page 113 Tuesday, June 26, 2001 3:18 PM
