SiE33-102 Field Wiring
Installation Manual 157

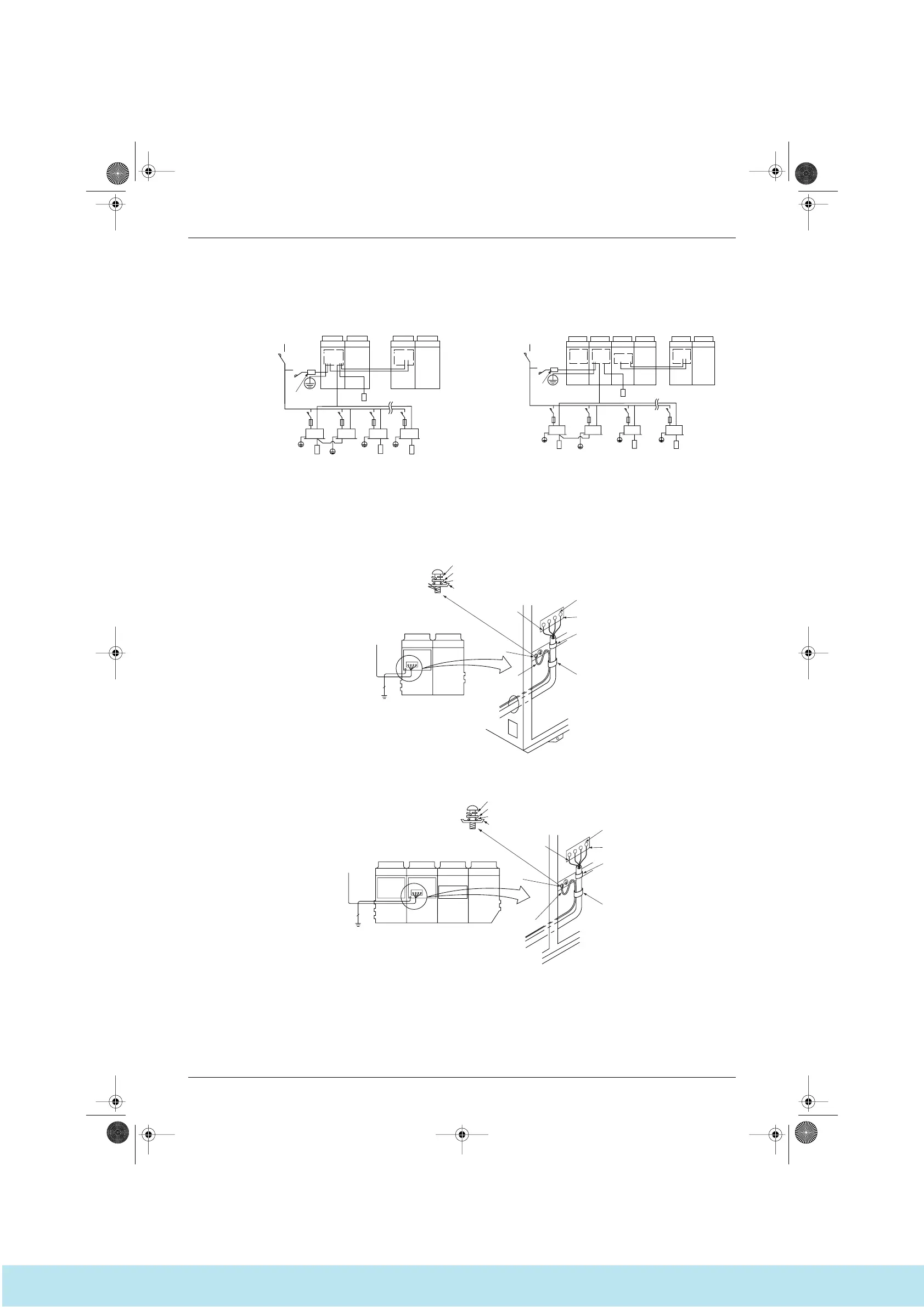

7.6 Examples
7.6.1 System Example
7.6.2 Field Line Connection
L1, L2, L3, N-phase of the power cord should be clamped to the safety catch using the included clamp
material.
The green and yellow striped wrapped wires should be used for grounding.
RXY8,10 RXE8,10
RSXY16,18,20
Field power supply
Main switch
Cool/Heat selector
Earth leak
detector
Earth leak detector
Remote
control
Fuse
Fuse
RXY16,20 RXE8,10
RSXY24,26,28,30
Field power supply
Main switch
Cool/Heat selector
Earth leak
detector
Earth leak detector
Remote
control
Fuse
Fuse
(V1855)
Field power
supply
Spring washer
Grounding
screw
Wiring
sleeve
Terminal board
Fix the power cord
with the included
clamp material to
the safety catch.
Clamp the grounding
wire with power supply
C cup washer
Flat washer
Earth wire
RXY8 , 10
Grounding
wire
RSXY16,18,20
Attach the insulating sleeve.
Field power supply
Grounding
wire
RXY16 , 20
RSXY24,26,28,30
Terminal board
Fix the power cord
with the included clamp
material to the safety catch.
Wiring sleeve
Wiring
sleeve
Grounding
screw
Clamp the grounding
wire with power supply
grou
Attach the insulating sleeve.
Spring washer
C cup washer
Flat washer
Earth wire
(V1856)
