Installation SiE33-102
24 General Information
Not
recommendable
but in case of
emergency

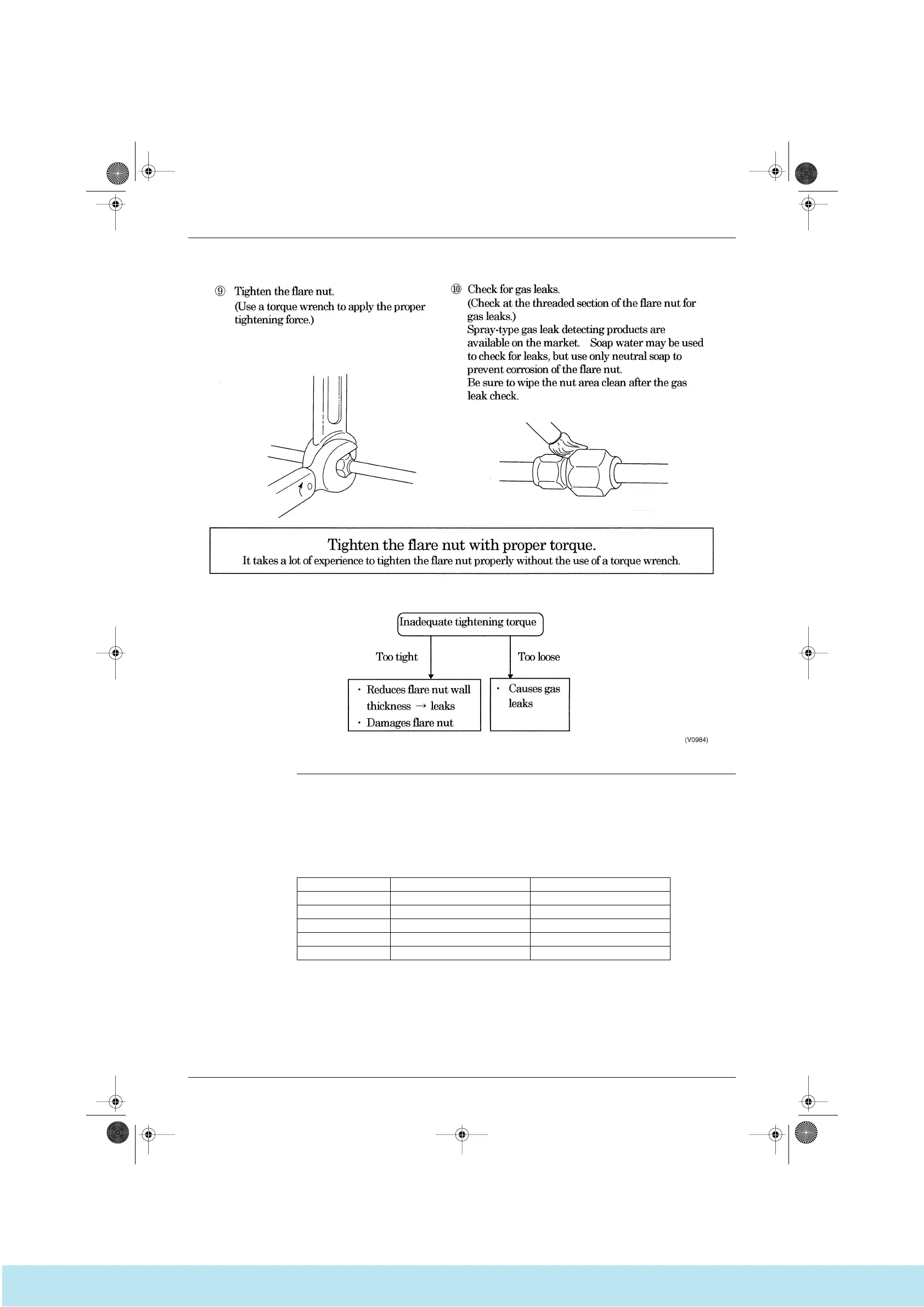

You must use a torque wrench but if you are obliged to install the unit without a torque wrench, you may
follow the installation method mentioned below.
After the work is finished, make sure to check that is no gas leak.
When you keep on tightening the flare nut with a spanner, there is a point where the tightening torque
suddenly increases. From that position, further tighten the flare nut the angle shown below:
Pipe size Further tightening angle Recommended arm length of tool
6.4 (1/4”) 60 to 90 degrees Approx. 150mm
9.5 (3/8”) 60 to 90 degrees Approx. 200mm
12.7 (1/2”) 30 to 60 degrees Approx. 250mm
15.9 (5/8”) 30 to 60 degrees Approx. 300mm
19.1 (3/4”) 20 to 35 degrees Approx. 450mm
Si33-102.book Page 24 Tuesday, June 26, 2001 3:18 PM
Все каталоги и инструкции здесь: http://splitoff.ru/tehn-doc.html
